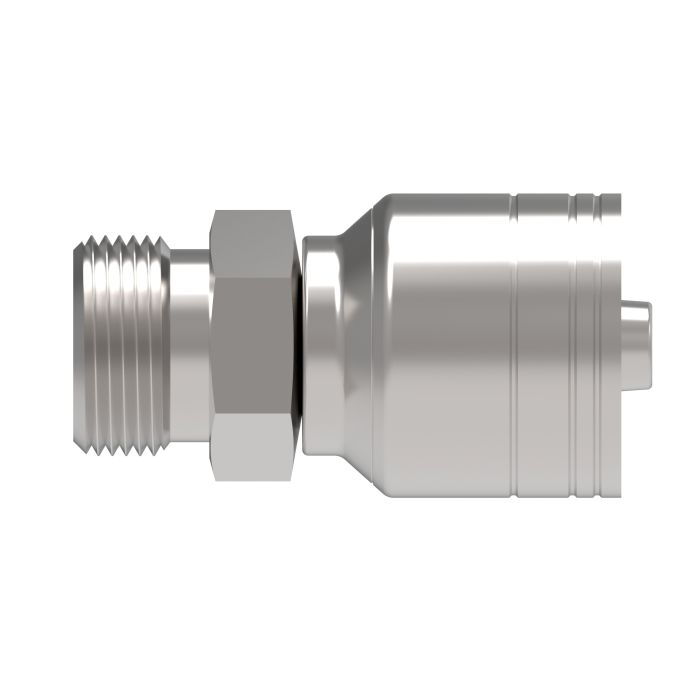

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M20 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -06 Hose, Straight

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulics this fitting supports the unique demands where shock hazards exist. The crimp fitting features a robust M20 x 1.5 male thread and a 24-degree flare that aligns with German DIN 3902 standards.

Engineered for compatibility with -06 hose sizes this steel crimp fitting incorporates a straight design that ensures efficient fluid flow in various industrial applications. Suitable for use with H277 or H435 hoses it does not require a mandrel enhancing its versatility.

The fitting's construction from durable steel ensures longevity and reliability under demanding conditions. The tube outer diameter is sized at 12 mm making it appropriate for various hydraulic setups.

This product is categorized under EAR99 for export control.

MPN: C1AN98

Supplier Part Number: 1A8EK6

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
25
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Size 1
22
End Type 1
Metric
End Type 2
Line/Hose/Tube
Hose Size
-06
Mandrel Required
No
Supplier Part Number
1A8EK6
Thread 1
M20 x 1.5
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AN98, Alternate Part Number MI-02723120, Alternate Part Number MINO-00015J81619
Tube O.D.
12
Product Weight
0.16 lbs

Related Documents

Similar Products

Model Number Thread 1 Tube O.D. Hose Size D Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -06 Hose, Straight

1A10EK6 TTC Steel DIN Heavy Crimp Fitting

M22 x 1.5

14

-06

27.3

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M24 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -08 Hose, Straight

1A12EK8 TTC Steel DIN Heavy Crimp Fitting

M24 x 1.5

16

-08

28.3

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Male German DIN 3902 24 deg Flare Heavy Duty, -10 Hose, Straight

1A16EK10 TTC Steel DIN Heavy Crimp Fitting

M30 x 2

20

-10

32.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Male German DIN 3902 24 deg Flare Heavy Duty, -12 Hose, Straight

1A20EK12 TTC Steel DIN Heavy Crimp Fitting

M36 x 2

25

-12

35.3

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M42 x 2 Male German DIN 3902 24 deg Flare Heavy Duty, -16 Hose, Straight

1A25EK16 TTC Steel DIN Heavy Crimp Fitting

M42 x 2

30

-16

37.9

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -04 Hose, Straight

1A5EK4 TTC Steel DIN Heavy Crimp Fitting

M16 x 1.5

8

-04

24.1

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -04 Hose, Straight

1A6EK4 TTC Steel DIN Heavy Crimp Fitting

M18 x 1.5

10

-04

23.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M20 x 1.5 Male German DIN 3902 24 deg Flare Heavy Duty, -06 Hose, Straight

1A8EK6 TTC Steel DIN Heavy Crimp Fitting

M20 x 1.5

12

-06

25

Product Questions & Answers (2)

Question by: Kent R on Mar 18, 2026, 11:38 AM
trying to replace a metric crimp end i busted, is this the straight M20 x 1.5 with the 24 degree DIN flare for a -06 hose?
Answer by: Customer Support on Mar 20, 2026, 6:14 AM
For a replacement match, you want the same thread, flare style, and hose size. This one is a straight steel crimp fitting with an M20 x 1.5 male thread and a German DIN 3902 24 degree flare, built for -06 hose and a 12 mm tube outside diameter.
Question by: Lee R on Apr 24, 2025, 12:45 PM
fitting says it works with H277 or H435 hose, does that mean it won't crimp onto other -06 hose types?
Answer by: Customer Support on Apr 26, 2025, 6:40 AM
For this fitting, H277 and H435 are the specified compatible hoses. Those are the hose types it's rated and intended to work with in -06 size. Using it with other hose types outside that list isn't something the product supports, so sticking to those two keeps you in spec.
