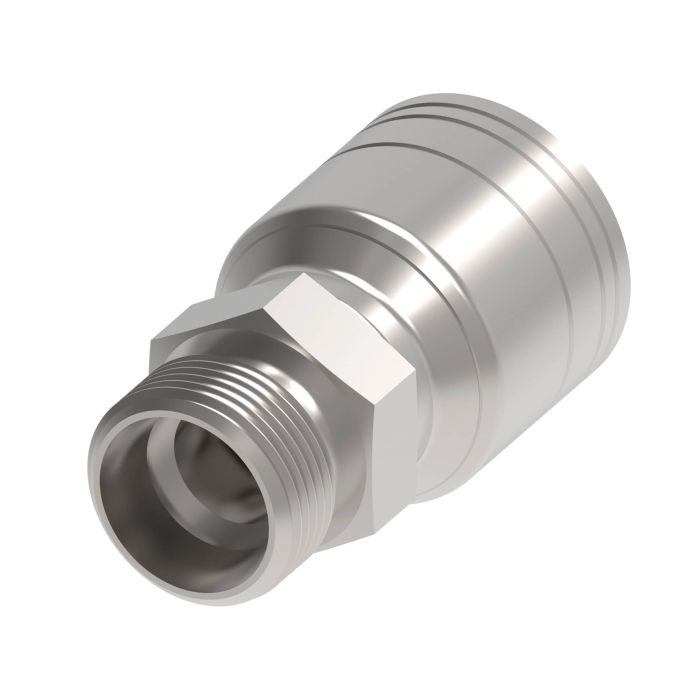

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

Ask A Question

Description & Features

The Aeroquip TTC Steel Crimp Fittings are engineered for general-purpose low and medium pressure hydraulics applications. They are designed to be compatible with -06 hoses. This crimp fitting features a metric M18 x 1.5 male end and fits hoses with an outer diameter of 12mm.

The fitting conforms to Male German DIN 3902 24-degree flare specifications ensuring reliable and consistent performance in hydraulic systems. Constructed with a high-strength steel braid it offers durability and robustness in various industrial settings.

This light-duty fitting requires no mandrel and does not need thread sealant. It can be torqued between 37-44 lb/ft for optimal securing. Suitable for use with H277 or H435 hoses particularly where shock hazards are present.

MPN: 1A10DK6

Supplier Part Number: 1A10DK6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.93 in
Compatible Hose ID
0.38 in
Compatible Tube OD
0.63 in
Connection Size 1
3/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male Metric
Connection Type 1
Hose
Connection Type 2
Male DIN Light 24 deg Cone
Construction Style
Crimp
Cut-Off Factor
0.93 in
d Dimensions
23.7 in
Dimension Standards
SAE J1176
Dimensions
1.93 in L x 1.07 in W x 1.07 in H
End Gender 1
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M18x1.5
Torque Rating
37 to 44 lb-ft
Tube OD
12 mm
Tube Outside Diameter
5/8 in
Tube Outside Diameter 1
5/8 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -08 Hose, Straight

1A12DK8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

26.3 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -10 Hose, Straight

1A16DK10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

26.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Male German DIN 3902 24 deg Flare Light Duty, -12 Hose, Straight

1A20DK12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

31.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A6DK4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

21.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A8DK4 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

04

22.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A8DK6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

26.7 in

Product Questions & Answers (1)

Question by: Floyd P on Feb 28, 2026, 8:21 AM
Will this fitting work on my tractor's hydraulic lines? They're about that size.
Answer by: Customer Support on Mar 1, 2026, 6:01 PM
It's designed for general purpose low and medium pressure hydraulic applications. If your tractor uses -06 hoses and M18 x 1.5 connections, it should be compatible. For shock hazard situations, using H277 or H435 hoses is recommended.
