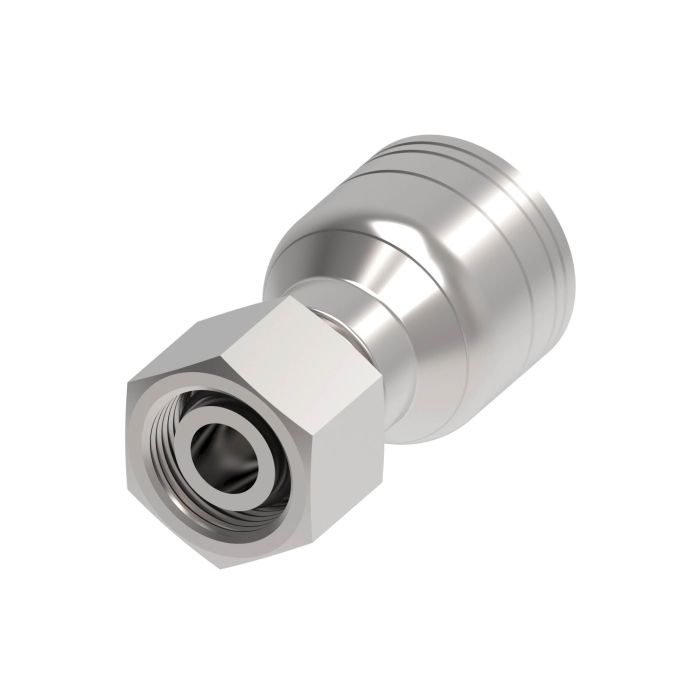

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

Ask A Question

Description & Features

The DANFOSS POWER SOLUTIONS (II LLC Aeroquip) TTC Steel Crimp Fitting is designed for general-purpose low and medium pressure hydraulics. Engineered to accommodate a -06 hose size with M18 x 1.5 female German DIN 3902 24deg; flare light duty swivel, this crimp fitting ensures reliable and secure connections.

Featuring a straight configuration, it is ideal for numerous industrial applications, eliminating the need for a mandrel. The fitting integrates seamlessly with H277 or H435 hoses where shock hazards exist, offering versatility and robustness.

With a torque rating of 37-44 LB/FT and a tube outer diameter of 12mm, the fitting provides precise and consistent performance. This Aeroquip TTC Steel Crimp Fitting proves superior for managing hydraulic connections in varied hydraulic systems.

MPN: C1AM77

Supplier Part Number: 1A10DL6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.02 in
Compatible Hose ID
0.38 in
Compatible Tube OD
0.63 in
Connection Size 1
3/8 in
Connection Size 2
5/8 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.02 in
d Dimensions
25.9 in
Dimension Standards
SAE J1176
Dimensions
2.02 in L x 1.07 in W x 1.07 in H
End Connection Torque
38 to 42 lb-ft
End Gender 1
Female
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
EC115, EC118, EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
Hex Size
0.87 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M18x1.5
Torque Rating
37 to 44 lb-ft
Tube OD
12 mm
Tube Outside Diameter
5/8 in
Tube Outside Diameter 1
5/8 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, Straight

1A20DL12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

32.3 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, Straight

1A12DL8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

28.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, Straight

1A16DL10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

29.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, Straight

1A25DL16 TTC Steel DIN Light Crimp Fitting

M36x2

28

16

33.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M52 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -24 Hose, Straight

1A40DL24 TTC Steel DIN Light Crimp Fitting

M52x2

42

24

40.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A5DL4 TTC Steel DIN Light Crimp Fitting

M12x1.5

6

04

24.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A6DL4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

22.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A8DL4 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

04

24.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

1A8DL6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

31.6 in

Product Questions & Answers (4)

Question by: Lance H on Apr 27, 2025, 6:21 AM
what do i torque these down to? putting some on my -06 hoses and just wanna get it right
Answer by: Customer Support on Apr 28, 2025, 10:46 AM
Tighten the fitting to a torque rating of 37 to 44 foot-pounds to ensure a proper connection.
Question by: Billy E on Oct 19, 2025, 1:16 PM
What kind of hydraulic applications is this fitting good for?
Answer by: Customer Support on Oct 21, 2025, 11:05 AM
It’s made for general-purpose hydraulic systems with low to medium pressure. You could use it with H277 or H435 hoses in places where there might be shock hazards.
Question by: Sheila W on Nov 8, 2025, 12:44 PM
got a -06 hose and need a straight swivel end, is this the one with the M18 x 1.5 female DIN 24 degree light duty flare?
Answer by: Customer Support on Nov 9, 2025, 4:39 PM
For a -06 hose, this fitting matches an M18 x 1.5 female German DIN 3902 24 degree flare in a light duty swivel, and it’s a straight configuration. It’s also listed with a 12 mm tube outer diameter for the DIN flare side.
Question by: Dale C on Feb 21, 2026, 9:20 AM
fitting says it works with H277 or H435 hose, does that mean it won't crimp onto other hose types?
Answer by: Customer Support on Feb 22, 2026, 12:05 PM
For general low and medium pressure hydraulic applications, this fitting is rated for standard use across compatible hose configurations. The H277 and H435 hose callout is specifically for situations where shock hazards are present. Those two hose types are the recommended choice in those conditions, not the only hose this fitting works with overall. Just make sure whatever hose you're running is a -06 size, since that's what this fitting is built around.
