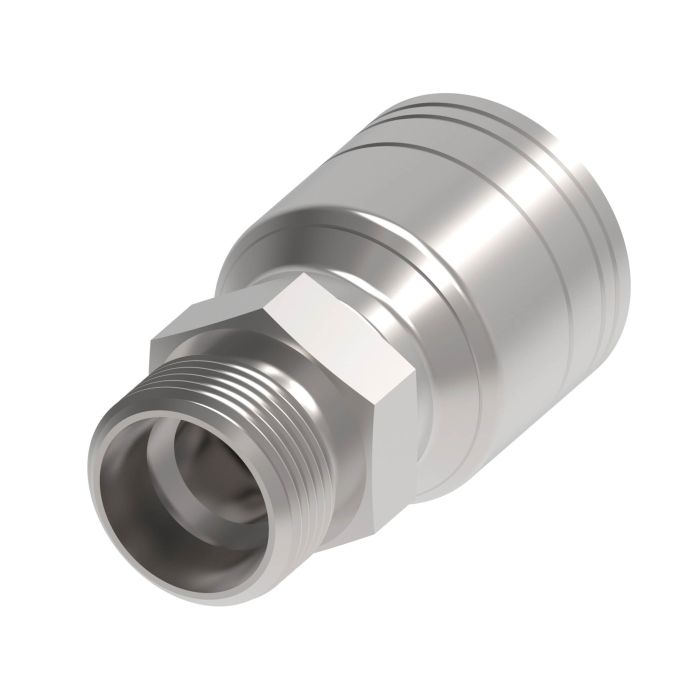

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -08 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics especially where shock hazards exist. Featuring an M22 x 1.5 male German DIN 3902 24-degree flare light duty fitting this crimp fitting supports -08 Hose configurations.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this fitting belongs to the Aeroquip TTC Steel Crimp Fittings model line. Suitable for use with H277 or H435 hoses it is produced to ensure compliance with industry standards.

The crimp fitting offers superior durability due to its steel construction and zinc coating which helps resist corrosion. No mandrel or thread sealant is required for installation making it straightforward to integrate into hydraulic systems. With a torque rating of 55-70 lb/ft and a tube O.D. of 15mm it adheres to precise specifications for reliable performance.

Supplier Part Number: 1A12DK8

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
26.30
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Size 1
0.75
End Size 2
0.50
End Type 1
Metric
End Type 2
Line/Hose/Tube
Hose Size
-08
Mandrel Required
No
Supplier Part Number
1A12DK8
Thread 1
M22 x 1.5
Thread Sealant
No
Torque Rating
55-70 LB/FT
Torque Rating
55-70 LB/FT
Alternate Part Numbers
Alternate Part Number C1AM92, Alternate Part Number MI-02723110, Alternate Part Number MINO-00015J81611
Tube O.D.
15
Product Weight
0.21 lbs

Related Documents

Similar Products

Model Number Thread 1 Tube O.D. Hose Size D Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A10DK6 TTC Steel DIN Light Crimp Fitting

M18 x 1.5

12

-06

23.7

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -08 Hose, Straight

1A12DK8 TTC Steel DIN Light Crimp Fitting

M22 x 1.5

15

-08

26.3

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -10 Hose, Straight

1A16DK10 TTC Steel DIN Light Crimp Fitting

M26 x 1.5

18

-10

26.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Male German DIN 3902 24 deg Flare Light Duty, -12 Hose, Straight

1A20DK12 TTC Steel DIN Light Crimp Fitting

M30 x 2

22

-12

31.8

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A6DK4 TTC Steel DIN Light Crimp Fitting

M14 x 1.5

8

-04

21.1

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A8DK4 TTC Steel DIN Light Crimp Fitting

M16 x 1.5

10

-04

22.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A8DK6 TTC Steel DIN Light Crimp Fitting

M16 x 1.5

10

-06

26.7

Product Questions & Answers (2)

Question by: Ronnie P on Sep 29, 2025, 4:51 PM
fitting says no mandrel or thread sealant needed, is that right for a metric flare like this, or do i need to do something extra to get a good seal?
Answer by: Customer Support on Oct 1, 2025, 6:58 AM
For a 24-degree flare connection like this one, the sealing happens at the flare face itself, so thread sealant would actually work against you. The M22 x 1.5 male thread mates with the DIN 3902 flare geometry to create a metal-to-metal seal without any additional compound. No mandrel is needed on the hose end either. Just make sure your crimp is done right and the fitting is torqued to spec, which runs 55 to 70 lb/ft for this fitting.
Question by: Hugh B on Apr 8, 2025, 6:36 PM
got a -08 hose on the bench, will this fitting crimp onto it and what thread is on the end?
Answer by: Customer Support on Apr 10, 2025, 6:51 AM
It is built for -08 hose and it’s a straight steel crimp fitting for 1 and 2 wire braid hose. The threaded end is M22 x 1.5 male, German DIN 3902 24 degree flare light duty.
