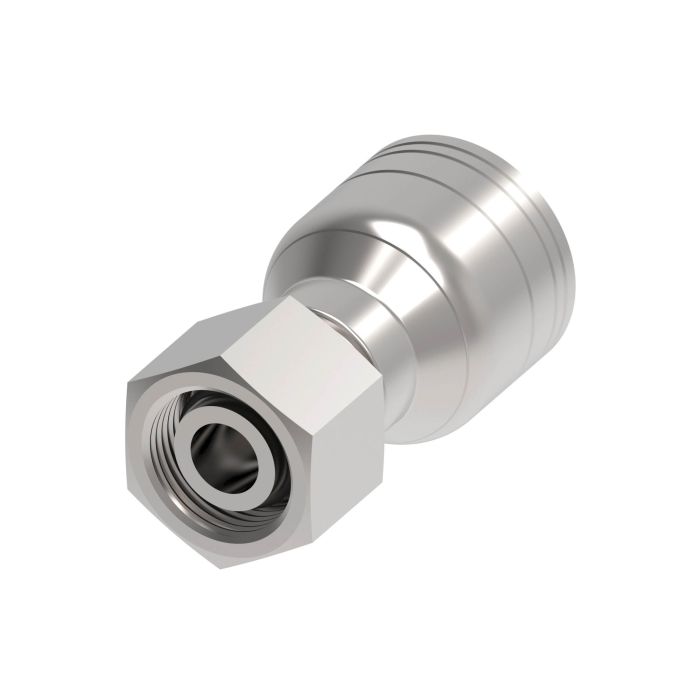

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general-purpose low and medium pressure hydraulic applications. This straight fitting features an M26 x 1.5 female German DIN 3902 24-degree flare light duty swivel connection, suitable for -10 hose sizes.

Specifically engineered by Danfoss Power Solutions (II LLC Aeroquip), it accommodates shock hazards when used with H277 or H435 hoses. The fitting offers reliable performance without the need for a mandrel or thread sealant and has a torque rating of 81-96 lb/ft.

The Aeroquip TTC Steel Crimp Fittings are built for efficiency and durability in various hydraulic setups. With an 18mm tube outer diameter, it conforms to metric standards and is ideal for diverse industrial applications.

MPN: C1AN21

Supplier Part Number: 1A16DL10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.33 in
Compatible Hose ID
0.62 in
Compatible Tube OD
0.7 in
Connection Size 1
5/8 in
Connection Size 2
1 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.17 in
d Dimensions
29.8 in
Dimension Standards
SAE J1176
Dimensions
2.33 in L x 1.39 in W x 1.39 in H
End Connection Torque
52 to 66 lb-ft
End Gender 1
Female
End Size 1
1 in
End Size 2
5/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
EC115, EC118, EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
Hex Size
1.26 in
Hose Dash Size
10
Inside Diameter
1/2 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M26x1.5
Torque Rating
81 to 96 lb-ft
Tube OD
18 mm
Tube Outside Diameter
0.708 in
Tube Outside Diameter 1
0.708 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, Straight

1A20DL12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

32.3 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

1A10DL6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

25.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, Straight

1A12DL8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

28.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, Straight

1A25DL16 TTC Steel DIN Light Crimp Fitting

M36x2

28

16

33.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M52 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -24 Hose, Straight

1A40DL24 TTC Steel DIN Light Crimp Fitting

M52x2

42

24

40.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A5DL4 TTC Steel DIN Light Crimp Fitting

M12x1.5

6

04

24.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A6DL4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

22.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A8DL4 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

04

24.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

1A8DL6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

31.6 in

Product Questions & Answers (4)

Question by: Norm J on Oct 2, 2025, 4:40 PM
how tight should I be torqueing these fittings down? got a m26 thread on em.
Answer by: Customer Support on Oct 4, 2025, 1:31 PM
Proper installation requires tightening the fitting to between 81 and 96 foot-pounds. Going outside that range might risk damaging the M26 x 1.5 threads or ruining the seal.
Question by: Brent B on Feb 13, 2026, 4:39 PM
Trying to replace a fitting on a -10 hose, what exactly are the ends on this one?
Answer by: Customer Support on Feb 14, 2026, 6:20 PM
On the hose side it is made for a -10 hose and it is a straight steel crimp fitting for 1 and 2 wire braid hose. The thread end is a metric female swivel with M26 x 1.5 threads, using the German DIN 3902 24 degree flare light duty style, and it is sized for 18 mm tube OD.
Question by: Judy C on May 14, 2025, 2:14 PM
Will this fitting hold up okay in a hydraulic system for a log splitter?
Answer by: Customer Support on May 16, 2025, 6:15 AM
It's designed for general-purpose low and medium pressure hydraulic applications, so it should work well for that as long as your log splitter operates within those pressure ranges. Just make sure your hose size is -10.
Question by: Harvey S on Nov 19, 2025, 6:01 PM
fitting says light duty swivel, does that mean it ain't gonna hold up in a high pressure setup, or is it fine for regular hydraulic work?
Answer by: Customer Support on Nov 21, 2025, 9:42 AM
Light duty in this context refers to the swivel connection style per the DIN 3902 spec, not the overall build quality of the fitting. It's rated for general purpose low and medium pressure hydraulic use, so it's well suited for standard hydraulic lines that don't involve extreme pressure spikes. Where you do need to watch yourself is shock hazard situations. If your system sees sudden pressure surges or impact loads, you'll want to pair this fitting with H277 or H435 hose to handle that safely.
