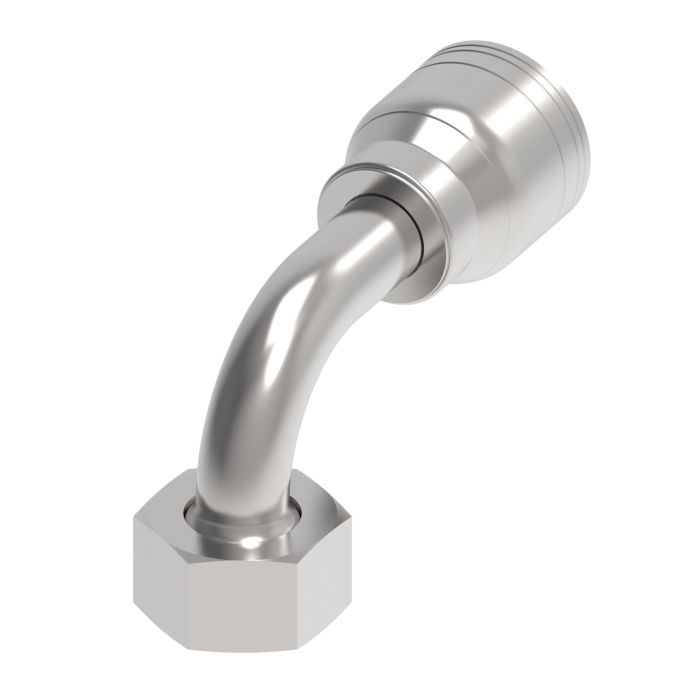

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is specifically designed for M26 x 1.5 Female German DIN 3902 24 Flare Light Duty Swivel applications with -10 Hose and a 90 Elbow configuration. Developed by Danfoss Power Solutions this fitting provides reliable low and medium-pressure hydraulic solutions particularly aimed at general-purpose applications.

Constructed from durable steel the fitting ensures secure and stable connections without requiring a mandrel. Its end connections include a metric M26 x 1.5 thread with an 18mm tube outer diameter on the first end and a respective line/hose/tube connection on the second end.

The fitting's torque rating is 81-96 LB/FT optimizing stabilization in scenarios where shock hazards exist such as when using H277 or H435 hoses. The female swivel offers a flexible and leak-resistant solution tailored to meet rigorous industry standards.

Its drop dimension measures 1.8500 making it accessible for various installation contexts without requiring thread sealant. The fitting height stands at 59 mm.

MPN: 1A16DLB10

Supplier Part Number: 1A16DLB10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.4 in
Compatible Hose ID
0.62 in
Compatible Tube OD
1 in
Connection Size 1
5/8 in
Connection Size 2
1 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
2.26 in
d Dimensions
53-1/2 in
Dimension Standards
SAE J1176
Dimensions
4.02 in L x 1.39 in W x 2.54 in H
Drop Dimensions
1.85 in
End Gender 1
Female
End Size 1
1 in
End Size 2
5/8 in
Finish
Protective Oil
Fitting Type
90 deg Elbow
For Use With
EC115, EC118, EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
h Dimensions
59 mm
Hex Size
1.26 in
Hose Dash Size
10
Inside Diameter
0.46 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M26x1.5
Torque Rating
81 to 96 lb-ft
Tube OD
18 mm
Tube Outside Diameter
1 in
Tube Outside Diameter 1
1 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

1A10DLB6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

35 in

39 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, 90 deg Elbow

1A12DLB8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

42.3 in

43 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, 90 deg Elbow

1A20DLB12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

64.8 in

54 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, 90 deg Elbow

1A25DLB16 TTC Steel DIN Light Crimp Fitting

M36x2

28

16

120 in

71 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

1A5DLB4 TTC Steel DIN Light Crimp Fitting

M12x1.5

6

04

26-1/2 in

26.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

1A6DLB4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

28-1/2 in

3.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

1A8DLB6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

32 in

35.5 mm
