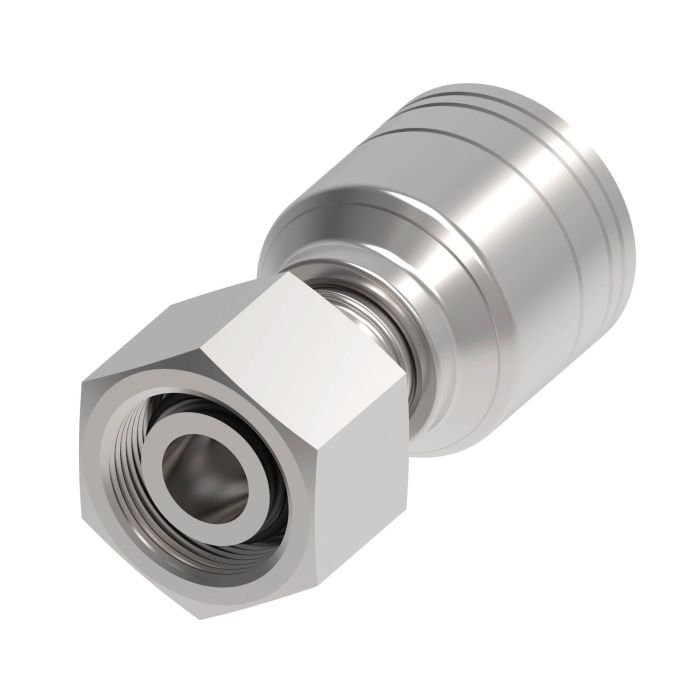

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, Straight

Ask A Question

Description & Features

Tailored for general purpose low and medium pressure hydraulics, the Aeroquip TTC Steel Crimp Fitting is engineered for use with H277 or H435 hoses where shock hazards exist. Featuring a precise M36 x 2 Female German DIN 3902 24-degree Flare Light Duty Swivel connection, this crimp fitting is designed for -16 hose applications ensuring a secure and reliable fit.

The durable steel construction of this fitting ensures long-lasting performance under rigorous conditions. The end type is designed for metric connections, catering to a wide range of industrial applications.

With a tube outer diameter of 28mm, there is no mandrel required for assembly. The fitting does not require thread sealant, simplifying installation and maintenance.

Manufactured by Danfoss Power Solutions, this fitting belongs to the Aeroquip TTC Steel Crimp Fittings product line, known for its reliability and high-quality standards.

MPN: C1AN49

Supplier Part Number: 1A25DL16

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
33.80
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
41
End Type 1
Metric
End Type 2
Line/Hose/Tube
Hose Size
-16
Mandrel Required
No
Supplier Part Number
1A25DL16
Thread 1
M36 x 2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AN49, Alternate Part Number MI-02719103, Alternate Part Number MINO-00015J81591
Tube O.D.
28
Product Weight
0.72 lbs

Related Documents

Similar Products

Model Number Thread 1 Tube O.D. Hose Size D Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, Straight

1A20DL12 TTC Steel DIN Light Crimp Fitting

M30 x 2

22

-12

32.3

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

1A10DL6 TTC Steel DIN Light Crimp Fitting

M18 x 1.5

12

-06

25.9

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, Straight

1A12DL8 TTC Steel DIN Light Crimp Fitting

M22 x 1.5

15

-08

28.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, Straight

1A16DL10 TTC Steel DIN Light Crimp Fitting

M26 x 1.5

18

-10

29.8

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, Straight

1A25DL16 TTC Steel DIN Light Crimp Fitting

M36 x 2

28

-16

33.8

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M52 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -24 Hose, Straight

1A40DL24 TTC Steel DIN Light Crimp Fitting

M52 x 2

42

-24

40.9

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A5DL4 TTC Steel DIN Light Crimp Fitting

M12 x 1.5

6

-04

24.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A6DL4 TTC Steel DIN Light Crimp Fitting

M14 x 1.5

8

-04

22.6

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

1A8DL4 TTC Steel DIN Light Crimp Fitting

M16 x 1.5

10

-04

24.9

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

1A8DL6 TTC Steel DIN Light Crimp Fitting

M16 x 1.5

10

-06

31.6

Product Questions & Answers (4)

Question by: Ronnie J on Nov 2, 2025, 3:07 PM
Got a rig that sees some hard pressure spikes. Can I run these TTC fittings on lines with shock hazards
Answer by: Customer Support on Nov 4, 2025, 3:03 PM
For systems experiencing shock hazards, you should actually use H277 or H435 instead. General purpose low and medium pressure hydraulics are the correct application for these specific Aeroquip steel crimp fittings.
Question by: Gary R on Jul 13, 2025, 12:11 PM
trying to swap out a fitting on a -16 hose, is this one the straight female swivel with M36 x 2 threads?
Answer by: Customer Support on Jul 15, 2025, 7:31 AM
Match three things: it is a straight steel crimp fitting for -16 hose, the female end is a German DIN 3902 24 degree flare light duty swivel, and the thread is M36 x 2. If those are what you are replacing, you are in the right ballpark.
Question by: Norm M on Sep 7, 2025, 1:29 PM
i've got -16 hose on the truck, is this the right crimp end for it or am i fixin to order the wrong thing
Answer by: Customer Support on Sep 9, 2025, 6:29 AM
The key callouts are right in the specs: it is a straight steel crimp fitting made for -16 hose, with an M36 x 2 female German DIN 3902 24 degree flare light duty swivel end. It is also called out for use with H277 or H435 hoses.
Question by: Frank E on Mar 27, 2025, 7:52 PM
fitting says no thread sealant needed - is that right? feels like something you'd wanna tape up anyway
Answer by: Customer Support on Mar 29, 2025, 11:18 AM
Correct, no thread sealant is required on this one. The M36 x 2 female DIN 3902 24-degree flare connection seals on the flare face itself, not the threads, so adding tape or sealant would actually be unnecessary and could interfere with the seating. Trust the flare geometry to do the work here.
