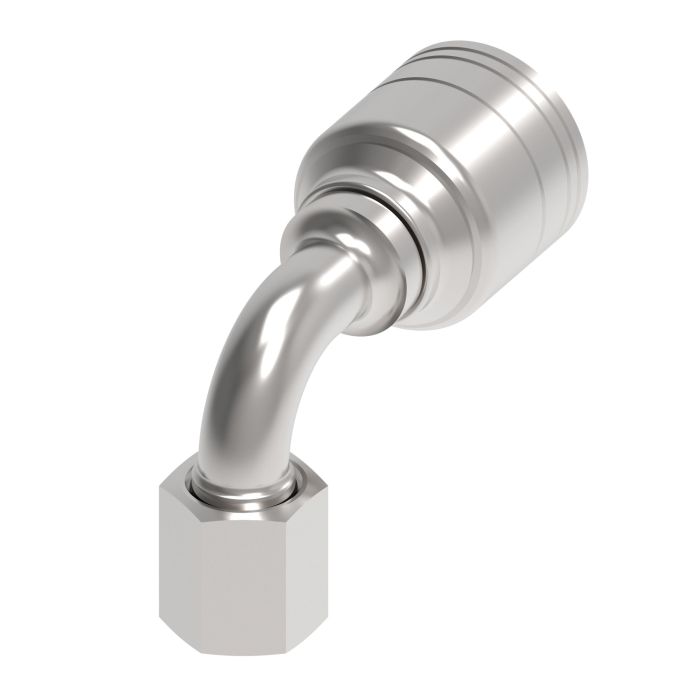

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

Ask A Question

Description & Features

This crimp fitting is designed for general-purpose low and medium-pressure hydraulics providing reliable performance where shock hazards exist. Featuring a 90-degree elbow and a -04 hose size it ensures precise connection and robust functionality in demanding applications.

Manufactured by Danfoss Power Solutions this fitting incorporates a M12 x 1.5 metric female thread conforming to German DIN 3902 standards with a 24-degree flare light-duty swivel for optimal compatibility.

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is constructed with high-quality steel ensuring durability and long-lasting service life. The fitting includes a drop dimension of 1.0400 and a tube O.D. of 6 tailored for efficient hydraulic system integration.

**ECCN:** EAR99

**Supplier Part Number:** 1A5DLB4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.96 in
Compatible Hose ID
1/4 in
Compatible Tube OD
0.31 in
Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.04 in
d Dimensions
26-1/2 in
Dimension Standards
SAE J1176
Dimensions
2.23 in L x 0.882 in W x 1.48 in H
Drop Dimensions
1.04 in
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Size 1
5/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
EC115, EC118, EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
h Dimensions
26.5 mm
Hex Size
0.55 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M12x1.5
Tube OD
6 mm
Tube Outside Diameter
0.31 in
Tube Outside Diameter 1
0.31 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

1A10DLB6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

35 in

39 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, 90 deg Elbow

1A12DLB8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

42.3 in

43 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, 90 deg Elbow

1A16DLB10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

53-1/2 in

59 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, 90 deg Elbow

1A20DLB12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

64.8 in

54 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, 90 deg Elbow

1A25DLB16 TTC Steel DIN Light Crimp Fitting

M36x2

28

16

120 in

71 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

1A6DLB4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

28-1/2 in

3.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

1A8DLB6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

32 in

35.5 mm

Product Questions & Answers (1)

Question by: Johnny S on Jan 9, 2026, 12:46 PM
trying to swap out an old crimp end, is this one the M12 x 1.5 female DIN 3902 with the 24 degree flare swivel, 90 elbow for a -04 hose?
Answer by: Customer Support on Jan 11, 2026, 10:25 AM
It matches that setup: M12 x 1.5 metric female thread to German DIN 3902, a 24 degree flare light duty swivel, and it’s a 90 degree elbow for -04 hose size.
