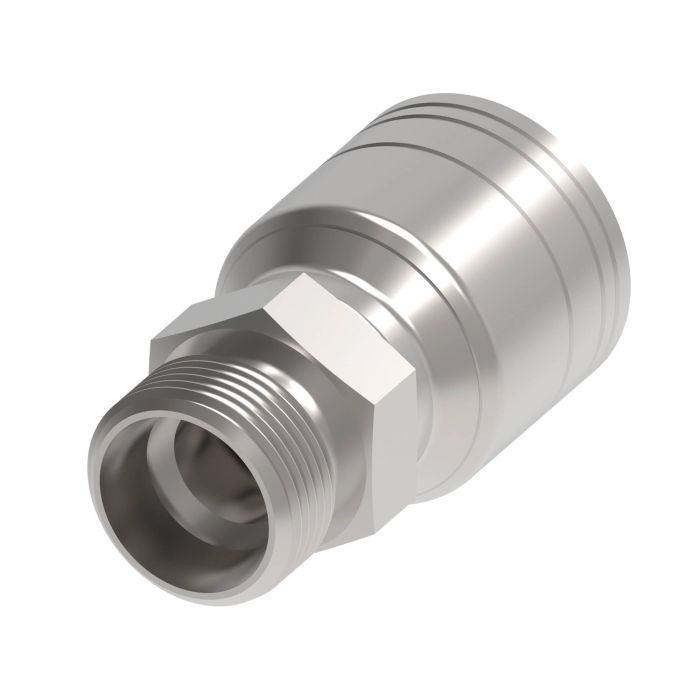

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics. Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this fitting is suitable for use with H277 or H435 hoses where shock hazards may exist.

Engineered with an M14 x 1.5 Male German DIN 3902 24-degree flare this straight fitting has a light-duty construction. It is specifically crafted to fit -04 hoses without the need for a mandrel ensuring ease of installation.

The tube has an outer diameter of 8 enhancing its compatibility with various hydraulic applications. This crimp fitting does not require thread sealant adding to its practical utility in diverse industrial setups.

MPN: 1A6DK4

Supplier Part Number: 1A6DK4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1-3/4 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Hose, Male Metric
Connection Type 1
Hose
Connection Type 2
Male DIN Light 24 deg Cone
Construction Style
Crimp
Cut-Off Factor
0.83 in
d Dimensions
21.1 in
Dimension Standards
SAE J1176
Dimensions
1.75 in L x 0.882 in W x 0.88 in H
End Connection Torque
19 to 23 lb-ft
End Gender 1
Male
End Size 1
14
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
0.55 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M14x1.5
Tube OD
8 mm
Tube Outside Diameter
8 mm

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A10DK6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

23.7 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -08 Hose, Straight

1A12DK8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

26.3 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -10 Hose, Straight

1A16DK10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

26.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Male German DIN 3902 24 deg Flare Light Duty, -12 Hose, Straight

1A20DK12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

31.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A8DK4 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

04

22.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A8DK6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

26.7 in

Product Questions & Answers (2)

Question by: Rod S on Feb 14, 2026, 8:29 AM
Will this fitting hold up okay in a hydraulic system that sees medium pressure use?
Answer by: Customer Support on Feb 15, 2026, 5:52 PM
Designed for general purpose low and medium pressure hydraulics, this fitting is suitable for use in systems where those pressure levels are standard.
Question by: Terry H on Jun 19, 2025, 8:09 AM
does this fitting work without needing a mandrel for the -04 hose, or do I gotta have special tooling on hand?
Answer by: Customer Support on Jun 20, 2025, 11:23 AM
No mandrel is needed for installation on -04 hose, which keeps the process straightforward and cuts down on the extra tooling you'd otherwise have to track down. Just use standard crimping equipment and you're good to go.
