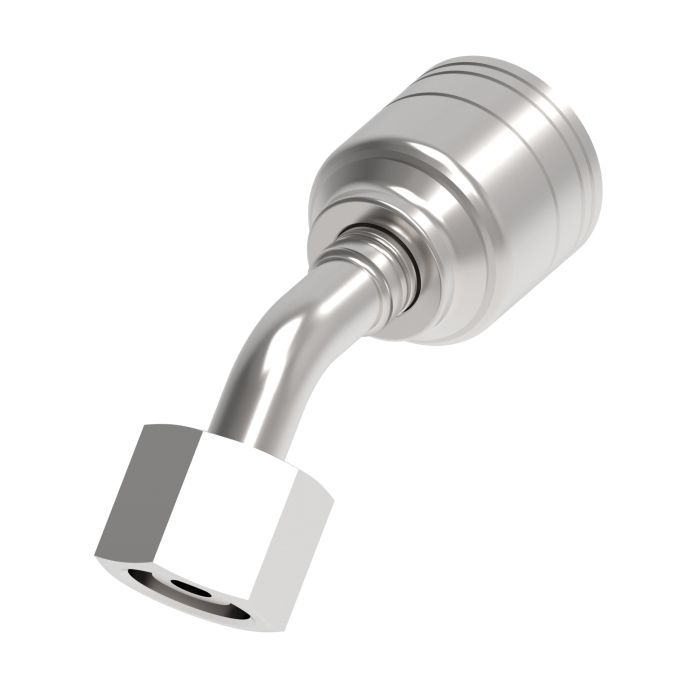

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

The DANFOSS Power Solutions (II LLC Aeroquip) Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is precisely engineered for general purpose low and medium pressure hydraulics. Designed with an M14 x 1.5 Female German DIN 3902 24-degree flare light duty swivel it ensures reliable connections in applications where shock hazards exist.

This model features a 45-degree elbow with -04 Hose compatibility facilitating ease of installation and flexibility in tight spaces. The fitting accommodates 0.375 and 0.25 end sizes with a metric end type and a Line/Hose/Tube end type providing a secure and efficient connection.

Constructed to meet stringent industry standards it supports torque ratings between 19-23 LB/FT and does not require a mandrel. The drop dimension of this fitting is 0.6900 and it has a tube O.D. of 8 mm.

MPN: 1A6DLA4

Supplier Part Number: 1A6DLA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
1/4 in
Compatible Tube OD
0.38 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.54 in
d Dimensions
39 in
Dimension Standards
SAE J1176
Dimensions
2.79 in L x 0.882 in W x 1.46 in H
Drop Dimensions
0.69 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
3/8 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
EC115, EC118,EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
h Dimensions
17.5 mm
Hex Size
0.67 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M14x1.5
Torque Rating
19 to 23 lb-ft
Tube OD
8 mm
Tube Outside Diameter
0.38 in
Tube Outside Diameter 1
3/8 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, 45 deg Elbow

1A16DLA10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

59 in

27.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 45 deg Elbow

1A10DLA6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

44-1/2 in

20.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, 45 deg Elbow

1A12DLA8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

52 in

21.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 45 deg Elbow

1A8DLA6 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

06

41-1/2 in

19 mm
