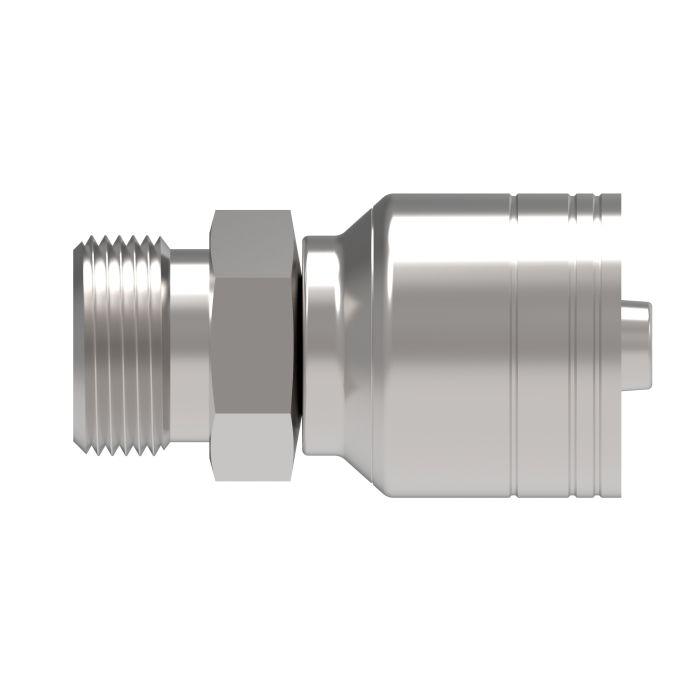

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics. This fitting features a 24 flare light duty design and a -04 hose compatibility. It has a male end with a 17mm size and a metric M16 x 1.5 thread.

With an end connection for hoses it ensures a secure and reliable connection under various hydraulic applications. This fitting does not require a mandrel simplifying the installation process.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) it meets German DIN 3902 standards ensuring compliance and reliability in demanding conditions. The product is part of the Aeroquip TTC Steel Crimp Fittings range renowned for durability and consistent performance.

Supplier Part Number: 1A8DK4

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.81 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/2 in	Connection Type Hose, Male Metric	Connection Type 1 Hose	Connection Type 2 Male DIN Light 24 deg Cone	Construction Style Crimp	Cut-Off Factor 0.89 in	d Dimensions 22.6 in	Dimension Standards SAE J1176	Dimensions 1.81 in L x 0.882 in W x 0.88 in H	End Connection Torque 33 to 40 lb-ft	End Gender 1 Male	End Size 1 17 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses	Hex Size 0.67 in	Hose Dash Size 04	Inside Diameter 0.17 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size M16x1.5	Tube OD 10 mm	Tube Outside Diameter 10 mm

Similar Products

Model Number	Thread Size	Tube O.D.	Hose Dash Size	d Dimensions
1A10DK6 TTC Steel DIN Light Crimp Fitting	M18x1.5	12	06	23.7 in
1A12DK8 TTC Steel DIN Light Crimp Fitting	M22x1.5	15	08	26.3 in
1A16DK10 TTC Steel DIN Light Crimp Fitting	M26x1.5	18	10	26.6 in
1A20DK12 TTC Steel DIN Light Crimp Fitting	M30x2	22	12	31.8 in
1A6DK4 TTC Steel DIN Light Crimp Fitting	M14x1.5	8	04	21.1 in
1A8DK6 TTC Steel DIN Light Crimp Fitting	M16x1.5	10	06	26.7 in
