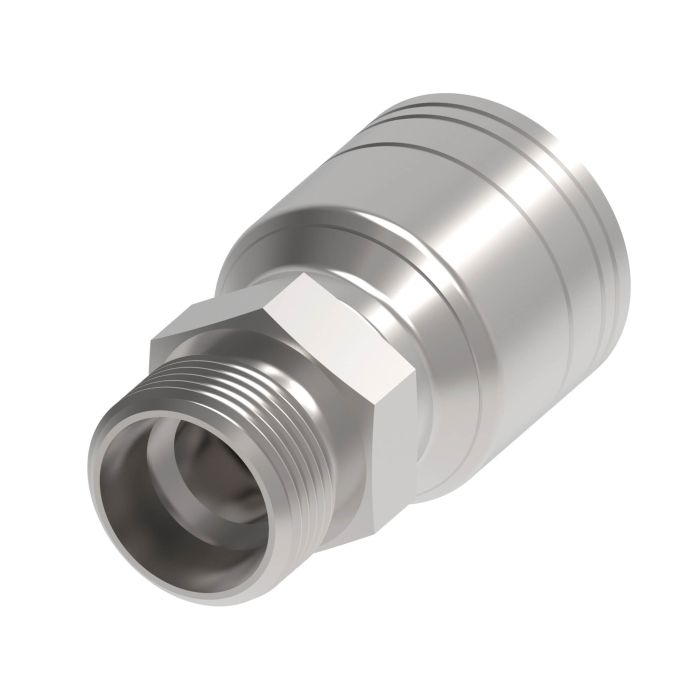

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting boasts a robust design ideal for general purpose low and medium pressure hydraulics. Enduring M16 x 1.5 Male German DIN 3902 24-degree flare construction ensures dependable connections in demanding environments.

This fitting supports -06 Hose size and features a metric end type making it suitable for versatile industrial applications. With a torque rating of 33-40 LB/FT it meets stringent performance standards.

Designed by Danfoss Power Solutions (II LLC Aeroquip) it provides optimal compatibility with H277 or H435 hoses especially where shock hazards exist. As a light-duty component it integrates seamlessly into hydraulic systems without the need for a mandrel.

Enhance operational efficiency with this precisely engineered crimp fitting complete with a 10mm tube O.D. and reliable threading.

Supplier Part Number: 1A8DK6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.05 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Hose, Male Metric
Connection Type 1
Hose
Connection Type 2
Male DIN Light 24 deg Cone
Construction Style
Crimp
Cut-Off Factor
1.05 in
d Dimensions
26.7 in
Dimension Standards
SAE J1176
Dimensions
2.05 in L x 1.067 in W x 1.06 in H
End Connection Torque
33 to 40 lb-ft
End Gender 1
Male
End Size 1
17 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
0.67 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M16x1.5
Torque Rating
33 to 40 lb-ft
Tube OD
10 mm
Tube Outside Diameter
10 mm

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -06 Hose, Straight

1A10DK6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

23.7 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -08 Hose, Straight

1A12DK8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

26.3 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -10 Hose, Straight

1A16DK10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

26.6 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Male German DIN 3902 24 deg Flare Light Duty, -12 Hose, Straight

1A20DK12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

31.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A6DK4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

21.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Male German DIN 3902 24 deg Flare Light Duty, -04 Hose, Straight

1A8DK4 TTC Steel DIN Light Crimp Fitting

M16x1.5

10

04

22.6 in

Product Questions & Answers (2)

Question by: Curt F on Mar 8, 2026, 5:45 PM
trying to swap a fitting on a -06 hose, is this one the straight male M16 x 1.5 DIN 24 degree flare style?
Answer by: Customer Support on Mar 9, 2026, 9:10 PM
For a -06 hose, this is a straight steel crimp fitting with an M16 x 1.5 male German DIN 3902 24 degree flare end, and it’s called out with a 10 mm tube O.D. on the flare side.
Question by: Gene B on Feb 23, 2026, 11:23 AM
what hose size does this fitting work with, and does it need a mandrel to crimp?
Answer by: Customer Support on Feb 25, 2026, 11:13 AM
For -06 hose, and no mandrel is required during installation. That makes the process a fair bit simpler on the shop floor when you're working through a stack of fittings. It's rated for 1 and 2 wire braid hose and pairs up with H277 or H435 hose, particularly in applications where shock hazards are a concern.
