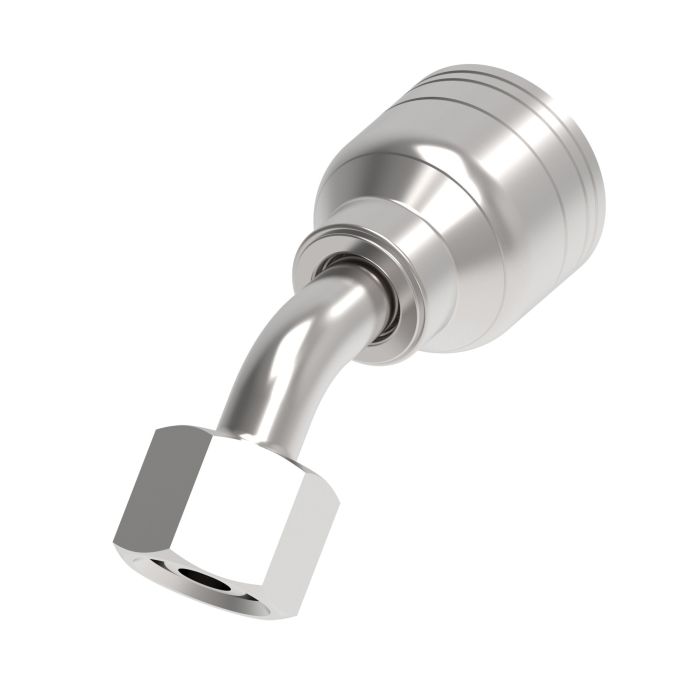

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Aeroquip TTC Steel Crimp Fitting is designed for general-purpose low and medium pressure hydraulics offering reliability and durability. Featuring an M16 x 1.5 Female German DIN 3902 24 Flare Light Duty Swivel and a -06 Hose this 45 Elbow fitting is compatible with H277 or H435 hoses which are ideal where shock hazards exist.

The fitting has a 0.7500 drop dimension and a 33-40 LB/FT torque rating ensuring secure connections and optimal performance. The Aeroquip TTC Steel Crimp Fittings are built by Danfoss Power Solutions reflecting superior quality and engineering.

Specifically tailored for use in industrial hydraulic systems the fitting supports a female gender end with a metric thread type. The product is also readily provided in a compact form factor with a 19 mm height and a Tube O.D. of 10 mm.

MPN: 1A8DLA6

Supplier Part Number: 1A8DLA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.63 in
Compatible Hose ID
0.38 in
Compatible Tube OD
1/2 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.63 in
d Dimensions
41-1/2 in
Dimension Standards
SAE J1176
Dimensions
3.82 in L x 1.067 in W x 2.47 in H
Drop Dimensions
3/4 in
End Connection Torque
37 to 44 lb-ft
End Gender 1
Female
End Size 1
1/2 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
EC115, EC118,EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
h Dimensions
19 mm
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M16x1.5
Torque Rating
33 to 40 lb-ft
Tube OD
10 mm
Tube Outside Diameter
1/2 in
Tube Outside Diameter 1
1/2 in

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, 45 deg Elbow

1A16DLA10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

59 in

27.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 45 deg Elbow

1A10DLA6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

44-1/2 in

20.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, 45 deg Elbow

1A12DLA8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

52 in

21.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 45 deg Elbow

1A6DLA4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

39 in

17.5 mm

Product Questions & Answers (3)

Question by: Neil B on Sep 2, 2025, 3:02 PM
trying to swap out a crimp end on a -06 hose. is this the 45 elbow with the M16 x 1.5 female swivel and the 24 degree DIN light flare?
Answer by: Customer Support on Sep 4, 2025, 8:15 AM
You are looking at a -06 hose crimp fitting with a 45 degree elbow and an M16 x 1.5 female German DIN 3902 24 degree flare light duty swivel end. It also calls out a 10 mm tube O.D. on the DIN flare side.
Question by: Stan S on Jul 20, 2025, 9:49 AM
what hose size does this fitting work with, and is it gonna hold up in a system that sees some shock loading?
Answer by: Customer Support on Jul 22, 2025, 6:11 AM
Sized for -06 hose, and it's rated for use with H277 or H435 hose specifically in applications where shock hazards are a concern. Those hose types are the recommended pairing when your system sees pressure spikes or vibration. The fitting itself covers general-purpose low and medium pressure hydraulic work, so as long as you're in that range and running the right hose, you're set up properly.
Question by: Steve C on Dec 11, 2025, 2:19 PM
Is this here fitting good for somethin' like a hydraulic lift on a trailer?
Answer by: Customer Support on Dec 13, 2025, 7:14 AM
For general-purpose, low to medium pressure hydraulic systems, this Aeroquip TTC fitting should do the trick. Just make sure your setup matches the fitting's specifications for hose size and thread type.
