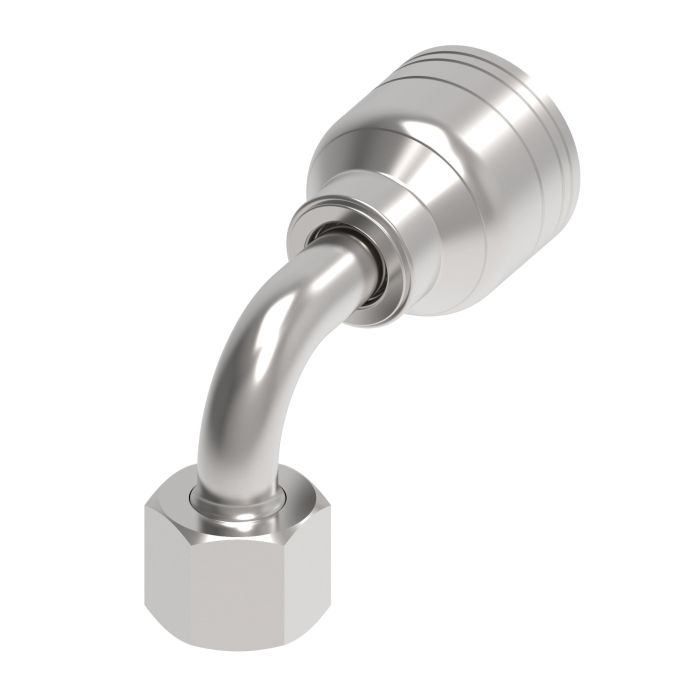

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Aeroquip Matchmate TTC Hose Fitting Zinc from Danfoss Power Solutions offers exceptional reliability for general purpose low and medium pressure hydraulics. Designed with a 90-degree elbow this fitting is ideal for use where shock hazards exist such as in H277 or H435 applications.

Featuring a Female German DIN 3902 24-degree flare light duty swivel it ensures a secure connection with a -06 hose. The fittings zinc construction provides durability and resistance to corrosion.

Measuring a drop dimension of 1.3200 and a height of 35.5 mm it guarantees a precise fit. The M16 x 1.5 metric thread does not require a thread sealant ensuring ease of assembly.

The use of high-quality materials and precision engineering make this product suitable for various industrial hydraulic setups. Its 19 mm end size along with the 10 mm tube O.D. further underscores its applicability in demanding environments.

MPN EAR99

Supplier Part Number 1A8DLB6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.3 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.32 in
d Dimensions
32 in
Dimension Standards
SAE J1176
Dimensions
2.67 in L x 1.067 in W x 1.85 in H
Drop Dimensions
1.32 in
End Connection Torque
37 to 44 lb-ft
End Gender 1
Female
End Size 1
19 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
EC115, EC118, EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
h Dimensions
35.5 mm
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M16x1.5
Tube OD
10 mm
Tube Outside Diameter
10 mm

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, 90 deg Elbow

1A10DLB6 TTC Steel DIN Light Crimp Fitting

M18x1.5

12

06

35 in

39 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -08 Hose, 90 deg Elbow

1A12DLB8 TTC Steel DIN Light Crimp Fitting

M22x1.5

15

08

42.3 in

43 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M26 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -10 Hose, 90 deg Elbow

1A16DLB10 TTC Steel DIN Light Crimp Fitting

M26x1.5

18

10

53-1/2 in

59 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M30 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -12 Hose, 90 deg Elbow

1A20DLB12 TTC Steel DIN Light Crimp Fitting

M30x2

22

12

64.8 in

54 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M36 x 2 Female German DIN 3902 24 deg Flare Light Duty Swivel, -16 Hose, 90 deg Elbow

1A25DLB16 TTC Steel DIN Light Crimp Fitting

M36x2

28

16

120 in

71 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

1A5DLB4 TTC Steel DIN Light Crimp Fitting

M12x1.5

6

04

26-1/2 in

26.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, 90 deg Elbow

1A6DLB4 TTC Steel DIN Light Crimp Fitting

M14x1.5

8

04

28-1/2 in

3.5 mm

Product Questions & Answers (2)

Question by: Wade A on Feb 26, 2026, 8:54 AM
Will this fitting hold up for connecting a hydraulic line on my tractor? It sees pretty regular use.
Answer by: Customer Support on Feb 28, 2026, 6:43 AM
It's designed for general-purpose, low to medium pressure hydraulic applications, so it should be suitable for many tractor hydraulic lines. Its zinc construction also offers good corrosion resistance.
Question by: Phil D on Nov 10, 2025, 9:13 PM
trying to swap out an old elbow fitting, is this one the M16 x 1.5 female DIN 24 degree flare swivel and for a -06 hose?
Answer by: Customer Support on Nov 12, 2025, 8:40 AM
It matches those callouts: M16 x 1.5 metric female thread with a German DIN 3902 24 degree flare light duty swivel end, and it’s built to crimp onto a -06 hose. It’s also a 90 degree elbow, with a 19 mm end size and 10 mm tube O.D. noted for the DIN flare side.
