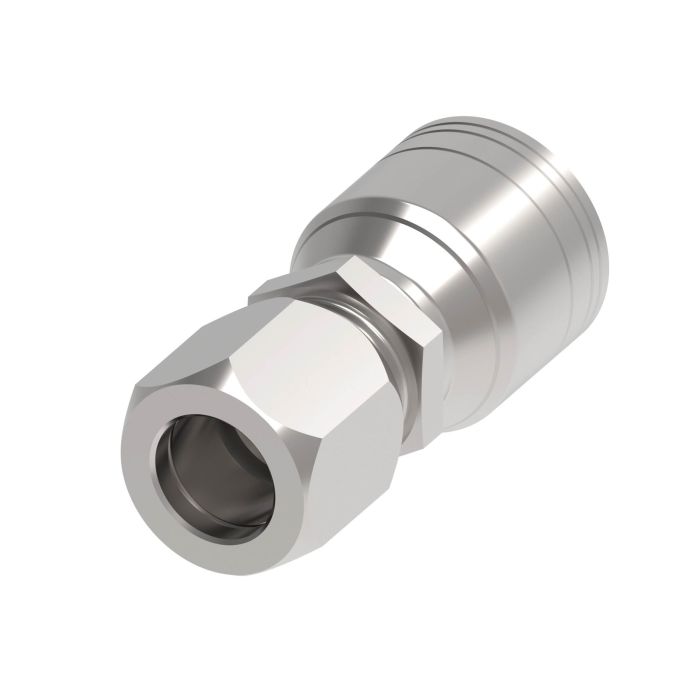

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-20 Flareless Tube Rigid Ermeto 7000 Series, -04 Hose, Straight

Ask A Question

Description & Features

This crimp fitting by Danfoss Power Solutions (II LLC Aeroquip) is designed for general purpose low and medium pressure hydraulics applications. It is compatible with H277 or H435 hoses particularly where shock hazards are a concern. This fitting is constructed for use with 1/2-20 flareless tube connections and features a straight configuration.

The fitting is part of the Aeroquip TTC series known for its durable steel construction and reliable performance in demanding environments. It is suitable for applications requiring a robust connection solution between hoses and tube lines emphasizing functional efficiency and safety.

Designed to meet the demanding standards of hydraulic systems this fitting ensures secure and leak-free connections. It does not require a mandrel for installation streamlining the setup process. The hex size of 0.56 and hose size of -04 further align with industry specifications ensuring compatibility and ease of use.

Supplier Part Number: 1AA5MT4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.58 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Female Flareless Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Flareless Tube Ermeto
Construction Style
Crimp
Cut-Off Factor
0.8 in
Dimension Standards
SAE J1176
Dimensions
1.58 in L
End Gender 1
Female
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
9/16 x 5/8 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size a Dimensions Cut-Off Factor Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Flareless Tube Rigid Ermeto 7000 Series, -06 Hose, Straight

1AA4MT6 TTC Steel Ermeto Crimp Fitting

7/16-20

06

1.81 in

0.97 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-20 Flareless Tube Rigid Ermeto 7000 Series, -06 Hose, Straight

1AA5MT6 TTC Steel Ermeto Crimp Fitting

1/2-20

06

1.81 in

0.97 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Flareless Tube Rigid Ermeto 7000 Series, -06 Hose, Straight

1AA6MT6 TTC Steel Ermeto Crimp Fitting

9/16-18

06

1.82 in

0.99 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Flareless Tube Rigid Ermeto 7000 Series, -08 Hose, Straight

1AA8MT8 TTC Steel Ermeto Crimp Fitting

3/4-16

08

2.15 in

1.16 in

Product Questions & Answers (1)

Question by: Keith H on Aug 16, 2025, 11:51 AM
Running -04 hose on a low pressure hydraulic setup and need something that'll connect to a 1/2-20 flareless tube without a bunch of fuss. This the right fitting for that?
Answer by: Customer Support on Aug 18, 2025, 8:22 AM
For a -04 hose connecting to a 1/2-20 flareless tube, this is a solid match. It uses a straight configuration with an Ermeto 7000 series flareless tube end, so it seats securely without requiring a flared connection. The TTC series is rated for general purpose low and medium pressure hydraulic work, which fits right in line with what you're describing. One thing worth knowing is that if your system is subject to shock loads or pressure spikes, pairing it with H277 or H435 hose is the recommended approach for that application.
