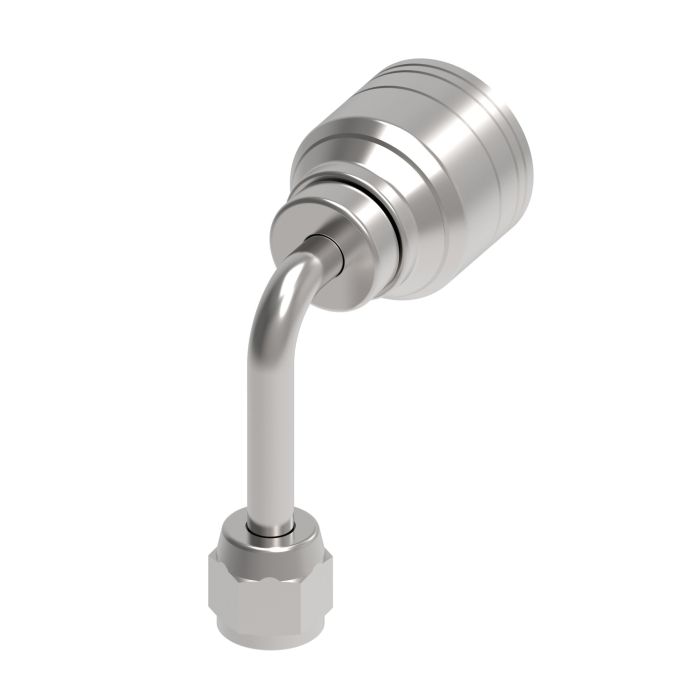

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -08 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting 7/8-14 Female JIC 37 deg Flare Swivel -08 Hose Long 90 deg Elbow is designed for general purpose low and medium pressure hydraulics providing reliability and efficiency in environments that encounter shock hazards.

This fitting features a 7/8-14 thread size a drop dimension of 2.5700 inches and a -08 hose size making it suitable for a variety of hydraulic applications. The female JIC 37 degree flare swivel end ensures compatibility with a range of hose types.

With no need for a mandrel or thread sealant installation and maintenance are simplified reducing downtime and costs. The steel construction enhances durability ensuring long-lasting performance even in demanding conditions.

End Type 1: SAE 37 End Type 2: Line/Hose/Tube

Supplier Part Number: 1AA10FJC8

MPN: C1AP21

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.62 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.61 in
d Dimensions
1.61 in
Dimension Standards
SAE J1176
Dimensions
2.78 in L x 1.22 in W x 2.57 in H
Drop Dimensions
2.57 in
End Connection Torque
57 to 62 lb-ft
End Gender 1
Female
End Size 1
7/8 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
2.57 in
Hex Size
1 x 1 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, Long 90 deg Elbow

1AA10FJC10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.54 in

2.57 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, Long 90 deg Elbow

1AA12FJC12 TTC Steel JIC Crimp Fitting

1-1/16-12

12

2.17 in

3.7 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, Long 90 deg Elbow

1AA16FJC16 TTC Steel JIC Crimp Fitting

1-5/16-12

16

2.2 in

4.58 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -04 Hose, Long 90 deg Elbow

1AA6FJC4 TTC Steel JIC Crimp Fitting

9/16-18

04

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Long 90 deg Elbow

1AA6FJC6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.23 in

2.18 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Long 90 deg Elbow

1AA8FJC8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.54 in

2.45 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Long 90 deg Elbow

1AA4FJC4 TTC Steel JIC Crimp Fitting

7/16-20

04

0.92 in

1.8 in

Product Questions & Answers (3)

Question by: Scott C on Feb 28, 2026, 1:36 PM
i got -08 hose on the truck, does this elbow crimp end match up with a 7/8-14 JIC fitting or am i mixing stuff up
Answer by: Customer Support on Mar 2, 2026, 6:16 AM
You want the two key callouts to line up: it’s a -08 hose crimp fitting, and the swivel end is a 7/8-14 Female JIC 37 degree flare (SAE 37). If your mating connection is a JIC 37 degree male in 7/8-14, that’s the match this fitting is built for.
Question by: Bobby P on Nov 11, 2025, 11:34 AM
What kind of hydraulic jobs is this fitting really good for?
Answer by: Customer Support on Nov 13, 2025, 6:19 AM
This fitting works best for general hydraulic systems with low to medium pressure requirements. It's also recommended to use H277 or H435 hoses when there's a chance of shocks or vibrations.
Question by: Rod T on Apr 16, 2025, 8:40 PM
fitting says it works for general purpose hydraulics, but we got some shock hazard situations on this machine. that gonna be a problem?
Answer by: Customer Support on Apr 18, 2025, 1:40 PM
For shock hazard applications, this fitting is not the right call. The product is specifically rated for general purpose low and medium pressure hydraulics, and the specs call out that H277 or H435 hose should be used wherever shock hazards are present. Running this fitting in a shock environment is outside what it's built for, so you'd want to source a fitting matched to one of those hose lines instead.
