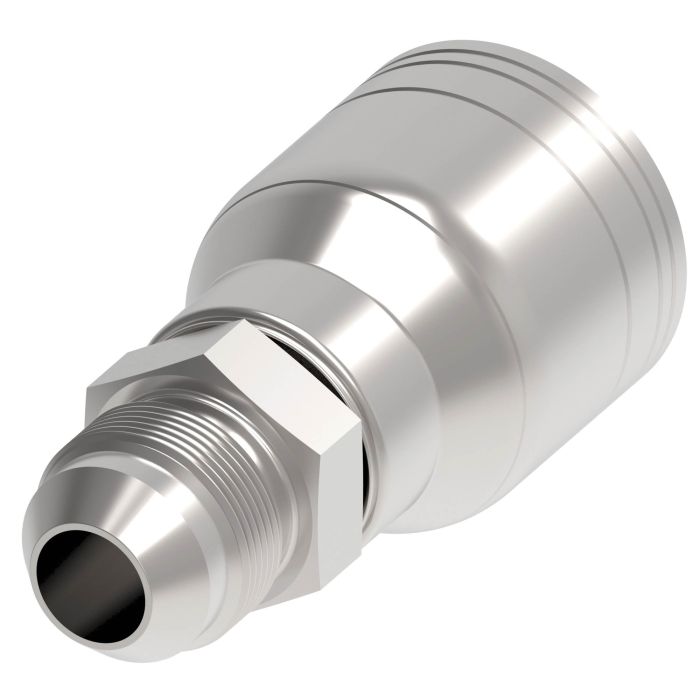

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Male JIC 37 deg Flare, -10 Hose, Straight

Description & Features

Designed for general purpose low and medium pressure hydraulics, the Aeroquip TTC Steel Crimp Fittings are highly reliable where shock hazards exist. Featuring a 7/8-14 Male JIC 37deg; Flare connection and suitable for -10 hoses, these fittings ensure secure and leak-free connections. Constructed with 1 & 2 wire braid steel, they offer durability and strength in demanding applications.

MPN: 1AA10MJ10

Supplier Part Number: 1AA10MJ10

These fittings are engineered for performance without requiring a mandrel and come with a torque rating of 50-58 lb/ft. Perfect for use with H277 or H435 hoses, the fittings meet the needs of various hydraulic systems. The straight configuration enables ease of installation and maintenance in complex setups. The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Male JIC 37 deg Flare, -10 Hose, Straight, ensures optimal functionality in industrial applications.

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.73 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC	Construction Style Crimp	Cut-Off Factor 1.59 in	d Dimensions 1.57 in	Dimension Standards SAE J1176	Dimensions 2.88 in L x 1.386 in W x 1.39 in H	End Connection Torque 57 to 62 lb-ft	End Gender 1 Male	End Size 1 7/8 in	End Size 2 5/8 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses	Hex Size 0.94 in	Hose Dash Size 10	Inside Diameter 0.48 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF	Torque Rating 50 to 58 lb-ft

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA10MJ8 TTC Steel JIC Crimp Fitting	7/8-14	08	1.26 in
1AA12MJ10 TTC Steel JIC Crimp Fitting	1-1/16-12	10	1.43 in
1AA12MJ12 TTC Steel JIC Crimp Fitting	1-1/16-12	12	1-3/4 in
1AA12MJ8 TTC Steel JIC Crimp Fitting	1-1/16-12	08	1.42 in
1AA16MJ12 TTC Steel JIC Crimp Fitting	1-5/16-12	12	1.56 in
1AA4MJ4 TTC Steel JIC Crimp Fitting	7/16-20	04	1.07 in
1AA6MJ6 TTC Steel JIC Crimp Fitting	9/16-18	06	1.17 in
1AA8MJ6 TTC Steel JIC Crimp Fitting	3/4-16	06	1.11 in
1AA8MJ8 TTC Steel JIC Crimp Fitting	3/4-16	08	1.41 in
1AA16MJ16 TTC Steel JIC Crimp Fitting	1-5/16-12	16	1.9 in
1AA24MJ24 TTC Steel JIC Crimp Fitting	1-7/8-12	24	2.49 in
1AA5MJ4 TTC Steel JIC Crimp Fitting	1/2-20	04	0.92 in
1AA6MJ4 TTC Steel JIC Crimp Fitting	9/16-18	04	0.93 in

Product Questions & Answers (2)

Question by: Duane G on Jul 25, 2025, 7:21 AM

trying to replace a fitting on a -10 hose, is this the straight one with 7/8-14 male JIC on the end?

Answer by: Customer Support on Jul 26, 2025, 2:42 PM

For a straight male JIC 37 degree flare connection on a -10 hose, this fitting matches that setup. It uses a 7/8-14 male SAE 37 (JIC) thread on one end and is built as a steel crimp fitting for 1 and 2 wire braid hose.

Question by: Norm W on Jan 16, 2026, 4:24 PM

fitting says it works with H277 or H435 hose, does that mean it won't crimp onto other -10 hose types?

Answer by: Customer Support on Jan 18, 2026, 3:19 PM

For this particular fitting, H277 and H435 are the specified compatible hoses. Using it with other -10 hose constructions isn't something the manufacturer data backs up, so sticking to those two hose types is the right call if you want a properly rated assembly.
