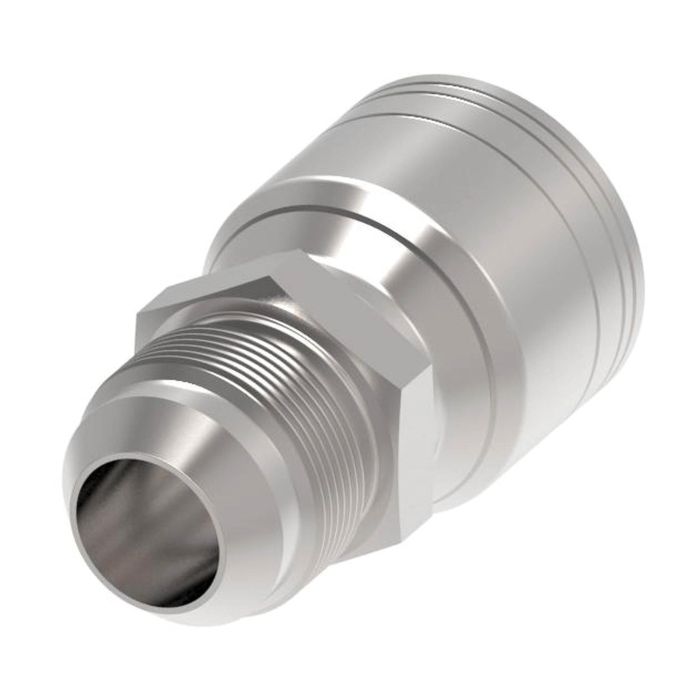

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Male JIC 37 deg Flare, -10 Hose, Straight

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) TTC Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics, making it suitable for use with H277 or H435 hoses where shock hazards may exist. This fitting features a 1-1/16-12 Male JIC 37-degree flare and accommodates a -10 hose size.

Its robust steel construction ensures durability and reliability in various industrial applications.

The straight configuration and precise threading provide a secure and leak-resistant connection, enhancing the efficiency of hydraulic systems.

The fitting does not require a mandrel for installation and is engineered without the need for thread sealant, simplifying maintenance and reducing installation time.

ECCN: EAR99

Supplier Part Number: 1AA12MJ10

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.46 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC	Construction Style Crimp	Cut-Off Factor 1.43 in	d Dimensions 1.43 in	Dimension Standards SAE J1176	Dimensions 2.59 in L x 1.39 in W x 1.39 in H	End Connection Torque 79 to 87 lb-ft	End Gender 1 Male	End Size 1 12	End Size 2 5/8 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses	Hex Size 1-1/8 in	Hose Dash Size 10	Inside Diameter 1/2 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-12	Thread Type UN

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA10MJ10 TTC Steel JIC Crimp Fitting	7/8-14	10	1.57 in
1AA10MJ8 TTC Steel JIC Crimp Fitting	7/8-14	08	1.26 in
1AA12MJ12 TTC Steel JIC Crimp Fitting	1-1/16-12	12	1-3/4 in
1AA12MJ8 TTC Steel JIC Crimp Fitting	1-1/16-12	08	1.42 in
1AA16MJ12 TTC Steel JIC Crimp Fitting	1-5/16-12	12	1.56 in
1AA4MJ4 TTC Steel JIC Crimp Fitting	7/16-20	04	1.07 in
1AA6MJ6 TTC Steel JIC Crimp Fitting	9/16-18	06	1.17 in
1AA8MJ6 TTC Steel JIC Crimp Fitting	3/4-16	06	1.11 in
1AA8MJ8 TTC Steel JIC Crimp Fitting	3/4-16	08	1.41 in
1AA16MJ16 TTC Steel JIC Crimp Fitting	1-5/16-12	16	1.9 in
1AA24MJ24 TTC Steel JIC Crimp Fitting	1-7/8-12	24	2.49 in
1AA5MJ4 TTC Steel JIC Crimp Fitting	1/2-20	04	0.92 in
1AA6MJ4 TTC Steel JIC Crimp Fitting	9/16-18	04	0.93 in

Product Questions & Answers (2)

Question by: Diane H on Nov 23, 2025, 12:00 PM

got a -10 hose and need a straight male JIC end, is this the right crimp fitting for that?

Answer by: Customer Support on Nov 25, 2025, 7:13 AM

For a straight male JIC connection on a -10 hose, this fitting matches that setup. It is a steel Global TTC crimp fitting with a 1-1/16-12 male JIC 37 degree flare end.

Question by: Debbie W on Oct 27, 2025, 4:37 PM

fitting says no thread sealant needed, is that actually right for a JIC 37 degree flare?

Answer by: Customer Support on Oct 28, 2025, 6:41 PM

Correct. The metal-to-metal sealing surface on a JIC 37-degree flare does the work, so thread sealant isn't needed and shouldn't be used. Adding tape or compound to that style of fitting can actually interfere with the seating and cause leaks rather than prevent them. This one's engineered to seal clean without it.
