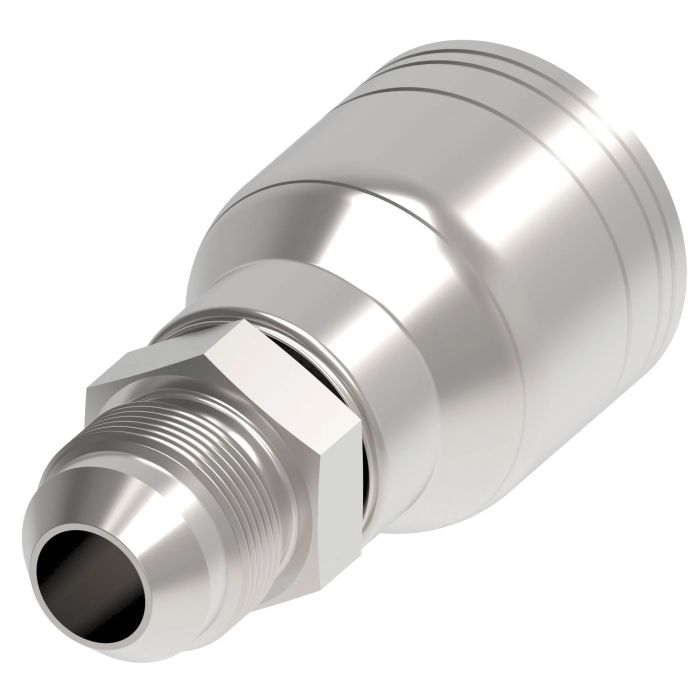

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Male JIC 37 deg Flare, -12 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions Global TTC 1 & 2 Wire Braid Steel Crimp Fitting provides reliable connections for general-purpose low and medium pressure hydraulics. This fitting accommodates a -12 hose size and features a 1-1/16-12 male JIC 37-degree flare end, making it ideal for use in applications where shock hazards exist.

Constructed from durable steel, the crimp fitting offers a straight design and does not require a mandrel for installation. The fitting's end types are JIC 37 on one side and Line/Hose/Tube on the other, ensuring compatibility with a variety of hydraulic components. The hex size is 1.12 for a secure fit.

Engineered for performance, this crimp fitting features a torque rating of 79-88 lb/ft, and it does not necessitate the use of thread sealant. The fitting is part of the Aeroquip TTC Steel Crimp Fittings range, known for its robustness and reliability in various industrial environments.

MPN: C1AP53

Supplier Part Number: 1AA12MJ12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.96 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
1.73 in
d Dimensions
1-3/4 in
Dimension Standards
SAE J1176
Dimensions
3.11 in L x 1.56 in W x 1.56 in H
End Connection Torque
79 to 87 lb-ft
End Gender 1
Male
End Size 1
12
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.141 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN
Torque Rating
79 to 88 lb-ft

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Male JIC 37 deg Flare, -10 Hose, Straight

1AA10MJ10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.57 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Male JIC 37 deg Flare, -08 Hose, Straight

1AA10MJ8 TTC Steel JIC Crimp Fitting

7/8-14

08

1.26 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Male JIC 37 deg Flare, -10 Hose, Straight

1AA12MJ10 TTC Steel JIC Crimp Fitting

1-1/16-12

10

1.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Male JIC 37 deg Flare, -08 Hose, Straight

1AA12MJ8 TTC Steel JIC Crimp Fitting

1-1/16-12

08

1.42 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Male JIC 37 deg Flare, -12 Hose, Straight

1AA16MJ12 TTC Steel JIC Crimp Fitting

1-5/16-12

12

1.56 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Male JIC 37 deg Flare, -04 Hose, Straight

1AA4MJ4 TTC Steel JIC Crimp Fitting

7/16-20

04

1.07 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Male JIC 37 deg Flare, -06 Hose, Straight

1AA6MJ6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.17 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Male JIC 37 deg Flare, -06 Hose, Straight

1AA8MJ6 TTC Steel JIC Crimp Fitting

3/4-16

06

1.11 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Male JIC 37 deg Flare, -08 Hose, Straight

1AA8MJ8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Male JIC 37 deg Flare, -16 Hose, Straight

1AA16MJ16 TTC Steel JIC Crimp Fitting

1-5/16-12

16

1.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/8-12 Male JIC 37 deg Flare, -24 Hose, Straight

1AA24MJ24 TTC Steel JIC Crimp Fitting

1-7/8-12

24

2.49 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-20 Male JIC 37 deg Flare, -04 Hose, Straight

1AA5MJ4 TTC Steel JIC Crimp Fitting

1/2-20

04

0.92 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Male JIC 37 deg Flare, -04 Hose, Straight

1AA6MJ4 TTC Steel JIC Crimp Fitting

9/16-18

04

0.93 in

Product Questions & Answers (3)

Question by: Connie P on May 16, 2025, 1:41 PM
will this crimp fitting work with both single and double wire braid hose or just one type?
Answer by: Customer Support on May 18, 2025, 9:10 AM
Works with both 1 and 2 wire braid steel hose construction. The Global TTC fitting is engineered to crimp securely onto either single or double wire braided hydraulic hose in the -12 size, so you don't need separate fittings for different wire configurations.
Question by: Harold E on Jun 10, 2025, 3:42 PM
How do I know if this crimp fitting will work with my existing hydraulic setup?
Answer by: Customer Support on Jun 11, 2025, 4:43 PM
The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is intended for use with a -12 hose and features a 1-1/16-12 Male JIC 37-degree flare. Make sure your setup matches these specifications for a proper fit.
Question by: Marvin H on Aug 15, 2025, 6:53 AM
Will this crimp fitting hook up right to a standard -12 hose with two-wire braid
Answer by: Customer Support on Aug 17, 2025, 8:00 AM
Fits perfectly on -12 hoses that use one or two wire braids, with a straight 1-1/16-12 male JIC 37 degree flare end for secure connections in hydraulic setups.
