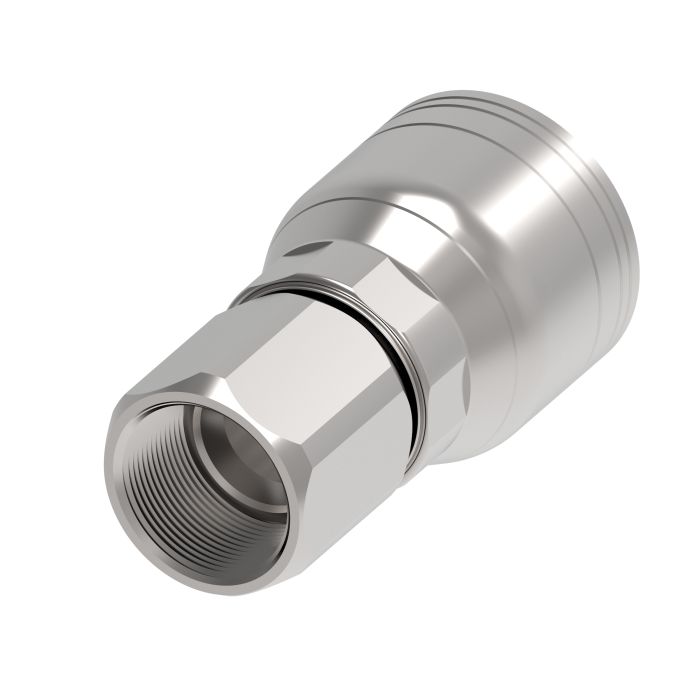

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female JIC 37 deg Flare, -12 Hose, Straight

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) TTC Steel JIC Crimp Fitting is designed for versatility in general purpose low and medium pressure hydraulics. It is compatible with H277 or H435 hydraulic hoses where shock hazards are present. This fitting ensures seamless integration with a 1-3/16-12 Female JIC 37-degree Flare connection and is intended for -12 Hose applications. Constructed from high-quality steel this crimp fitting provides robust performance for various industrial uses.

ECCN: EAR99

Supplier Part Number: 1AA14FJ12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.76 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 7/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.68 in	d Dimensions 1.65 in	Dimension Standards SAE J1176	Dimensions 2.84 in L x 1.56 in W x 1.58 in H	End Connection Torque 83 to 90 lb-ft	End Gender 1 Female	End Size 1 14	End Size 2 3/4 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With GH663, GH681 and GH781 Series Hoses	Hex Size 1-3/8 x 1-1/8 in	Hose Dash Size 12	Inside Diameter 0.61 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/16-12	Thread Type UN

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA10FJ10 TTC Steel JIC Crimp Fitting	7/8-14	10	1.61 in
1AA4FJ4 TTC Steel JIC Crimp Fitting	7/16-20	04	1.07 in
1AA6FJ6 TTC Steel JIC Crimp Fitting	9/16-18	06	1.28 in
1AA8FJ8 TTC Steel JIC Crimp Fitting	3/4-16	08	1.46 in
1AA10FJ8 TTC Steel JIC Crimp Fitting	7/8-14	08	1.47 in
1AA12FJ12 TTC Steel JIC Crimp Fitting	1-1/16-12	12	1.65 in
1AA16FJ16 TTC Steel JIC Crimp Fitting	1-5/16-12	16	1.93 in
1AA10FJ12 TTC Steel JIC Crimp Fitting	7/8-14	12	1.63 in
1AA12FJ10 TTC Steel JIC Crimp Fitting	1-1/16-12	10	1.57 in
1AA12FJ16 TTC Steel JIC Crimp Fitting	1-1/16-12	16	1.8 in
1AA12FJ8 TTC Steel JIC Crimp Fitting	1-1/16-12	08	1.56 in
1AA16FJ12 TTC Steel JIC Crimp Fitting	1-5/16-12	12	1.72 in
1AA20FJ16 TTC Steel JIC Crimp Fitting	1-5/8-12	16	1.81 in
1AA24FJ24 TTC Steel JIC Crimp Fitting	1-7/8-12	24	2.07 in
1AA32FJ32 TTC Steel JIC Crimp Fitting	2-1/2-12	32	2.37 in
1AA4FJ6 TTC Steel JIC Crimp Fitting	7/16-20	06	1.19 in
1AA5FJ4 TTC Steel JIC Crimp Fitting	1/2-20	04	1.06 in
1AA6FJ4 TTC Steel JIC Crimp Fitting	9/16-18	04	1.11 in
1AA8FJ6 TTC Steel JIC Crimp Fitting	3/4-16	06	1.31 in
1AA3FJ4 TTC Steel JIC Crimp Fitting	3/8-24	04	1.02 in
1AA5FJ6 TTC Steel JIC Crimp Fitting	1/2-20	06	1.24 in
1AA6FJ8 TTC Steel JIC Crimp Fitting	9/16-18	08	1.36 in
1AA8FJ10 TTC Steel JIC Crimp Fitting	3/4-16	10	1-1/2 in

Product Questions & Answers (2)

Question by: Glen S on Jul 2, 2025, 3:33 PM

trying to replace a fitting on a -12 hose, is this the straight female JIC one with the 1-3/16-12 threads?

Answer by: Customer Support on Jul 4, 2025, 10:36 AM

Match three things: it is a straight crimp fitting for -12 hose, the port end is a female JIC SAE 37 degree flare, and the thread size is 1-3/16-12.

Question by: Ricky B on Mar 13, 2026, 9:12 PM

Got a -12 hose running off a mid-pressure hydraulic line and need a straight female JIC end on it. This the right fitting for that?

Answer by: Customer Support on Mar 15, 2026, 9:21 AM

For a -12 hose with a 1-3/16-12 female JIC 37-degree flare connection on a low to medium pressure general purpose hydraulic system, yes, that's exactly what this fitting is built for. It's a straight crimp style compatible with 1 and 2 wire braid hose. If your application has any shock hazards in the line, pair it with H277 or H435 hose specifically, since that's the called-out requirement for those conditions.
