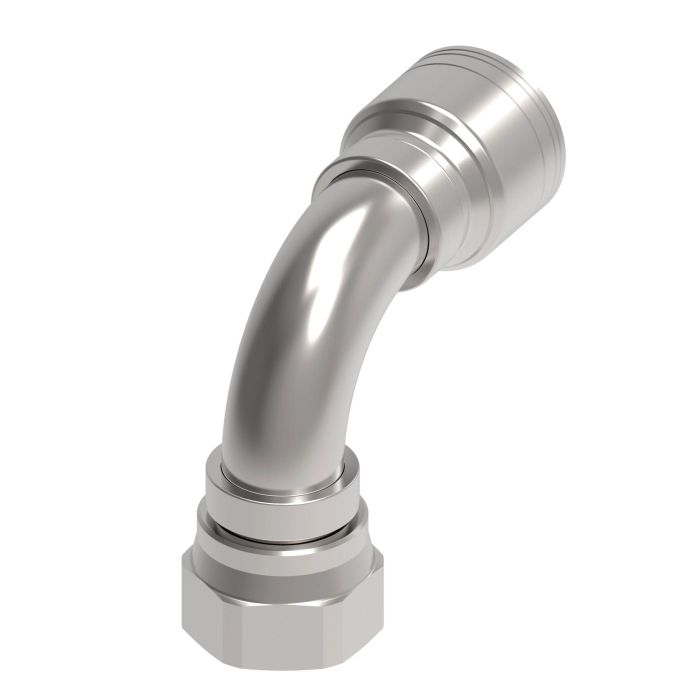

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting 1-5/16-12 Female JIC 37 deg Flare Swivel -12 Hose 90 deg Elbow is engineered for general purpose low and medium pressure hydraulics. This robust fitting is specifically designed for use with H277 or H435 hoses where shock hazards may be present. The fitting's 37-degree SAE flare swivel ensures a reliable leak-free connection making it highly suitable for demanding hydraulic applications.

The female end has a thread size of 1-5/16-12 which corresponds to a -12 hose size providing a secure and optimal fit. Constructed from high-quality steel this crimp fitting guarantees durability and long-lasting performance under varying conditions. The 90-degree elbow design facilitates ease of installation and better alignment within hydraulic systems.

With a drop dimension of 2.3900 inches this fitting offers a compact solution without compromising performance. It does not require a mandrel simplifying the crimping process and does not involve the use of thread sealant. The torque rating falls between 117-125 lb/ft ensuring a tight and secure assembly.

MPN: C1AP67

Supplier Part Number: 1AA16FJB12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.24 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.18 in
d Dimensions
2.18 in
Dimension Standards
SAE J1176
Dimensions
4.11 in L x 1.56 in W x 3.77 in H
Drop Dimensions
2.39 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
End Size 2
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
2.39 in
Hex Size
1-1/2 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN
Torque Rating
117 to 125 lb-ft

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

1AA10FJB10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.55 in

1.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

1AA10FJB8 TTC Steel JIC Crimp Fitting

7/8-14

08

1.61 in

1.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

1AA12FJB10 TTC Steel JIC Crimp Fitting

1-1/16-12

10

2.16 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

1AA12FJB12 TTC Steel JIC Crimp Fitting

1-1/16-12

12

2.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 90 deg Elbow

1AA16FJB16 TTC Steel JIC Crimp Fitting

1-5/16-12

16

2.2 in

2.39 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

1AA4FJB4 TTC Steel JIC Crimp Fitting

7/16-20

04

0.92 in

0.68 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

1AA6FJB4 TTC Steel JIC Crimp Fitting

9/16-18

04

1.08 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA6FJB6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.22 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA8FJB6 TTC Steel JIC Crimp Fitting

3/4-16

06

1.42 in

1.09 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

1AA8FJB8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.42 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 90 deg Elbow

1AA20FJB20 TTC Steel JIC Crimp Fitting

1-5/8-12

20

2.52 in

2-3/4 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/8-12 Female JIC 37 deg Flare Swivel, -24 Hose, 90 deg Elbow

1AA24FJB24 TTC Steel JIC Crimp Fitting

1-7/8-12

24

2.81 in

3.17 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA4FJB6 TTC Steel JIC Crimp Fitting

7/16-20

06

0.98 in

0.68 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

1AA5FJB4 TTC Steel JIC Crimp Fitting

1/2-20

04

1 in

0.76 in

Product Questions & Answers (2)

Question by: Hank O on Feb 13, 2026, 6:02 PM
got a -12 hose with a 90 tucked spot, is this the right elbow if i need a female JIC swivel?
Answer by: Customer Support on Feb 15, 2026, 10:25 AM
For a -12 hose end, this one matches up as a 90 degree elbow with a female JIC 37 degree flare swivel and a 1-5/16-12 thread on the female side, so it’s the right style when you’re mating to a male JIC 37 flare.
Question by: Wayne S on Oct 12, 2025, 7:55 PM
If I got a H277 hose, this fitting would work then? Just want to make sure before ordering.
Answer by: Customer Support on Oct 14, 2025, 8:24 AM
Yes, this fitting is designed for use with either H277 or H435 hoses, particularly in systems where you might have to worry about shock hazards.
