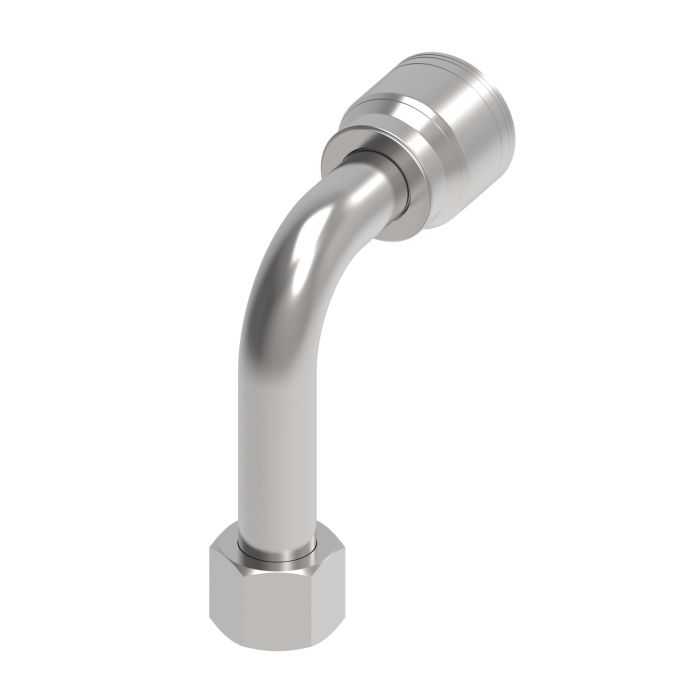

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions (II LLC Aeroquip), this high-quality crimp fitting is designed for general purpose low and medium pressure hydraulics. Featuring a 1-5/16-12 thread and a 37-degree flare swivel, it ensures a reliable connection for a -16 size hose.

The fitting is engineered for use with 1 & 2 wire braid steel hoses and is suited for applications where shock hazards exist, such as with H277 or H435 hose types. The long drop 90-degree elbow design provides ease of installation and flexibility in routing.

Measuring 4.58 inches in height, this fitting is crafted for durability and long-term use. It does not require a mandrel for assembly and operates efficiently without the need for thread sealant. The torque rating for this fitting falls between 117-125 lb/ft, ensuring secure fittings during operation.

Segment Code: seg_code_a

MPN: C1AP69

Supplier Part Number: 1AA16FJC16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.38 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.87 in
d Dimensions
2.2 in
Dimension Standards
SAE J1176
Dimensions
5.13 in L x 1.94 in W x 6.15 in H
Drop Dimensions
4.58 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
End Size 2
1 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
4.58 in
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.81 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN
Torque Rating
117 to 125 lb-ft

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, Long 90 deg Elbow

1AA10FJC10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.54 in

2.57 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, Long 90 deg Elbow

1AA12FJC12 TTC Steel JIC Crimp Fitting

1-1/16-12

12

2.17 in

3.7 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -04 Hose, Long 90 deg Elbow

1AA6FJC4 TTC Steel JIC Crimp Fitting

9/16-18

04

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Long 90 deg Elbow

1AA6FJC6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.23 in

2.18 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Long 90 deg Elbow

1AA8FJC8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.54 in

2.45 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -08 Hose, Long 90 deg Elbow

1AA10FJC8 TTC Steel JIC Crimp Fitting

7/8-14

08

1.61 in

2.57 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Long 90 deg Elbow

1AA4FJC4 TTC Steel JIC Crimp Fitting

7/16-20

04

0.92 in

1.8 in
