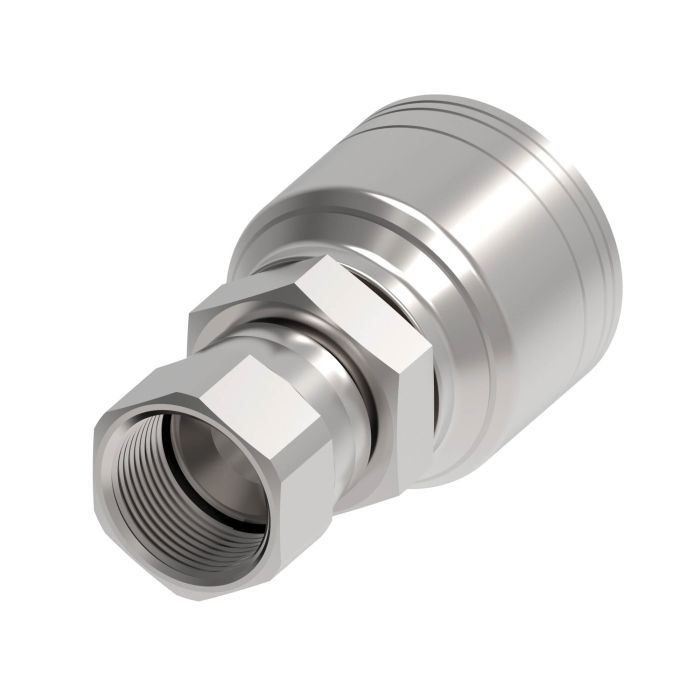

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/8-24 Female JIC 37 deg Flare, -04 Hose, Straight

Description & Features

This fitting is crafted from robust steel and engineered to support low and medium pressure hydraulic applications effectively. The female JIC 37-degree flare end ensures a firm connection with a 3/8-24 thread configuration. Ideal for use with H277 or H435 hoses the fitting supports -04 sized hoses making it versatile for various hydraulic systems.

With a half-inch hex size it allows for secure tightening without requiring a mandrel. Designed for general-purpose hydraulics this crimp fitting is a reliable choice for ensuring consistent performance in shock-sensitive environments. The segment code is seg_code_a and the product model label is Aeroquip TTC Steel Crimp Fittings.

MPN: 1AA3FJ4

Supplier Part Number: 1AA3FJ4

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.8 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 3/16 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.02 in	d Dimensions 1.02 in	Dimension Standards SAE J1176	Dimensions 1.94 in L x 0.88 in W x 0.88 in H	End Gender 1 Female	End Size 1 3/8 in	End Size 2 1/4 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With GH663, GH681 and GH781 Series Hoses	Hex Size 1/2 x 9/16 in	Hose Dash Size 04	Inside Diameter 0.13 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 3/8-24	Thread Type UNF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA10FJ10 TTC Steel JIC Crimp Fitting	7/8-14	10	1.61 in
1AA4FJ4 TTC Steel JIC Crimp Fitting	7/16-20	04	1.07 in
1AA6FJ6 TTC Steel JIC Crimp Fitting	9/16-18	06	1.28 in
1AA8FJ8 TTC Steel JIC Crimp Fitting	3/4-16	08	1.46 in
1AA10FJ8 TTC Steel JIC Crimp Fitting	7/8-14	08	1.47 in
1AA12FJ12 TTC Steel JIC Crimp Fitting	1-1/16-12	12	1.65 in
1AA16FJ16 TTC Steel JIC Crimp Fitting	1-5/16-12	16	1.93 in
1AA10FJ12 TTC Steel JIC Crimp Fitting	7/8-14	12	1.63 in
1AA12FJ10 TTC Steel JIC Crimp Fitting	1-1/16-12	10	1.57 in
1AA12FJ16 TTC Steel JIC Crimp Fitting	1-1/16-12	16	1.8 in
1AA12FJ8 TTC Steel JIC Crimp Fitting	1-1/16-12	08	1.56 in
1AA16FJ12 TTC Steel JIC Crimp Fitting	1-5/16-12	12	1.72 in
1AA20FJ16 TTC Steel JIC Crimp Fitting	1-5/8-12	16	1.81 in
1AA24FJ24 TTC Steel JIC Crimp Fitting	1-7/8-12	24	2.07 in
1AA32FJ32 TTC Steel JIC Crimp Fitting	2-1/2-12	32	2.37 in
1AA4FJ6 TTC Steel JIC Crimp Fitting	7/16-20	06	1.19 in
1AA5FJ4 TTC Steel JIC Crimp Fitting	1/2-20	04	1.06 in
1AA6FJ4 TTC Steel JIC Crimp Fitting	9/16-18	04	1.11 in
1AA8FJ6 TTC Steel JIC Crimp Fitting	3/4-16	06	1.31 in
1AA14FJ12 TTC Steel JIC Crimp Fitting	1-3/16-12	12	1.65 in
1AA5FJ6 TTC Steel JIC Crimp Fitting	1/2-20	06	1.24 in
1AA6FJ8 TTC Steel JIC Crimp Fitting	9/16-18	08	1.36 in
1AA8FJ10 TTC Steel JIC Crimp Fitting	3/4-16	10	1-1/2 in
