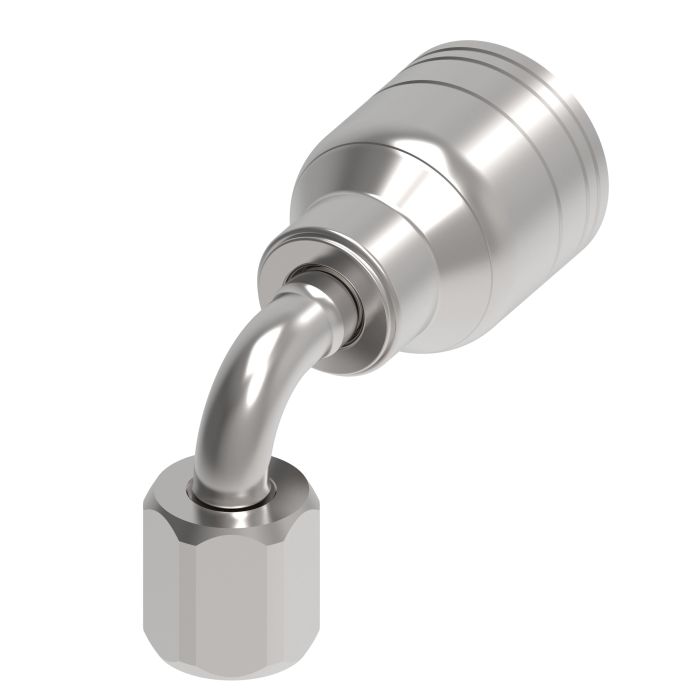

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulics, this fitting ensures reliable performance with H277 or H435 hoses where shock hazards may exist. It features a 7/16-20 Female JIC 37-degree flare swivel and a 90-degree elbow, suitable for -04 hoses.

The product is identified as part number 1AA4FJB4 from the reputable brand Danfoss Power Solutions (II LLC Aeroquip). The 0.68 drop dimension, coupled with a torque rating of 11-12 LB/FT, makes it a robust and dependable component for hydraulic applications.

End sizes are 0.4375 inches for End 1 (female) and 0.25 inches for End 2, designed specifically for line/hose/tube connections. Threaded with a 7/16-20 specification, this crimp fitting does not require a mandrel or thread sealant.

MPN: C1AP95

Supplier Part Number: 1AA4FJB4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.79 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.92 in
d Dimensions
0.92 in
Dimension Standards
SAE J1176
Dimensions
2.17 in L x 0.88 in W x 1.47 in H
Drop Dimensions
0.68 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.68 in
Hex Size
0.563 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF
Torque Rating
11 to 12 lb-ft

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

1AA10FJB10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.55 in

1.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

1AA10FJB8 TTC Steel JIC Crimp Fitting

7/8-14

08

1.61 in

1.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

1AA12FJB10 TTC Steel JIC Crimp Fitting

1-1/16-12

10

2.16 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

1AA12FJB12 TTC Steel JIC Crimp Fitting

1-1/16-12

12

2.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 90 deg Elbow

1AA16FJB16 TTC Steel JIC Crimp Fitting

1-5/16-12

16

2.2 in

2.39 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

1AA6FJB4 TTC Steel JIC Crimp Fitting

9/16-18

04

1.08 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA6FJB6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.22 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA8FJB6 TTC Steel JIC Crimp Fitting

3/4-16

06

1.42 in

1.09 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

1AA8FJB8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.42 in

0.84 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 90 deg Elbow

1AA20FJB20 TTC Steel JIC Crimp Fitting

1-5/8-12

20

2.52 in

2-3/4 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

1AA16FJB12 TTC Steel JIC Crimp Fitting

1-5/16-12

12

2.18 in

2.39 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/8-12 Female JIC 37 deg Flare Swivel, -24 Hose, 90 deg Elbow

1AA24FJB24 TTC Steel JIC Crimp Fitting

1-7/8-12

24

2.81 in

3.17 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

1AA4FJB6 TTC Steel JIC Crimp Fitting

7/16-20

06

0.98 in

0.68 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

1AA5FJB4 TTC Steel JIC Crimp Fitting

1/2-20

04

1 in

0.76 in

Product Questions & Answers (3)

Question by: Gene G on May 23, 2025, 12:24 PM
trying to match up a fitting i already have, is this the 7/16-20 female jic swivel in a 90 for -04 hose?
Answer by: Customer Support on May 25, 2025, 11:21 AM
Match it up by the key callouts: it has a 7/16-20 female JIC 37 degree flare swivel on one end, it crimps onto a -04 hose on the other end, and the body is a 90 degree elbow.
Question by: Roger W on Jun 8, 2025, 5:02 PM
fitting's made for -04 hose, but does it need any kind of thread sealant or mandrel to get it installed right?
Answer by: Customer Support on Jun 9, 2025, 6:26 PM
No sealant or mandrel required for this one. The 7/16-20 female JIC 37-degree flare swivel handles the seal through metal-to-metal contact at the flare, so adding sealant would actually work against you. Crimp it onto your -04 hose and torque the swivel end to 11-12 lb/ft and you're set.
Question by: Lee C on Oct 13, 2025, 2:46 PM
got a -04 hose and need a 90 to get around a bracket. is this the right one with the swivel jic end?
Answer by: Customer Support on Oct 15, 2025, 11:57 AM
For a -04 hose, this fitting matches that setup. It is a 90 degree elbow crimp fitting with a 7/16-20 Female JIC 37 degree flare swivel on one end, and it is built for line, hose, or tube connections.
