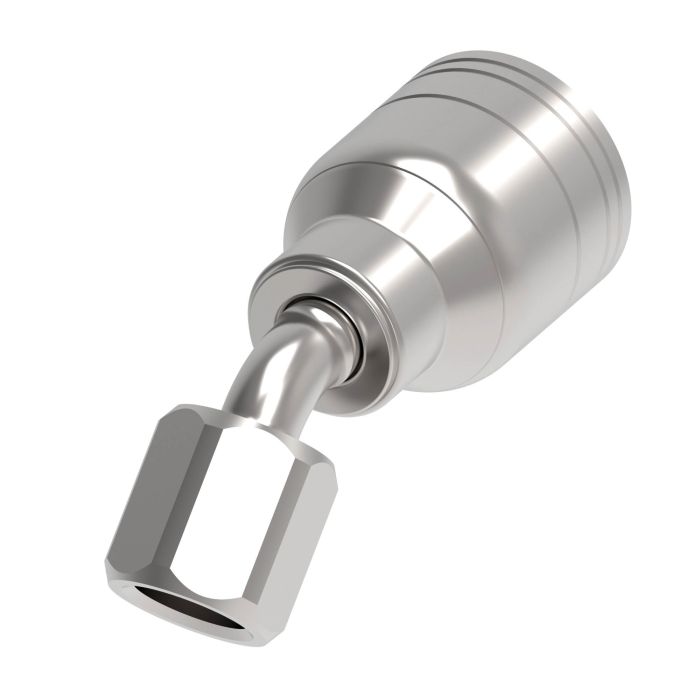

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is engineered for general purpose low and medium pressure hydraulics. Combining a 9/16-18 Female JIC 37-degree flare swivel and a -04 hose, this 45-degree elbow fitting is designed to meet demanding industrial requirements.

Utilize H277 or H435 hose where shock hazards exist, ensuring compatibility and safety in various hydraulic applications. With a drop dimension of 0.4500 and end size of 0.5625, this fitting offers precise specifications for optimal performance.

Manufactured by Danfoss Power Solutions under the Aeroquip label, it provides reliable and durable solutions for hydraulic systems, without necessitating a mandrel. Incorporating a SAE 37 end type, it maintains industry standards for connection types and integrity.

Supplier Part Number: 1AA6FJA4

MPN: C1AQ31

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.37 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.53 in
d Dimensions
1.17 in
Dimension Standards
SAE J1176
Dimensions
3.22 in L x 0.88 in W x 1.61 in H
Drop Dimensions
0.45 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.39 in
Hex Size
11/16 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

1AA10FJA10 TTC Steel JIC Crimp Fitting

7/8-14

10

1.79 in

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

1AA10FJA8 TTC Steel JIC Crimp Fitting

7/8-14

08

1.86 in

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

1AA12FJA10 TTC Steel JIC Crimp Fitting

1-1/16-12

10

2.22 in

0.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

1AA12FJA12 TTC Steel JIC Crimp Fitting

1-1/16-12

12

2.24 in

0.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

1AA16FJA16 TTC Steel JIC Crimp Fitting

1-5/16-12

16

2.39 in

1.07 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

1AA4FJA4 TTC Steel JIC Crimp Fitting

7/16-20

04

1.04 in

0.33 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

1AA6FJA6 TTC Steel JIC Crimp Fitting

9/16-18

06

1.31 in

0.39 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

1AA8FJA6 TTC Steel JIC Crimp Fitting

3/4-16

06

1.66 in

0.55 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

1AA8FJA8 TTC Steel JIC Crimp Fitting

3/4-16

08

1.65 in

0.55 in

Product Questions & Answers (2)

Question by: Neal B on Jan 21, 2026, 9:59 AM
trying to replace a 45 degree elbow on a -04 hose, is this one the 9/16-18 female JIC swivel?
Answer by: Customer Support on Jan 23, 2026, 6:23 AM
It matches a -04 hose end with a 9/16-18 female JIC 37 degree flare swivel, built as a 45 degree elbow. That combination is what you want if your existing end is a female JIC flare swivel in that thread size.
Question by: Lyle G on Sep 13, 2025, 6:37 PM
fitting says it works on 1 and 2 wire braid hose, does that mean i can use it on my existing -04 hose without swapping anything out, or do i need a mandrel for the crimp?
Answer by: Customer Support on Sep 15, 2025, 2:00 PM
No mandrel is needed with this fitting, which makes the crimp process a good bit simpler. It's built for -04 hose and rated for 1 and 2 wire braid construction, so as long as your existing hose falls into one of those categories at the -04 size, you're in good shape for a straight crimp without extra tooling.
