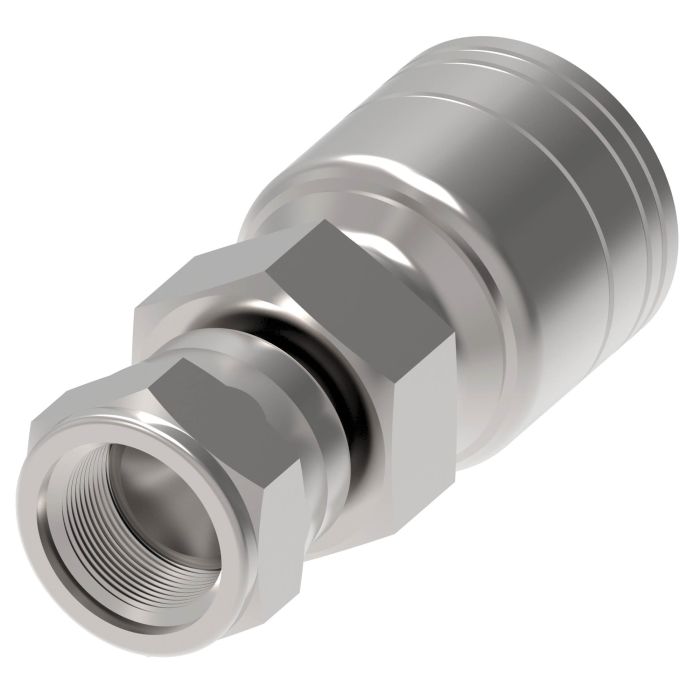

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/4 Female JIS 30 deg Flare Swivel, -04 Hose, Straight

Ask A Question

Description & Features

Designed for general-purpose low and medium pressure hydraulics this crimp fitting is optimized for applications where shock hazards exist utilizing the H277 or H435 hoses. It features a G 1/4 female JIS 30-degree flare swivel connection and is compatible with -04 hose size making it an ideal choice for various hydraulic systems.

The hex size of 0.75 inches ensures secure fitting while the straight configuration provides ease of installation and maintenance.

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting G 1/4 Female JIS 30 deg Flare Swivel -04 Hose Straight is crafted by Danfoss Power Solutions (II LLC Aeroquip) recognized for their reliable and durable hydraulic components.

The fitting does not require a mandrel simplifying the crimping process and enhancing its usability across different applications.

Thread sealant is not necessary ensuring a clean and efficient connection without additional materials.

Supplier Part Number: 1A4JF4

ECCN: EAR99

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.09 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Komatsu Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female JIS Kawasaki, Komatsu Swivel
Construction Style
Crimp
Cut-Off Factor
1.29 in
d Dimensions
29.8 in
Dimension Standards
SAE J1176
Dimensions
2.2 in L x 0.882 in W x 0.88 in H
End Gender 1
Female
End Size 1
1/4 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
3/4 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/4 Female JIS 30 deg Flare Swivel, -12 Hose, Straight

1A12JF12 TTC Steel JIS Crimp Fitting

G3/4

12

43.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1 Female JIS 30 deg Flare Swivel, -16 Hose, Straight

1A16JF16 TTC Steel JIS Crimp Fitting

G 1

16

49.2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/8 Female JIS 30 deg Flare Swivel, -06 Hose, Straight

1A6JF6 TTC Steel JIS Crimp Fitting

G3/8

06

33.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Female JIS 30 deg Flare Swivel, -08 Hose, Straight

1A8JF8 TTC Steel JIS Crimp Fitting

G1/2

08

36.6 in

Product Questions & Answers (1)

Question by: Bobby W on May 6, 2025, 12:05 PM
got a -04 hose and need a straight JIS swivel end, is this the right one?
Answer by: Customer Support on May 8, 2025, 6:43 AM
The key callouts on this one are the G 1/4 female JIS 30 degree flare swivel connection and that it’s made to crimp onto -04 hose size. It’s a straight fitting, so it installs inline rather than as an elbow.
