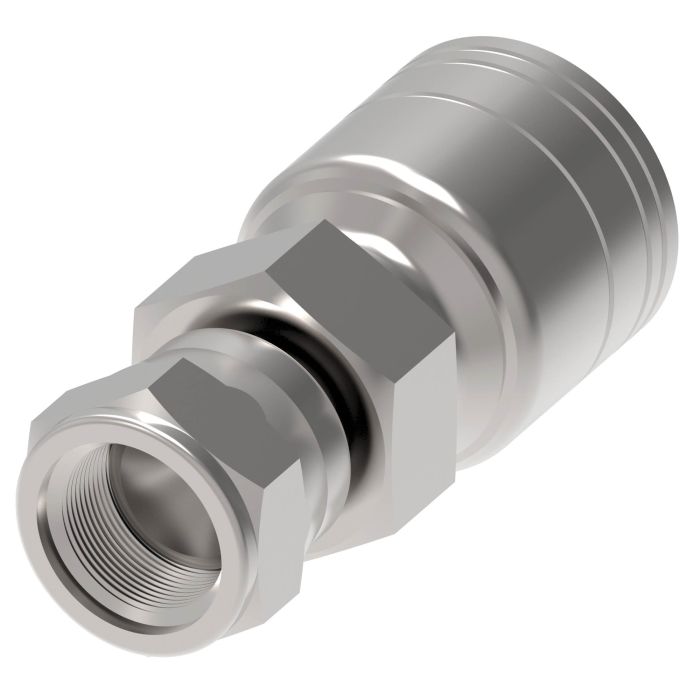

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/8 Female JIS 30 deg Flare Swivel, -06 Hose, Straight

Ask A Question

Description & Features

Designed for general-purpose low and medium pressure hydraulic applications this crimp fitting offers robust compatibility with H277 or H435 hoses in environments where shock hazards may exist.

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting featuring a G 3/8 Female JIS 30-degree flare swivel and -06 hose size exemplifies reliability and precision engineering.

The product comes from Danfoss Power Solutions a brand synonymous with quality and durability in hydraulic components.

Its female JIS end type and G 3/8 thread size ensure a secure connection.

Constructed to meet stringent industry standards this fitting does not require a mandrel or thread sealant simplifying the installation process.

End size 1 and end size 2 both measure 0.375 and the hex size for the second end is 0.87 adding to its versatility.

ECCN: EAR99

Supplier Part Number: 1A6JF6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.17 in
Compatible Hose ID
0.38 in
Compatible Tube OD
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Komatsu Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female JIS Kawasaki, Komatsu Swivel
Construction Style
Crimp
Cut-Off Factor
1.33 in
d Dimensions
33.9 in
Dimension Standards
SAE J1176
Dimensions
2.32 in L x 1.067 in W x 1.06 in H
End Gender 1
Female
End Size 1
3/8 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
0.87 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
G3/8
Tube Outside Diameter 1
3/8 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/4 Female JIS 30 deg Flare Swivel, -12 Hose, Straight

1A12JF12 TTC Steel JIS Crimp Fitting

G3/4

12

43.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1 Female JIS 30 deg Flare Swivel, -16 Hose, Straight

1A16JF16 TTC Steel JIS Crimp Fitting

G 1

16

49.2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/4 Female JIS 30 deg Flare Swivel, -04 Hose, Straight

1A4JF4 TTC Steel JIS Crimp Fitting

1/4 in

04

29.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Female JIS 30 deg Flare Swivel, -08 Hose, Straight

1A8JF8 TTC Steel JIS Crimp Fitting

G1/2

08

36.6 in

Product Questions & Answers (1)

Question by: Denise J on Sep 12, 2025, 1:17 PM
Will this fitting work with a standard -06 hose, or is there something special I need to know?
Answer by: Customer Support on Sep 14, 2025, 11:16 AM
Designed for AEROQUIP MATCHMATE TTC hose, this fitting ensures a secure connection with -06 hose sizes.
