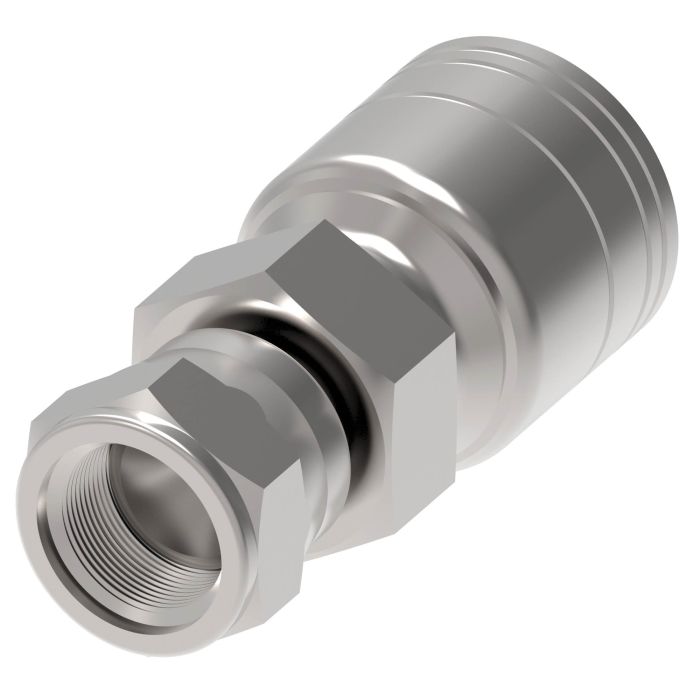

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Female JIS 30 deg Flare Swivel, -08 Hose, Straight

Ask A Question

Description & Features

Designed for low and medium pressure hydraulic applications this Aeroquip Matchmate Fitting features compatibility with H277 or H435 where shock hazards exist. The G 1/2 Female JIS 30-degree flare swivel ensures a secure connection making it ideal for general-purpose use. Suitable for -08 hose sizes the fitting offers reliable performance without the need for a mandrel.

Made from steel this crimp fitting is engineered to withstand demanding environments. The 1.06 hex size and 0.5 end sizes facilitate precise installation and maintenance. Notable for its straight design it includes a G 1/2 thread without requiring additional sealant.

ECCN: EAR99

Supplier Part Number: 1A8JF8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
1/2 in
Compatible Tube OD
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Komatsu Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female JIS Kawasaki, Komatsu Swivel
Construction Style
Crimp
Cut-Off Factor
1.46 in
d Dimensions
36.6 in
Dimension Standards
SAE J1176
Dimensions
2.62 in L x 1.22 in W x 1.22 in H
End Gender 1
Female
End Size 1
1/2 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.06 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
G1/2
Tube Outside Diameter 1
1/2 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/4 Female JIS 30 deg Flare Swivel, -12 Hose, Straight

1A12JF12 TTC Steel JIS Crimp Fitting

G3/4

12

43.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1 Female JIS 30 deg Flare Swivel, -16 Hose, Straight

1A16JF16 TTC Steel JIS Crimp Fitting

G 1

16

49.2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/4 Female JIS 30 deg Flare Swivel, -04 Hose, Straight

1A4JF4 TTC Steel JIS Crimp Fitting

1/4 in

04

29.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/8 Female JIS 30 deg Flare Swivel, -06 Hose, Straight

1A6JF6 TTC Steel JIS Crimp Fitting

G3/8

06

33.9 in

Product Questions & Answers (1)

Question by: Wade P on Jun 26, 2025, 4:48 PM
got a -08 hose here, is this the right crimp end for it, or am i off a size
Answer by: Customer Support on Jun 28, 2025, 6:48 AM
For hose fit, this one is built for -08 hose size and it’s a 1 and 2 wire braid steel crimp fitting, so it matches that hose size in the Matchmate style.
