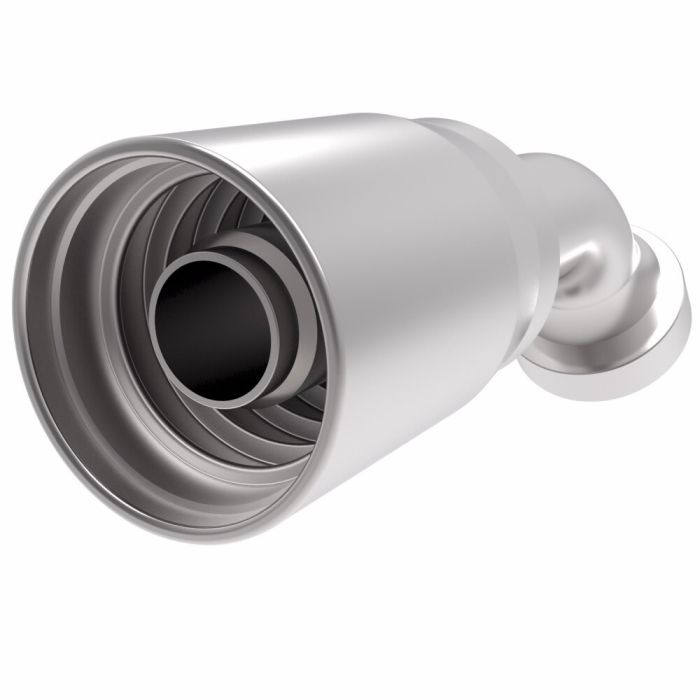

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 34.20 Female Komatsu Split Flange, -10 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, the Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 34.20 Female Komatsu Split Flange, -10 Hose, 45 deg Elbow is part of the Eaton Aeroquip TTC Steel Crimp Fittings line, manufactured at the Van Wert, OH facility. The fitting features a 45-degree elbow configuration with a flanged end type and a 34.2 mm flange head diameter, making it suited for Komatsu split flange connections in space-constrained installations.

Compatible with -10 hose, the fitting carries a 0.625-inch end size on both ports and an H dimension of 21.8 mm. Where shock hazards are present in the system, use with H277 or H435 hose is recommended. The steel crimp construction supports reliable termination on both 1 and 2 wire braid hose assemblies across a range of industrial hydraulic circuit configurations.

SKU: 1A10KSA10

Supplier Part Number (MPN): 1A10KSA10

Alternate Part Numbers: C1AM86, MI-01645587, MINO-00015J50890

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
47.30
Drop Dimension
0.86
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.63
End Size 2
0.63
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Flange Head Dia.
34.20
H
21.8 mm
Hose Size
-10
Mandrel Required
No
Supplier Part Number
1A10KSA10
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AM86, Alternate Part Number MI-01645587, Alternate Part Number MINO-00015J50890
Product Weight
0.37 lbs

Related Documents

Similar Products

Model Number Flange Head Dia. Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 34.20 Female Komatsu Split Flange, -10 Hose, 45 deg Elbow

1A10KSA10 TTC Steel Komatsu Crimp Fitting

34.2

-10

47.3

21.8 mm

Product Questions & Answers (1)

Question by: Judy B on Apr 17, 2025, 7:56 PM
Got a Komatsu split flange port on a piece of heavy equipment and need a 45 degree elbow to make the hose routing work. This the right fitting for that?
Answer by: Customer Support on Apr 19, 2025, 6:32 AM
For a Komatsu-pattern split flange connection with a 45 degree elbow, this is the correct fitting. It's a female Komatsu split flange on one end with a 34.2mm flange head diameter, and the crimp end accepts -10 hose. It's part of Eaton Aeroquip's TTC line, which covers both 1 and 2 wire braid steel crimp hose. As long as your port matches the Komatsu split flange pattern and you're running -10 hose, this fitting lines up for that application.
