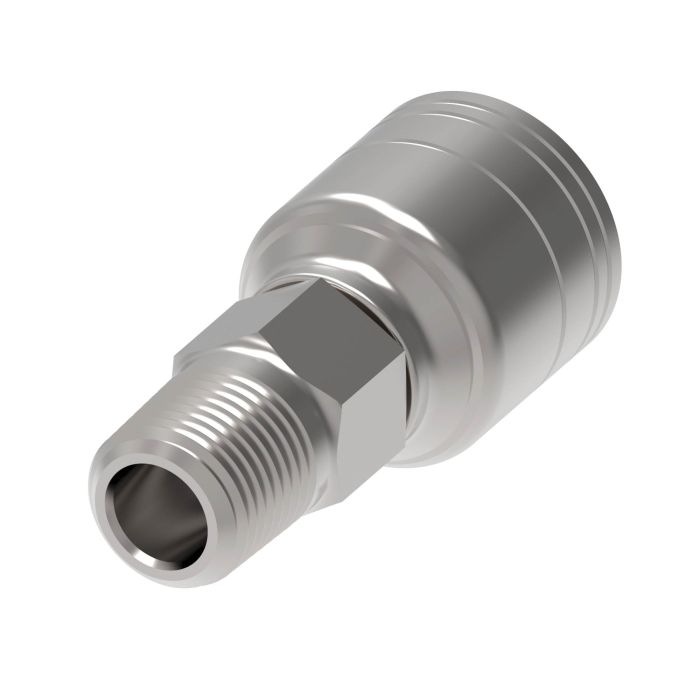

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-14 Male NPT, -08 Hose, Straight

Description & Features

This Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics. It features a 3/4-14 Male NPT connector, fitting size -08 hose, and is manufactured by Danfoss Power Solutions (II LLC Aeroquip).

The fitting is engineered to withstand environments where shock hazards exist when used with H277 or H435 hoses. This straight crimp fitting does not require a mandrel and is part of the Aeroquip TTC Steel Crimp Fittings product line.

Perfect for enhancing the durability and efficiency of your hydraulic systems, this fitting is applicable in various industrial settings. The thread size of the connector is 3/4-14 and it does not come with a thread sealant, ensuring versatility in its applications.

Supplier Part Number: 1AA12MP8

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.4 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 3/4 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Crimp	Cut-Off Factor 1.39 in	d Dimensions 1.39 in	Dimension Standards SAE J1176	Dimensions 2.56 in L x 1.22 in W x 1.22 in H	End Gender 1 Male	End Size 1 3/4 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With EC210, EC881, GH663, GH681 and GH781 Series Hoses	Hex Size 1.06 in	Hose Dash Size 08	Inside Diameter 0.38 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-14	Thread Type NPTF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA16MP16 TTC Steel NPT Crimp Fitting	1-11-1/2	16	1.86 in
1AA4MP4 TTC Steel NPT Crimp Fitting	1/4-18	04	1.14 in
1AA6MP6 TTC Steel NPT Crimp Fitting	3/8-18	06	1.28 in
1AA6MP8 TTC Steel NPT Crimp Fitting	3/8-18	08	1.32 in
1AA8MP8 TTC Steel NPT Crimp Fitting	1/2-14	08	1.57 in
1AA12MP10 TTC Steel NPT Crimp Fitting	3/4-14	10	1.4 in
1AA12MP12 TTC Steel NPT Crimp Fitting	3/4-14	12	1.65 in
1AA12MP16 TTC Steel NPT Crimp Fitting	3/4-14	16	1.67 in
1AA24MP24 TTC Steel NPT Crimp Fitting	1-1/2-11-1/2	24	2.36 in
1AA2MP4 TTC Steel NPT Crimp Fitting	1/8-27	04	0.92 in
1AA32MP32 TTC Steel NPT Crimp Fitting	2-11-1/2	32	2.61 in
1AA4MP6 TTC Steel NPT Crimp Fitting	1/4-18	06	1.18 in
1AA4MP8 TTC Steel NPT Crimp Fitting	1/4-18	08	1.23 in
1AA6MP4 TTC Steel NPT Crimp Fitting	3/8-18	04	0.98 in
1AA8MP10 TTC Steel NPT Crimp Fitting	1/2-14	10	1.58 in
1AA8MP12 TTC Steel NPT Crimp Fitting	1/2-14	12	1.6 in
1AA8MP6 TTC Steel NPT Crimp Fitting	1/2-14	06	1.28 in
1AA16MP12 TTC Steel NPT Crimp Fitting	1-11-1/2	12	1.61 in
1AA20MP16 TTC Steel NPT Crimp Fitting	1-1/4-11-1/2	16	1.72 in

Product Questions & Answers (3)

Question by: Dwayne H on Mar 24, 2025, 8:34 PM

got a -08 hose here, does this fitting match up as a straight male pipe end?

Answer by: Customer Support on Mar 26, 2025, 12:51 PM

For a quick fit check, it’s a straight steel crimp fitting built for -08 hose with a 3/4-14 male NPTF pipe thread on the other end.

Question by: Billy H on Feb 1, 2026, 1:52 PM

fitting says it works with H277 or H435 hose, does that mean it won't hold up on other hose types, or is that just a recommendation for shock situations?

Answer by: Customer Support on Feb 3, 2026, 6:54 AM

Those two hose types are specifically called out for use where shock hazards are present. The fitting itself is rated for general purpose low and medium pressure hydraulic applications, so it can be used in standard setups. The H277 and H435 callout is about handling shock loads safely, not a hard restriction on every other hose in normal service conditions.

Question by: Sherry R on Mar 3, 2026, 7:40 PM

Will this fitting hold up okay in a hydraulic system that sees regular shock?

Answer by: Customer Support on Mar 5, 2026, 7:32 AM

It is indeed designed to handle environments where shock hazards are present, especially when paired with H277 or H435 hoses.
