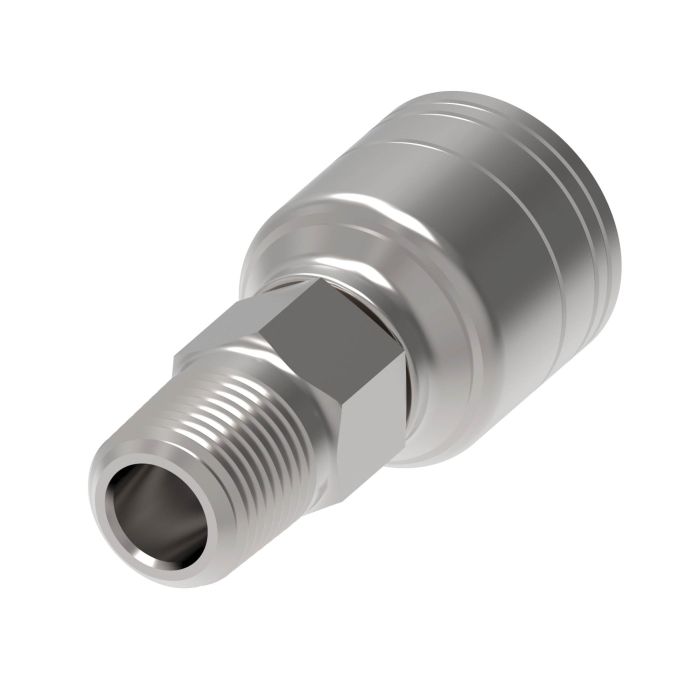

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/4-18 Male NPT, -06 Hose, Straight

Description & Features

The Aeroquip by Danfoss / Eaton 1A Series Crimp Hose Fittings are designed for general-purpose low and medium pressure hydraulics. These fittings are constructed from steel and are suitable for use with TTC 1 & 2 wire braid hoses.

The fitting is engineered to accommodate a 0.25 inch NPTF male end and a -06 hose interface. Specifically, the fitting features a thread specification of 1/4-18, ensuring compatibility with similarly threaded components. The hex size for the hose interface is 0.69 inches, providing solid integration and durability.

It's built for applications where shock hazards exist, such as using H277 or H435 hoses. As a product from Danfoss Power Solutions, this crimp fitting showcases quality and reliability suitable for various hydraulic applications. The need for a mandrel is eliminated with this model, making installation straightforward and efficient.

End type and gender specifications ensure that the fitting aligns well with your hydraulic system requirements.

MPN: C1AQ19

Supplier Part Number: 1AA4MP6

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.02 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Crimp	Cut-Off Factor 1.18 in	d Dimensions 1.18 in	Dimension Standards SAE J1176	Dimensions 2.18 in L x 1.07 in W x 1.07 in H	End Gender 1 Male	End Size 1 1/4 in	End Size 2 3/8 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With EC210, EC881, GH663, GH681 and GH781 Series Hoses	Hex Size 11/16 in	Hose Dash Size 06	Inside Diameter 0.26 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 1/4-18	Thread Type NPTF

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA16MP16 TTC Steel NPT Crimp Fitting	1-11-1/2	16	1.86 in
1AA4MP4 TTC Steel NPT Crimp Fitting	1/4-18	04	1.14 in
1AA6MP6 TTC Steel NPT Crimp Fitting	3/8-18	06	1.28 in
1AA6MP8 TTC Steel NPT Crimp Fitting	3/8-18	08	1.32 in
1AA8MP8 TTC Steel NPT Crimp Fitting	1/2-14	08	1.57 in
1AA12MP10 TTC Steel NPT Crimp Fitting	3/4-14	10	1.4 in
1AA12MP12 TTC Steel NPT Crimp Fitting	3/4-14	12	1.65 in
1AA12MP16 TTC Steel NPT Crimp Fitting	3/4-14	16	1.67 in
1AA12MP8 TTC Steel NPT Crimp Fitting	3/4-14	08	1.39 in
1AA24MP24 TTC Steel NPT Crimp Fitting	1-1/2-11-1/2	24	2.36 in
1AA2MP4 TTC Steel NPT Crimp Fitting	1/8-27	04	0.92 in
1AA32MP32 TTC Steel NPT Crimp Fitting	2-11-1/2	32	2.61 in
1AA4MP8 TTC Steel NPT Crimp Fitting	1/4-18	08	1.23 in
1AA6MP4 TTC Steel NPT Crimp Fitting	3/8-18	04	0.98 in
1AA8MP10 TTC Steel NPT Crimp Fitting	1/2-14	10	1.58 in
1AA8MP12 TTC Steel NPT Crimp Fitting	1/2-14	12	1.6 in
1AA8MP6 TTC Steel NPT Crimp Fitting	1/2-14	06	1.28 in
1AA16MP12 TTC Steel NPT Crimp Fitting	1-11-1/2	12	1.61 in
1AA20MP16 TTC Steel NPT Crimp Fitting	1-1/4-11-1/2	16	1.72 in

Product Questions & Answers (3)

Question by: Rex W on Jun 28, 2025, 2:37 PM

trying to replace a straight male pipe end on my -06 hose, is this the right one with 1/4-18 threads?

Answer by: Customer Support on Jun 30, 2025, 6:16 AM

You are looking at a straight steel crimp fitting that mates to a -06 hose and has a 1/4-18 male NPTF pipe thread on the other end. If your old end is 1/4-18 male NPTF and it crimps onto -06 hose, that matches the key sizing on this fitting.

Question by: Billy D on Oct 27, 2025, 4:16 PM

Will this fitting hold up okay in a hydraulic system that sees some shocks from time to time?

Answer by: Customer Support on Oct 29, 2025, 7:05 AM

Specifically, this fitting is suitable where you have shock hazards, especially when paired with H277 or H435 hoses.

Question by: Howard G on Mar 3, 2026, 6:31 PM

fitting says no mandrel needed, does that mean i can crimp this straight onto a -06 hose without any extra tooling inside the hose end?

Answer by: Customer Support on Mar 5, 2026, 6:40 AM

Correct, no mandrel is required for this fitting. That simplifies the crimp process quite a bit since you're not having to source or seat a separate internal component before crimping. Just prep your -06 hose end and crimp directly using compatible tooling for the 1A series. It keeps the assembly process cleaner and cuts down on steps at the bench.
