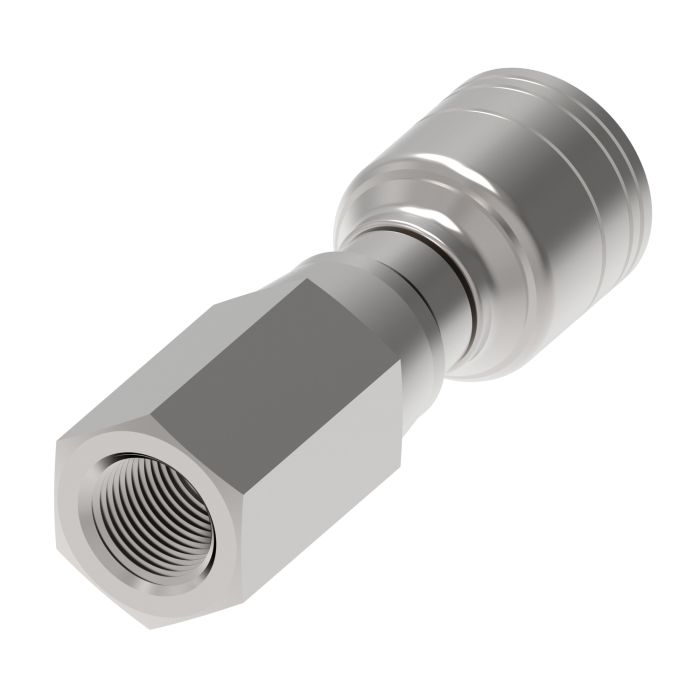

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/4-18 Female NPT Swivel, -04 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting 1/4-18 Female NPT Swivel -04 Hose Straight is engineered for general purpose low and medium pressure hydraulics. Designed for use with H277 or H435 hoses it is well-suited to applications where shock hazards are present ensuring stable and efficient hydraulic connections.

This high-quality crimp fitting manufactured by Danfoss Power Solutions (II LLC Aeroquip) features a robust female end type and a secure 0.25 end size. Its NPTF threads provide reliable connections and it requires no mandrel for installation streamlining the assembly process. The straight configuration of this fitting adds to its versatility and ease of use.

The Aeroquip TTC Steel Crimp Fittings are known for their durability and compatibility with a range of hydraulic systems supporting efficient performance in demanding environments. The fittings design ensures optimal functionality and reliability in various applications.

MPN: EAR99

Supplier Part Number: 1AA4PF4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Pipe Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female Pipe Swivel Stud
Construction Style
Crimp
Cut-Off Factor
1.95 in
d Dimensions
1.95 in
Dimension Standards
SAE J1176
Dimensions
2.87 in L x 0.88 in W x 0.88 in H
End Gender 1
Female
End Size 1
1/4 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
3/4 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18
Thread Type
NPTF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/8-18 Female NPT Swivel, -06 Hose, Straight

1AA6PF6 TTC Steel NPT Crimp Fitting

3/8-18

06

1.97 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-14 Female NPT Swivel, -08 Hose, Straight

1AA8PF8 TTC Steel NPT Crimp Fitting

1/2-14

08

2.41 in

Product Questions & Answers (3)

Question by: Ray H on Sep 2, 2025, 12:43 PM
fitting says it works with H277 or H435 hose, does it matter which one I use, or are they interchangeable for this application?
Answer by: Customer Support on Sep 4, 2025, 6:32 AM
Both hoses are compatible with this fitting, but they aren't the same. H277 and H435 are listed for use where shock hazards are present, so the choice between them usually comes down to your specific system requirements and what pressure range you're working within. Either one will work with this crimp fitting in general purpose low and medium pressure hydraulic setups.
Question by: Brenda M on May 14, 2025, 3:44 PM
Will this fitting hold up okay in a hydraulic system for a log splitter I'm building?
Answer by: Customer Support on May 16, 2025, 6:32 AM
For general purpose low to medium pressure hydraulic systems like log splitters, this crimp fitting should work just fine, especially if you're using H277 or H435 hoses.
Question by: Jean H on Dec 23, 2025, 9:28 AM
got a -04 hose here, will this straight crimp end work with it or am i chasing the wrong part
Answer by: Customer Support on Dec 24, 2025, 10:08 AM
For hose fit, it matches a -04 hose size and it’s meant to be crimped onto H277 or H435 hose. The hose side is the line hose tube end, and the other end is a 1/4-18 female NPTF swivel.
