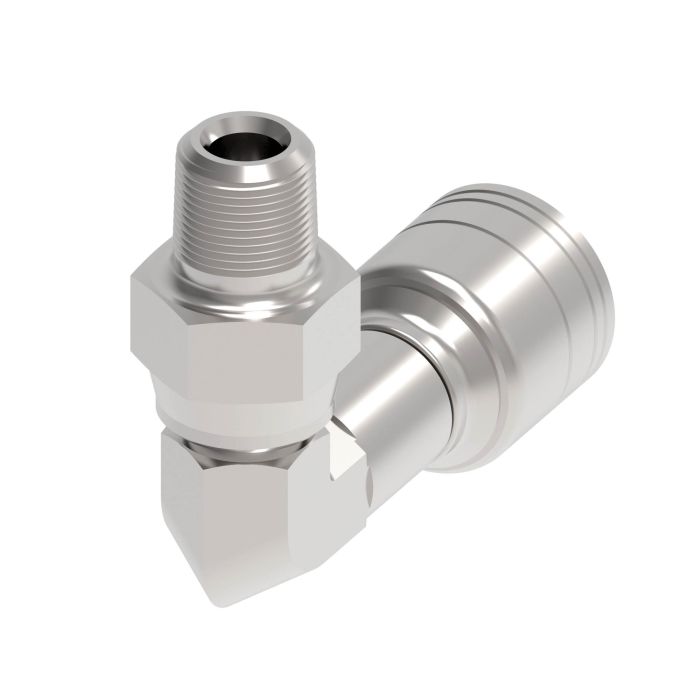

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/8-18 Male NPT Swivel, -06 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Eaton Aeroquip Male Pipe Swivel 90 Elbow from Danfoss Power Solutions is a high-performance crimp fitting for general purpose low and medium pressure hydraulics.

This steel crimp fitting features a 3/8-18 male NPT swivel connector and is compatible with -06 size hoses. It is designed to be used with either H277 or H435 hose types providing reliable performance even in environments with shock hazards.

The 90-degree elbow configuration aids in space optimization within hydraulic systems making it a versatile choice for various applications. The rugged steel construction ensures longevity and resilience under demanding conditions eliminating the need for a mandrel during installation.

With a drop dimension of 1.8000 this fitting offers precise fitment and robust sealing without the need for thread sealant. The end sizes of 0.375 and end types NPTF for line/hose/tube connections ensure compatibility and secure connections.

MPN: 1AA6PSB6

Supplier Part Number: 1AA6PSB6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.33 in
b Dimensions
1.8 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male SAE ORB
Connection Type 1
Hose
Connection Type 2
Male SAE Adjustable ORB
Construction Style
Crimp
Cut-Off Factor
1.33 in
d Dimensions
1.33 in
Dimension Standards
SAE J1176
Drop Dimensions
1.8 in
End Gender 1
Male
End Size 1
3/8 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
7/8 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18
Thread Type
NPTF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions a Dimensions b Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-14 Male NPT Swivel, -08 Hose, 90 deg Elbow

1AA8PSB8 TTC Steel NPT Crimp Fitting

1/2-14

08

1.51 in

2.68 in

2.05 in

Product Questions & Answers (2)

Question by: Troy R on Sep 19, 2025, 9:41 AM
got a -06 hose and need a 90 to get around a bracket. is this the one with the 3/8-18 male pipe swivel?
Answer by: Customer Support on Sep 21, 2025, 6:11 AM
For that setup, it matches a -06 hose and uses a 3/8-18 male NPT swivel end in a 90 degree elbow, so it’s meant for tight routing while keeping the pipe connection size consistent.
Question by: Tony M on Jul 21, 2025, 6:12 PM
fitting says it works with H277 or H435 hose, does that mean it won't crimp onto other -06 hose types I might already have on hand?
Answer by: Customer Support on Jul 23, 2025, 9:03 AM
For this particular fitting, H277 and H435 are the specified compatible hose types, and those are especially called out for use where shock hazards are a concern. If you're working with a different -06 hose, you'd want to confirm it falls under one of those two designations before crimping. The -06 hose size is correct, but the hose type does matter for getting a proper crimp and maintaining reliable performance.
