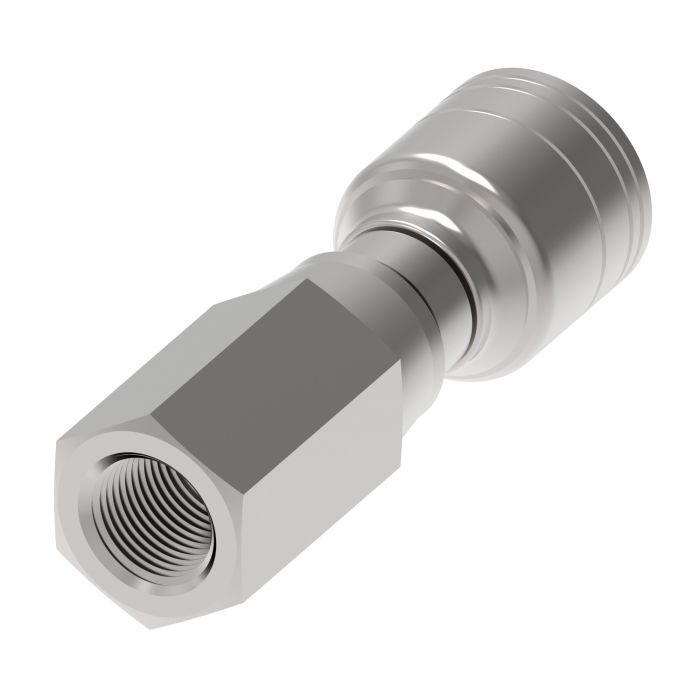

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-14 Female NPT Swivel, -08 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting with a 1/2-14 Female NPT Swivel ensures robust and reliable connections for low and medium pressure hydraulic applications. Suitable for -08 hose sizes this straight fitting is designed to provide a secure and leak-free connection in demanding industrial environments.

Engineered by Danfoss Power Solutions (II LLC Aeroquip) this fitting is crafted from high-quality steel providing durability and longevity. It does not require a mandrel simplifying the installation process and saving time.

The fitting is particularly useful where shock hazards exist and can be used with H277 or H435 hoses. Its NPTF threading ensures compatibility with various hydraulic systems contributing to its versatility.

MPN: C1FW45

Supplier Part Number: 1AA8PF8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.41 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Pipe Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female Pipe Swivel Stud
Construction Style
Crimp
Cut-Off Factor
2.41 in
d Dimensions
2.41 in
Dimension Standards
SAE J1176
Dimensions
3.58 in L x 1.22 in W x 1.22 in H
End Gender 1
Female
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.06 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14
Thread Type
NPTF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/8-18 Female NPT Swivel, -06 Hose, Straight

1AA6PF6 TTC Steel NPT Crimp Fitting

3/8-18

06

1.97 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/4-18 Female NPT Swivel, -04 Hose, Straight

1AA4PF4 TTC Steel NPT Crimp Fitting

1/4-18

04

1.95 in

Product Questions & Answers (2)

Question by: Jimmy P on Mar 24, 2026, 4:17 PM
Just want to make sure, will this fitting work with my H277 hose?
Answer by: Customer Support on Mar 26, 2026, 8:34 AM
Yes, this fitting is designed to work with H277 hose, especially where there might be shock hazards. It's also compatible with H435 hose if that's what you're using.
Question by: Rick C on Jun 10, 2025, 1:53 PM
fitting says it works for 1 and 2 wire braid hose, does that mean i can use it on either type or do i need a specific one for each?
Answer by: Customer Support on Jun 12, 2025, 9:33 AM
Both hose constructions are covered with a single fitting here. Whether you've got 1-wire or 2-wire braid hose on hand, this fitting is built to work with either. Just make sure you're running -08 hose size and you're good to go.
