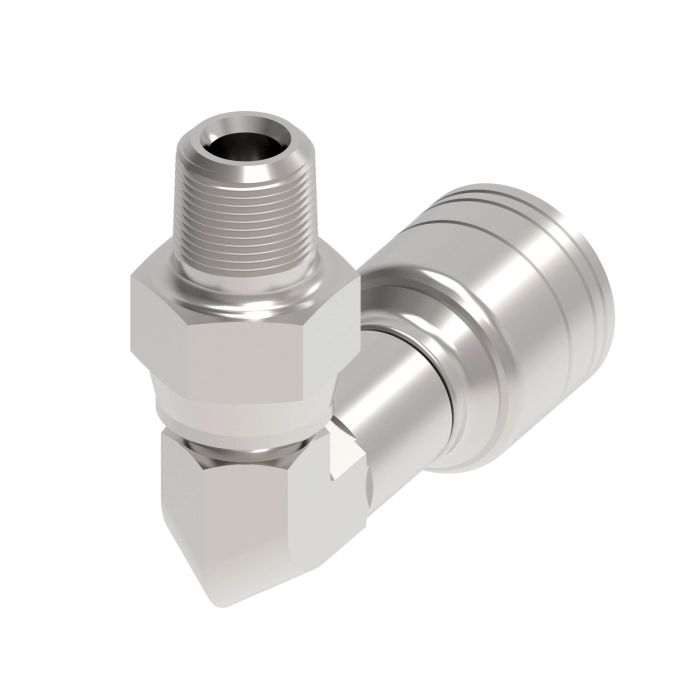

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1/2-14 Male NPT Swivel, -08 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is expertly designed for general purpose low and medium pressure hydraulics providing a reliable solution for a variety of industrial needs. This fitting features a 1/2-14 Male NPT Swivel with a -08 Hose and is constructed with a 90-degree elbow for optimal flexibility in confined spaces.

Aimed at addressing shock hazards it is best utilized with H277 or H435 hoses. The fitting meticulously engineered by Danfoss Power Solutions (II LLC Aeroquip) guarantees superior durability and performance. It is crafted with steel for robust and long-lasting use.

This 1/2-inch NPT fitting does not require a mandrel or thread sealant simplifying installation and maintenance processes. With a hex size of 0.75 inches on the second end the fitting ensures secure and tight connections.

Its application in industrial sectors underscores its versatility and reliability reinforcing the trust in the Aeroquip brand.

MPN: C1KJ26

Supplier Part Number: 1AA8PSB8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.68 in
b Dimensions
2.05 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male SAE ORB
Connection Type 1
Hose
Connection Type 2
Male SAE Adjustable ORB
Construction Style
Crimp
Cut-Off Factor
1.51 in
d Dimensions
1.51 in
Dimension Standards
SAE J1176
Drop Dimensions
2.05 in
End Gender 1
Male
End Size 1
1/2 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
0.75 x 0.938 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14
Thread Type
NPTF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions a Dimensions b Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/8-18 Male NPT Swivel, -06 Hose, 90 deg Elbow

1AA6PSB6 TTC Steel NPT Crimp Fitting

3/8-18

06

1.33 in

2.33 in

1.8 in

Product Questions & Answers (3)

Question by: Freddie P on Sep 30, 2025, 9:02 AM
Will this fitting hold up okay for general hydraulic work on my farm equipment, or is it meant for lighter duty?
Answer by: Customer Support on Oct 1, 2025, 8:16 PM
Designed for general purpose low and medium pressure hydraulic applications, this fitting should work well for standard farm equipment tasks. It's also recommended for use with H277 or H435 hoses if you're dealing with shock hazards.
Question by: Warren S on Jan 6, 2026, 9:46 AM
trying to swap out an old elbow fitting i’ve got, is this one the 1/2-14 male npt swivel with a -08 hose end?
Answer by: Customer Support on Jan 7, 2026, 3:05 PM
You are looking at a 1/2-14 male NPTF swivel on one end and a -08 hose end on the other, built as a 90 degree elbow. The hex on the hose side is 0.75 inch, which can help when you are matching what you already have.
Question by: Clint W on Oct 12, 2025, 5:52 PM
got a tight spot under a piece of equipment where the hose needs to change direction, does this fitting have a 90-degree elbow, or is it a straight end?
Answer by: Customer Support on Oct 14, 2025, 6:19 AM
it's a 90-degree elbow configuration, so it handles direction changes right at the connection point. That makes it a solid pick when you're working in a tight or confined area and a straight fitting just won't lay right. The swivel on the male NPT end also helps with alignment when you're threading it in.
