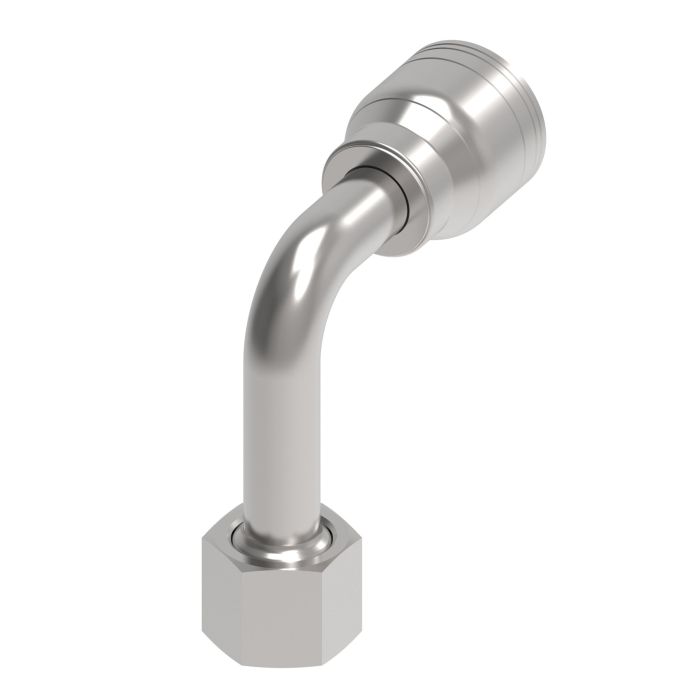

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

The Aeroquip MMC fitting is crafted for robust hydraulic applications and is ideal for low and medium pressure environments. Featuring a 1-3/16-12 thread size and a female O-ring face seal swivel this fitting is designed for precision and reliability. This steel crimp fitting supports a -12 hose and comes with a long 90-degree elbow ensuring versatile installation options. The fitting is suitable for use with H277 or H435 to combat shock hazards delivering dependable performance in demanding conditions. With a drop dimension of 3.7800 inches this product ensures a precise fit and superior sealing capabilities. Its construction eliminates the need for a mandrel simplifying the installation process.

Supplier Part Number: 1AA12FRC12

MPN: 1AA12FRC12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.55 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.3 in
d Dimensions
2.29 in
Dimension Standards
SAE J1176
Dimensions
4.17 in L x 1.563 in W x 5.131 in H
Drop Dimensions
3.78 in
End Connection Torque
65 to 70 lb-ft
End Gender 1
Female
End Size 1
12
End Size 2
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
3.78 in
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.58 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Long 90 deg Elbow

1AA10FRC10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

2.76 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Long 90 deg Elbow

1AA8FRC8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.7 in

2.55 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Long 90 deg Elbow

1AA16FRC16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.86 in

4-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA4FRC4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA6FRC4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA6FRC6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA8FRC6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.71 in

2.55 in

Product Questions & Answers (3)

Question by: Steve H on Dec 12, 2025, 7:33 AM
Will this fitting work with a standard -12 hose, or does it need something special?
Answer by: Customer Support on Dec 14, 2025, 7:19 AM
Yes, this steel crimp fitting is made to work with a -12 hose.
Question by: Shawn P on Apr 24, 2025, 2:55 PM
fitting says it works for low and medium pressure hydraulics, does that mean i cant run it on anything with shock loads or is there a workaround?
Answer by: Customer Support on Apr 26, 2025, 7:37 AM
For lines where shock loads or pressure spikes are a concern, you'd want to pair this fitting with H277 or H435 hose. That combination is specifically called out for shock hazard situations, so you're not stuck avoiding those conditions entirely, you just need the right hose matched to it.
Question by: Chad D on Jun 17, 2025, 7:01 PM
trying to swap out an old hose end, is this one a -12 with a 90 and a female ORFS swivel
Answer by: Customer Support on Jun 19, 2025, 4:20 PM
It’s a steel crimp fitting for -12 hose with a long 90 degree elbow, and the end is a 1-3/16-12 female O-ring face seal swivel.
