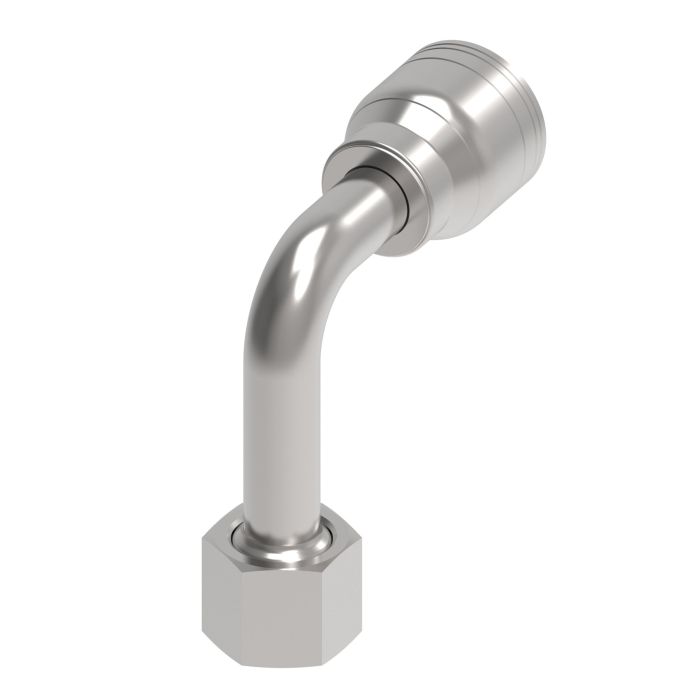

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

This durable fitting is suitable for general-purpose low and medium-pressure hydraulic systems. Featuring a long 90-degree elbow design it facilitates a seamless connection in complex assembly environments. The 1-7/16-12 Female O-Ring Face Seal Swivel ensures a leak-proof seal enhancing reliability in demanding applications.

Manufactured by Danfoss Power Solutions this fitting is engineered from high-quality steel to withstand harsh conditions. The -16 hose compatibility and 4.5-inch drop dimension make it a versatile component in hydraulic setups requiring precise alignment.

Optimized for use with H277 or H435 hoses especially where shock hazards are a concern this crimp fitting integrates effortlessly within existing systems. The fitting does not require thread sealant or a mandrel simplifying installation processes.

MPN: C1AP75

Supplier Part Number: 1AA16FRC16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.38 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.87 in
d Dimensions
2.86 in
Dimension Standards
SAE J1176
Dimensions
5.03 in L x 1.94 in W x 6.06 in H
Drop Dimensions
4-1/2 in
End Connection Torque
92 to 100 lb-ft
End Gender 1
Female
End Size 1
16
End Size 2
1 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
4-1/2 in
Hex Size
1-5/8
Hose Dash Size
16
Inside Diameter
0.81 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Long 90 deg Elbow

1AA10FRC10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

2.76 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Long 90 deg Elbow

1AA8FRC8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.7 in

2.55 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Long 90 deg Elbow

1AA12FRC12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.29 in

3.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA4FRC4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA6FRC4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA6FRC6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA8FRC6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.71 in

2.55 in

Product Questions & Answers (1)

Question by: Tommy T on Jan 13, 2026, 4:54 PM
got a -16 hose and need a long drop 90 to tuck it in tight. is this the one with the female ORFS swivel?
Answer by: Customer Support on Jan 15, 2026, 6:34 AM
For a -16 hose hookup, this is a long 90 degree elbow crimp fitting with a 1-7/16-12 Female O-Ring Face Seal (ORFS) swivel end. It’s meant to help in tighter, more complicated routing where you need the extra drop for alignment.
