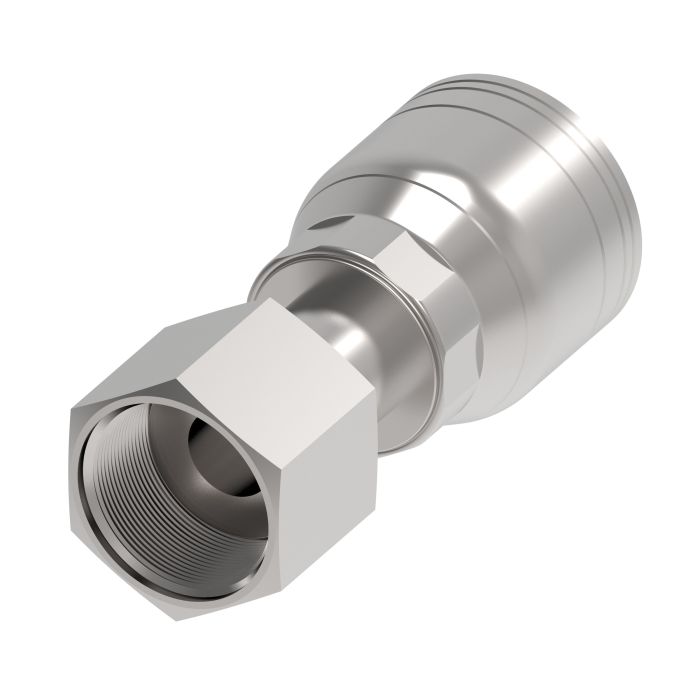

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Straight

Ask A Question

Description & Features

The Aeroquip TTC Steel Crimp Fitting, a robust solution for general-purpose low and medium-pressure hydraulics, ensures dependable performance in demanding environments. This fitting features a 9/16-18 female O-ring face seal swivel end and is compatible with a -04 hose, making it ideal for use with H277 or H435 hoses where shock hazards exist.

Designed for easy integration, this fitting doesn't require a mandrel and uses a straight configuration that simplifies installation. The hex size of 0.56 on the second end allows for secure fastening, ensuring a reliable connection in hydraulic systems.

Manufactured under the renowned Danfoss Power Solutions brand, this fitting meets high industry standards, offering superior quality and reliability for various hydraulic applications.

MPN: C1AP97

Supplier Part Number: 1AA4FR4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.87 in
Compatible Hose ID
1/4 in
Compatible Tube OD
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.03 in
d Dimensions
1.03 in
Dimension Standards
SAE J1176
Dimensions
2.32 in L x 0.88 in W x 0.88 in H
End Gender 1
Female
End Size 1
9/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
0.669 x 0.551 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF
Tube Outside Diameter 1
1/4 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA6FR6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.24 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA10FR10 TTC Steel ORS Crimp Fitting

1-14S

10

1.61 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA10FR12 TTC Steel ORS Crimp Fitting

1-14S

12

1.62 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA10FR8 TTC Steel ORS Crimp Fitting

1-14S

08

1.47 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA12FR12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

1.62 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA16FR16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

1.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 2-12 Female O-Ring Face Seal Swivel, -24 Hose, Straight

1AA24FR24 TTC Steel ORS Crimp Fitting

2-12

24

2.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Straight

1AA6FR4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.12 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA8FR6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.32 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA8FR8 TTC Steel ORS Crimp Fitting

13/16-16

08

1-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, Straight

1AA20FR20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

2.33 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA12FR10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

1.63 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA12FR8 TTC Steel ORS Crimp Fitting

1-3/16-12

08

1.63 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA16FR12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

1.79 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA20FR16 TTC Steel ORS Crimp Fitting

1-11/16-12

16

1.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA4FR6 TTC Steel ORS Crimp Fitting

9/16-18

06

1.15 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA6FR8 TTC Steel ORS Crimp Fitting

11/16-16

08

1.34 in

Product Questions & Answers (1)

Question by: Pete E on Nov 22, 2025, 9:48 PM
Will this crimp fitting work with standard -04 hydraulic hose that's got the 2 wire braid construction?
Answer by: Customer Support on Nov 24, 2025, 6:10 AM
Absolutely, that's exactly what it's built for. Global TTC designed this fitting specifically to work with both 1 and 2 wire braid steel hydraulic hoses in the -04 size. The crimp design creates a secure, permanent connection once you get it properly crimped with the right tooling.
