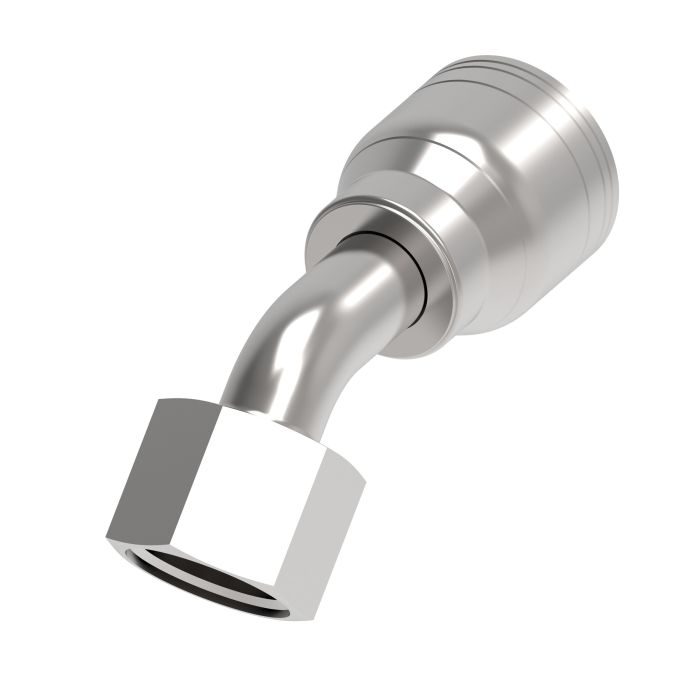

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is expertly designed by Danfoss Power Solutions (II LLC Aeroquip) to meet the demanding needs of general-purpose low and medium pressure hydraulic systems. It features a 9/16-18 female O-ring face seal swivel end and is compatible with -04 hose sizes.

This crimp fitting includes a 45-degree elbow configuration ensuring efficient installation in complex hydraulic setups. It is engineered with high-quality steel providing robust durability and reliability in environments where shock hazards are present. The Aeroquip TTC Steel Crimp Fittings are recognized for their consistent performance in various industrial applications.

The fitting's application extends across multiple hydraulic scenarios requiring robust and precise connections supporting optimal hydraulic functionality. The end sizes are 0.5625 and 0.25 making it versatile for different hose and line configurations without the need for a mandrel.

Catalog Number: C1AP99

Supplier Part Number: 1AA4FRA4

ECCN: EAR99

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.03 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.2 in
d Dimensions
1.2 in
Dimension Standards
SAE J1176
Dimensions
2.83 in L x 0.88 in W x 1.51 in H
Drop Dimensions
0.41 in
End Connection Torque
10 to 12 lb-ft
End Gender 1
Female
End Size 1
9/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.41 in
Hex Size
0.67 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA6FRA4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.38

0.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA6FRA6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.43

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (1)

Question by: Rhonda G on Jul 15, 2025, 7:55 PM
got a tight spot on a -04 line, is this the crimp end with the 45 elbow and the female ORFS swivel?
Answer by: Customer Support on Jul 17, 2025, 6:38 AM
For a -04 hose in a cramped run, this one matches that setup. It is a steel crimp fitting with a 45 degree elbow and a 9/16-18 female O-ring face seal swivel end.
