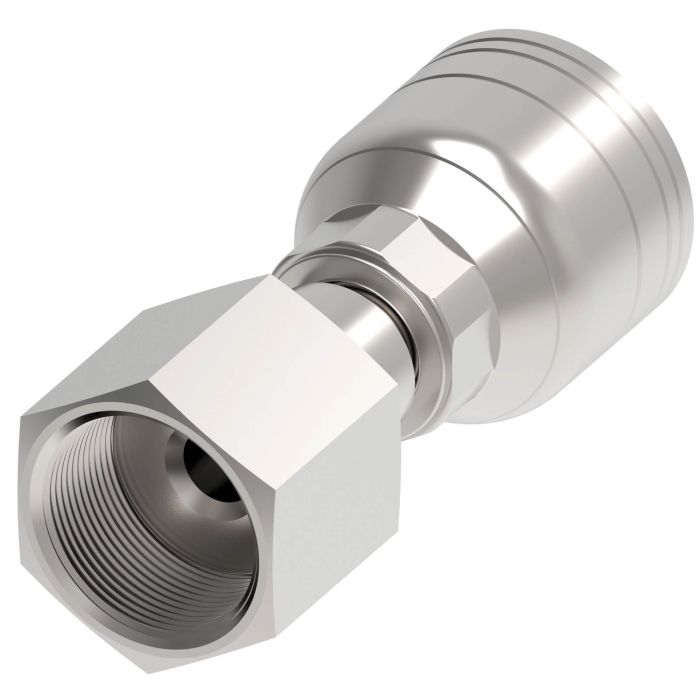

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, designed by Danfoss Power Solutions (II LLC Aeroquip), is essential for general-purpose low and medium-pressure hydraulic applications, specifically where shock hazards may arise. This fitting features an 11/16-16 female O-Ring face seal swivel for secure connections and uses a -04 hose with a straight configuration.

The high-quality steel construction ensures durability and reliability under varying conditions. With a torque rating of 18-20 lb/ft and no requirement for a mandrel or thread sealant, installation becomes straightforward and efficient. Its end type consists of ORS and a connection to line/hose/tube, with end sizes of 0.6875 and 0.25 respectively and a hex size of 0.56.

For further specification details, the product model label is Aeroquip TTC Steel Crimp Fittings.

MPN: C1AQ38

Supplier Part Number: 1AA6FR4

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
1.12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.69
End Size 2
0.25
End Type 1
ORS
End Type 2
Line/Hose/Tube
Hex Size 2
0.56
Hose Size
-04
Mandrel Required
No
Supplier Part Number
1AA6FR4
Thread 1
11/16-16
Thread Sealant
No
Torque Rating
18-20 LB/FT
Torque Rating
18-20 LB/FT
Alternate Part Numbers
Alternate Part Number C1AQ38, Alternate Part Number MI-00302805, Alternate Part Number MINO-00015F51661
Product Weight
0.14 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA6FR6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.24

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA10FR10 TTC Steel ORS Crimp Fitting

1-14

-10

1.61

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA10FR12 TTC Steel ORS Crimp Fitting

1-14

-12

1.62

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA10FR8 TTC Steel ORS Crimp Fitting

1-14

-08

1.47

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA12FR12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

1.62

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA16FR16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

1.94

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 2-12 Female O-Ring Face Seal Swivel, -24 Hose, Straight

1AA24FR24 TTC Steel ORS Crimp Fitting

2-12

-24

2.19

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Straight

1AA4FR4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.03

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Straight

1AA6FR4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.12

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA8FR6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.32

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA8FR8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.5

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, Straight

1AA20FR20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

2.33

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA12FR10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

1.63

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA12FR8 TTC Steel ORS Crimp Fitting

1-3/16-12

-08

1.63

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA16FR12 TTC Steel ORS Crimp Fitting

1-7/16-12

-12

1.79

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA20FR16 TTC Steel ORS Crimp Fitting

1-11/16-12

-16

1.9

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA4FR6 TTC Steel ORS Crimp Fitting

9/16-18

-06

1.15

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA6FR8 TTC Steel ORS Crimp Fitting

11/16-16

-08

1.34

Product Questions & Answers (2)

Question by: Bonnie J on May 27, 2025, 7:52 PM
Hey, just checking if this swivel fitting is meant for a straight setup on -04 hose?
Answer by: Customer Support on May 29, 2025, 2:57 PM
Fits right onto -04 hoses that have one or two wire braids, and it's the straight style with a female O-ring face seal swivel at 11/16-16 thread.
Question by: Denise H on May 4, 2025, 8:22 PM
What size hose does this fitting work with?
Answer by: Customer Support on May 6, 2025, 9:09 AM
This straight crimp fitting is made to work with -04 hose.
