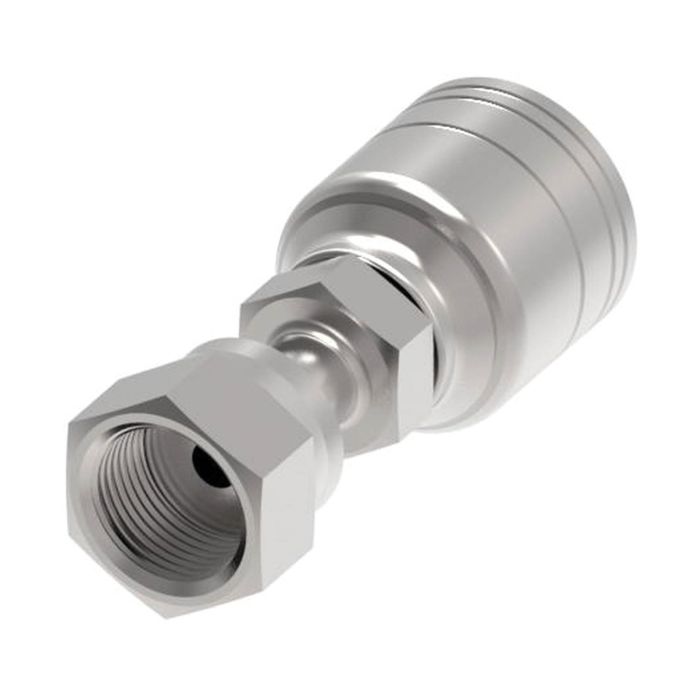

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting 11/16-16 Female O-Ring Face Seal Swivel -08 Hose Straight from Danfoss Power Solutions Aeroquip offers reliable performance in general-purpose low and medium pressure hydraulic applications.

Designed for robustness this fitting utilizes a female O-Ring Face Seal (ORS) and a -08 hose connection ensuring secure and leak-free connections in demanding environments. The fitting does not require a mandrel for installation simplifying the crimping process.

Compatible with H277 and H435 hoses where shock hazards exist this fitting ensures safe operations. The unit features a thread size of 11/16-16 enhancing its versatility across various setups.

Its durable construction makes the Global TTC Crimp Fitting suitable for diverse industrial uses accommodating efficient hydraulic system configurations.

MPN: C1AQ40

Supplier Part Number: 1AA6FR8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.35 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.34 in
d Dimensions
1.34 in
Dimension Standards
SAE J1176
Dimensions
2.88 in L x 1.22 in W x 1.22 in H
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
0.826 x 0.866 in
Hose Dash Size
08
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA6FR6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.24 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA10FR10 TTC Steel ORS Crimp Fitting

1-14S

10

1.61 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA10FR12 TTC Steel ORS Crimp Fitting

1-14S

12

1.62 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA10FR8 TTC Steel ORS Crimp Fitting

1-14S

08

1.47 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA12FR12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

1.62 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA16FR16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

1.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 2-12 Female O-Ring Face Seal Swivel, -24 Hose, Straight

1AA24FR24 TTC Steel ORS Crimp Fitting

2-12

24

2.19 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Straight

1AA4FR4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.03 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Straight

1AA6FR4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.12 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA8FR6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.32 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA8FR8 TTC Steel ORS Crimp Fitting

13/16-16

08

1-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, Straight

1AA20FR20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

2.33 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, Straight

1AA12FR10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

1.63 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -08 Hose, Straight

1AA12FR8 TTC Steel ORS Crimp Fitting

1-3/16-12

08

1.63 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Straight

1AA16FR12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

1.79 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Straight

1AA20FR16 TTC Steel ORS Crimp Fitting

1-11/16-12

16

1.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -06 Hose, Straight

1AA4FR6 TTC Steel ORS Crimp Fitting

9/16-18

06

1.15 in

Product Questions & Answers (1)

Question by: Travis B on Dec 22, 2025, 3:06 PM
Will this fitting work with Aeroquip H277 hose?
Answer by: Customer Support on Dec 24, 2025, 6:23 AM
Yes, this Global TTC crimp fitting is compatible with both H277 and H435 hoses, especially in applications where you need to worry about shock hazards.
