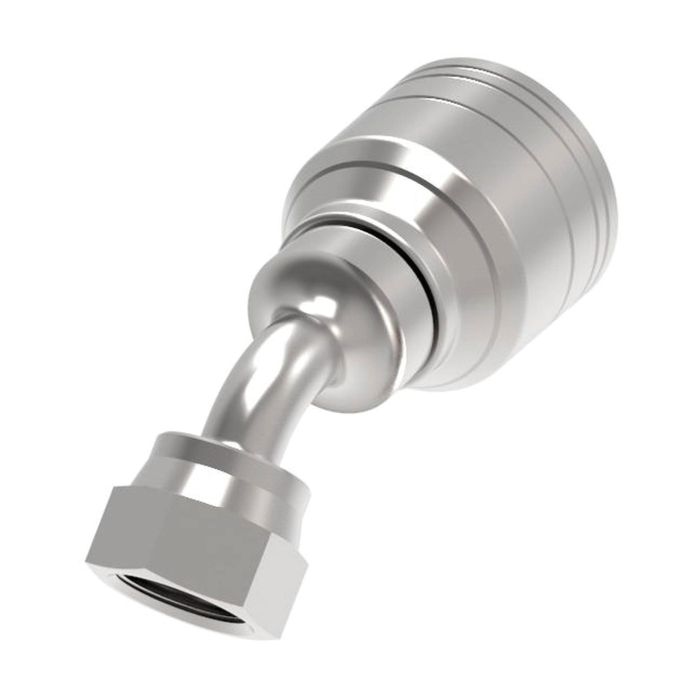

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is engineered for general-purpose low and medium pressure hydraulics. It features a 45-degree elbow and is compatible with -04 hose sizes. This fitting utilizes a 11/16-16 female O-ring face seal swivel ensuring secure connections and reliable performance in various applications.

Constructed by Danfoss Power Solutions under the Aeroquip brand this crimp fitting is ideal for environments prone to shock hazards especially when paired with H277 or H435 hoses. With an end size of 0.6875 for the female connector and 0.25 for the line/hose/tube it offers versatile usage across different hydraulic systems.

This product identified by catalog number C1AQ41 meets the ECCN EAR99 standards. Its design does not require a mandrel simplifying the installation process. The fittings drop dimension is 0.4300 contributing to its compact form factor.

Threaded with 11/16-16 and not requiring any additional thread sealant the fitting provides efficient sealing and reduced leakage risks. The combination of robust materials and precise engineering makes it a reliable choice for hydraulic applications.

MPN: 1AA6FRA4

Supplier Part Number: 1AA6FRA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.22 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.38 in
d Dimensions
1.38 in
Dimension Standards
SAE J1176
Dimensions
3.07 in L x 0.88 in W x 1.64 in H
Drop Dimensions
0.43 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.43 in
Hex Size
0.81 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA4FRA4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.2

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA6FRA6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.43

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (1)

Question by: Lee B on May 26, 2025, 8:15 AM
trying to match up a hose end, is this the one for a -04 hose with an 11/16-16 female ORFS swivel, 45 degree?
Answer by: Customer Support on May 27, 2025, 3:44 PM
The key callouts on this one are a -04 hose size, a 45 degree elbow, and an 11/16-16 female O-ring face seal swivel on the port end. It’s a steel crimp fitting meant for 1 and 2 wire braid hose.
