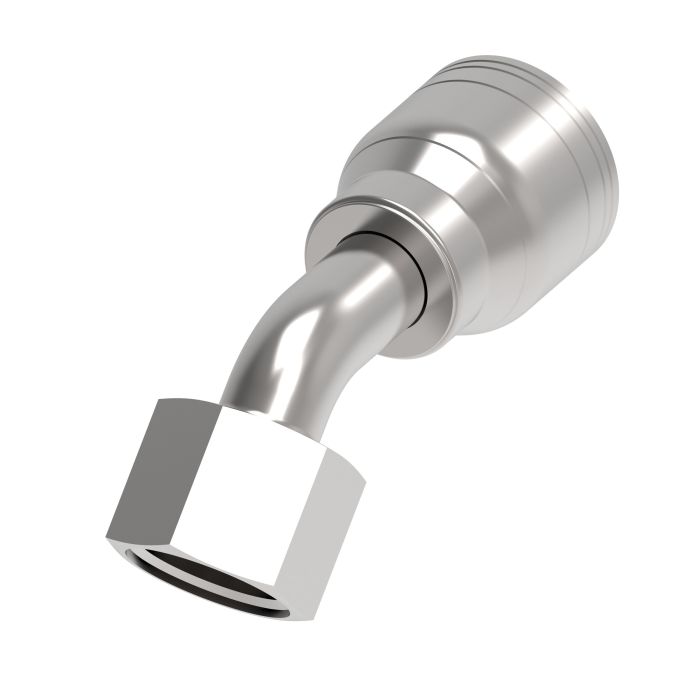

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Danfoss Power Solutions Aeroquip TTC Hose Fitting is engineered for reliability in low and medium pressure hydraulic applications. This steel crimp fitting is suitable for a wide range of uses particularly where shock hazards exist. Featuring a 45-degree elbow design it ensures optimal alignment in tight spaces. The female O-ring face seal swivel end type and ORS end type ensure secure and leak-free connections.

Fabricated with high-quality materials this fitting accommodates -06 hoses making it versatile for various connections. The 0.4300 drop dimension enhances compatibility and the 11/16-16 thread provides precise fitting. With a female end size of 0.6875 it is designed for robust performance and longevity in demanding environments.

Supplier Part Number: 1AA6FRA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.36 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.43 in
d Dimensions
1.43 in
Dimension Standards
SAE J1176
Dimensions
3.48 in L x 1.07 in W x 1.73 in H
Drop Dimensions
0.43 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.41 in
Hex Size
0.826 in
Hose Dash Size
06
Inside Diameter
0.24 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA4FRA4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.2

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA6FRA4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.38

0.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (2)

Question by: Clint M on Nov 7, 2025, 8:38 PM
trying to replace a hose end i busted, is this the 45 degree female ORFS swivel for a -06 hose with 11/16-16 threads?
Answer by: Customer Support on Nov 9, 2025, 6:07 AM
The key identifiers on this one are a 45 degree elbow, a female O-ring face seal swivel (ORS) end, -06 hose size, and 11/16-16 threads. If your old fitting matches those, it lines up with this part.
Question by: Ray P on Mar 20, 2026, 7:57 PM
fitting's got a 45 degree elbow on it, does that help much when you're trying to route a hose in a tight spot where a straight fitting just ain't gonna clear?
Answer by: Customer Support on Mar 22, 2026, 6:00 AM
That angled design makes a real difference in cramped installations. Instead of forcing a hose into a sharp bend near the connection point, the 45-degree elbow lets the hose exit at a more manageable angle, which takes stress off both the hose and the fitting. It's especially handy when you're working around frame rails, cylinder mounts, or other hardware that leaves you with limited clearance. The swivel end also helps during installation since you can rotate the fitting to dial in the hose direction without fighting the thread orientation at the same time.
