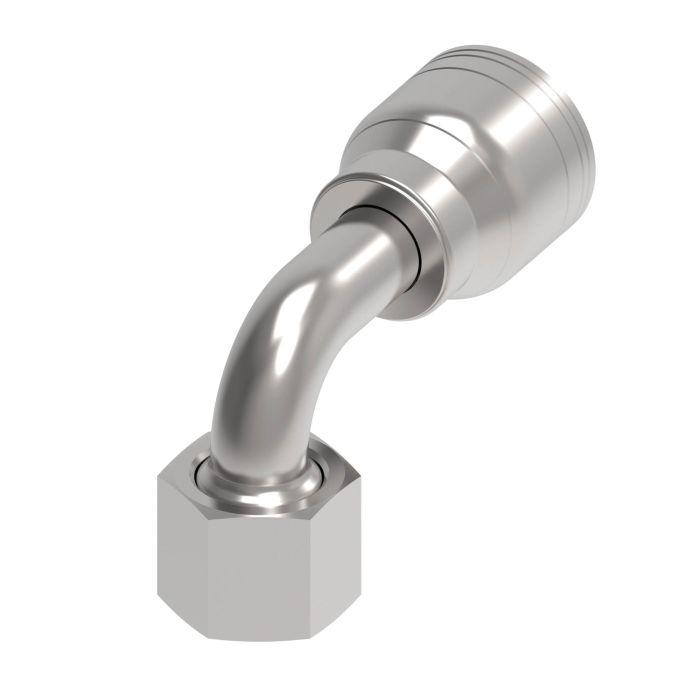

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general-purpose low and medium-pressure hydraulic applications where shock hazards exist. Specifically built for use with H277 or H435 hose sizes this fitting features a 90-degree elbow for optimal configuration in tight spaces.

The fitting includes a 0.6875 female O-Ring Face Seal Swivel end type making it suitable for robust and leak-proof connections. The 11/16-16 thread size ensures compatibility with standard hydraulic system configurations enhancing its versatility.

Constructed from steel the fitting promises durability and reliable performance in demanding environments. With a drop dimension of 0.9000 this fitting provides a precise fit and ease of installation.

MPN: C1AQ43

Supplier Part Number: 1AA6FRB4

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
1.30
Drop Dimension
0.90
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.69
End Type 1
ORS
End Type 2
Line/Hose/Tube
H
0.9 in
Hose Size
-04
Mandrel Required
No
Supplier Part Number
1AA6FRB4
Thread 1
11/16-16
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AQ43, Alternate Part Number MI-00302836, Alternate Part Number MINO-00015F51692
Product Weight
0.15 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA6FRB8 TTC Steel ORS Crimp Fitting

11/16-16

-08

1.39

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA10FRB10 TTC Steel ORS Crimp Fitting

1-14

-10

1.91

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA12FRB12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.3

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 90 deg Elbow

1AA16FRB16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.87

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA4FRB4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.17

0.82 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA6FRB6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.34

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA8FRB8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.67

1.15 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 90 deg Elbow

1AA20FRB20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.57

2.51 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA10FRB8 TTC Steel ORS Crimp Fitting

1-14

-08

1.91

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA12FRB10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.29

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA16FRB12 TTC Steel ORS Crimp Fitting

1-7/16-12

-12

2.85

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA6FRB4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.3

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA8FRB6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.62

1.15 in

Product Questions & Answers (2)

Question by: Clint G on Oct 2, 2025, 5:48 PM
Will this fitting work with standard hydraulic setups, or are there specific requirements I should know about?
Answer by: Customer Support on Oct 4, 2025, 6:02 AM
This fitting has an 11/16-16 thread size, which makes it compatible with standard hydraulic system configurations. It's also designed to work specifically with H277 or H435 hose sizes.
Question by: Brent D on Aug 22, 2025, 10:08 AM
trying to match up a hose end, is this one for a -04 hose with a 90 degree bend and a 11/16-16 female ORFS swivel?
Answer by: Customer Support on Aug 23, 2025, 12:46 PM
You’re on the right track. It’s a steel crimp fitting for -04 hose, built as a 90 degree elbow, and the end is a 11/16-16 female O-Ring Face Seal swivel (0.6875). It’s specifically called out for use with H277 or H435 hose sizes.
