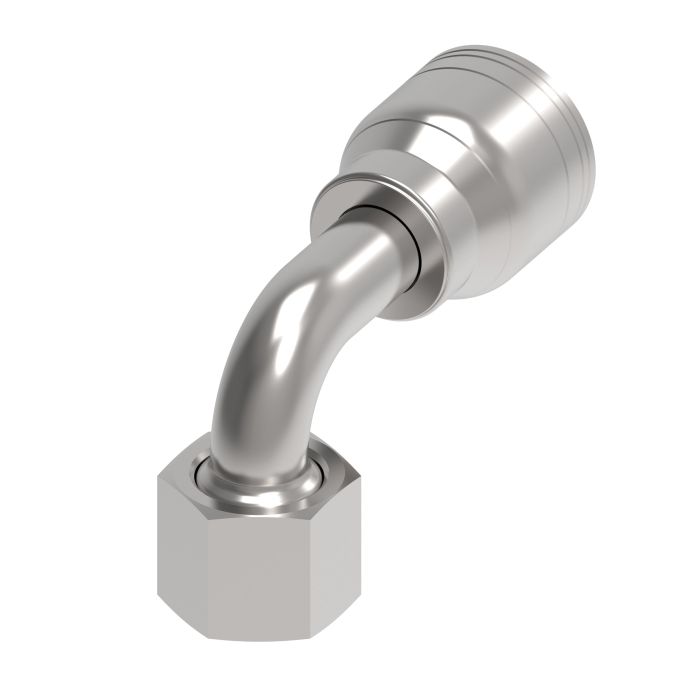

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is an essential component in various hydraulic applications. This fitting features an 11/16-16 female O-ring face seal swivel and is designed for use with a -06 hose. Its 90-degree elbow configuration ensures optimal routing and connection in restricted spaces.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip), the fitting is identified by the catalog number C1AQ44. It is suitable for general-purpose low and medium-pressure hydraulics, particularly where shock hazards exist, making it a versatile choice for various industrial uses. The use of H277 or H435 hoses is recommended for maximum compatibility and safety.

With end sizes of 0.6875 inches and 0.375 inches, this crimp fitting ensures a secure and reliable connection. The segment code is seg_code_a, denoting its category within the hydraulic components market. The fitting does not require a mandrel or thread sealant, contributing to its ease of installation and maintenance.

ECCN: EAR99

Supplier Part Number: 1AA6FRB6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.27 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.34 in
d Dimensions
1.34 in
Dimension Standards
SAE J1176
Dimensions
3.02 in L x 1.07 in W x 1.8 in H
Drop Dimensions
0.9 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.9 in
Hex Size
0.81 in
Hose Dash Size
06
Inside Diameter
0.24 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA6FRB8 TTC Steel ORS Crimp Fitting

11/16-16

08

1.39 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA10FRB10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA12FRB12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.3 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 90 deg Elbow

1AA16FRB16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.87 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA4FRB4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

0.82 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA8FRB8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.67 in

1.15 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 90 deg Elbow

1AA20FRB20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

3.57 in

2.51 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA10FRB8 TTC Steel ORS Crimp Fitting

1-14S

08

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA12FRB10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

2.29 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA16FRB12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

2.85 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA6FRB4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA8FRB6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.62 in

1.15 in

Product Questions & Answers (2)

Question by: Tony W on May 25, 2025, 2:38 PM
trying to replace a 90 degree ORFS swivel on a -06 hose, is this the one with 11/16-16 threads?
Answer by: Customer Support on May 27, 2025, 2:00 PM
It matches a -06 hose end with a 90 degree elbow and a female O-Ring Face Seal swivel that uses 11/16-16 threads on the ORFS side.
Question by: Howard H on Sep 17, 2025, 7:58 AM
does this fitting need any thread sealant or a mandrel when you're putting it together?
Answer by: Customer Support on Sep 18, 2025, 8:18 PM
No sealant or mandrel required on this one. The O-ring face seal connection handles the seal on its own, so you're not dealing with tape or paste during assembly. That keeps installation pretty straightforward, especially when you're working in a tight spot with the 90-degree elbow configuration.
