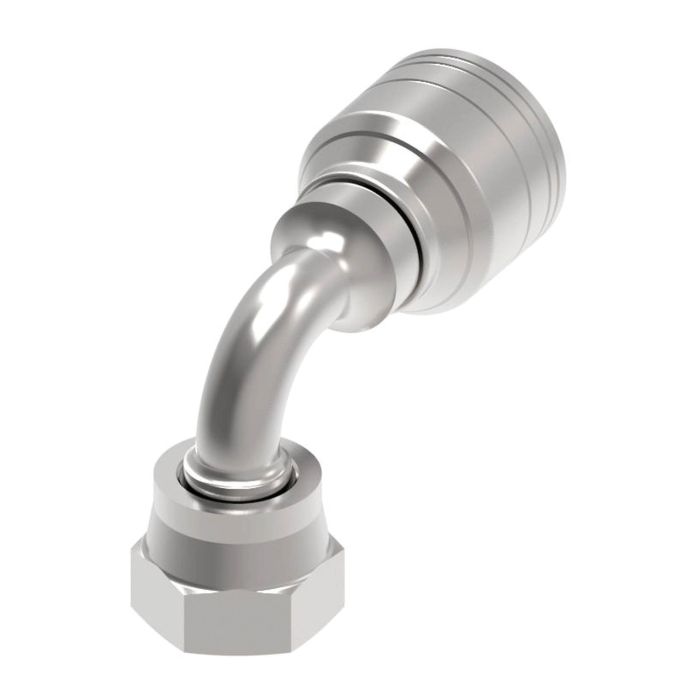

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is engineered for low and medium pressure hydraulics. It features a 11/16-16 female O-Ring Face Seal Swivel and is optimal for -08 hoses. The 90-degree elbow configuration ensures a reliable connection in industrial applications.

The female ORS swivel and 90deg; elbow design ensure compatibility and reliability. Suitable for use with H277 or H435 hoses, it is especially valuable where shock hazards exist, facilitating general-purpose hydraulic applications. No mandrel or thread sealant is required, simplifying the assembly process.

With a compact drop dimension of 0.9000 inches, this fitting is designed to fit into tight spaces. It boasts end sizes of 0.6875 and 0.5 inches respectively, supporting various hydraulic needs.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip), this fitting is part of the Aeroquip TTC Steel Crimp Fittings series.

MPN: 1AA6FRB8

Supplier Part Number: 1AA6FRB8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.39 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.39 in
d Dimensions
1.39 in
Dimension Standards
SAE J1176
Dimensions
2.96 in L x 1.22 in W x 1.88 in H
Drop Dimensions
0.9 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
0.9 in
Hex Size
0.81 in
Hose Dash Size
08
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA10FRB10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA12FRB12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.3 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 90 deg Elbow

1AA16FRB16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.87 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA4FRB4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

0.82 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA6FRB6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA8FRB8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.67 in

1.15 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 90 deg Elbow

1AA20FRB20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

3.57 in

2.51 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA10FRB8 TTC Steel ORS Crimp Fitting

1-14S

08

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA12FRB10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

2.29 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA16FRB12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

2.85 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA6FRB4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA8FRB6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.62 in

1.15 in

Product Questions & Answers (4)

Question by: Ronnie P on Aug 19, 2025, 2:17 PM
got a -08 hose and need a 90 elbow that’ll swivel into an ORFS port, is this the right fitting?
Answer by: Customer Support on Aug 20, 2025, 4:27 PM
For a -08 hose, this is a 90 degree steel crimp fitting with a female O-Ring Face Seal swivel on one end, threaded 11/16-16. The other end is the hose side for -08, so it matches what you described.
Question by: Lee A on Aug 19, 2025, 9:00 PM
skid steer takes a lot of sudden pressure spikes. is this the right fitting for high shock systems
Answer by: Customer Support on Aug 21, 2025, 3:52 PM
For setups with heavy pressure spikes or shock hazards, you need to use an H277 or H435 fitting instead. The one you are looking at is made strictly for general purpose low and medium pressure hydraulics.
Question by: Eddie J on Dec 13, 2025, 9:12 AM
Will this fitting work with a standard -08 hose I've got laying around?
Answer by: Customer Support on Dec 14, 2025, 9:24 PM
It's designed for use with -08 hoses, specifically the H277 or H435 types.
Question by: Tommy C on May 8, 2025, 10:21 AM
fitting says it works with H277 or H435 hose -- does that mean it won't crimp onto other hose types?
Answer by: Customer Support on May 10, 2025, 6:15 AM
For this particular fitting, H277 and H435 are the specified compatible hoses. H435 is called out specifically for situations where shock hazards are a concern. Running it on hose outside those two designations isn't supported by the spec, so sticking to those hose types is the right call for a reliable crimp.
