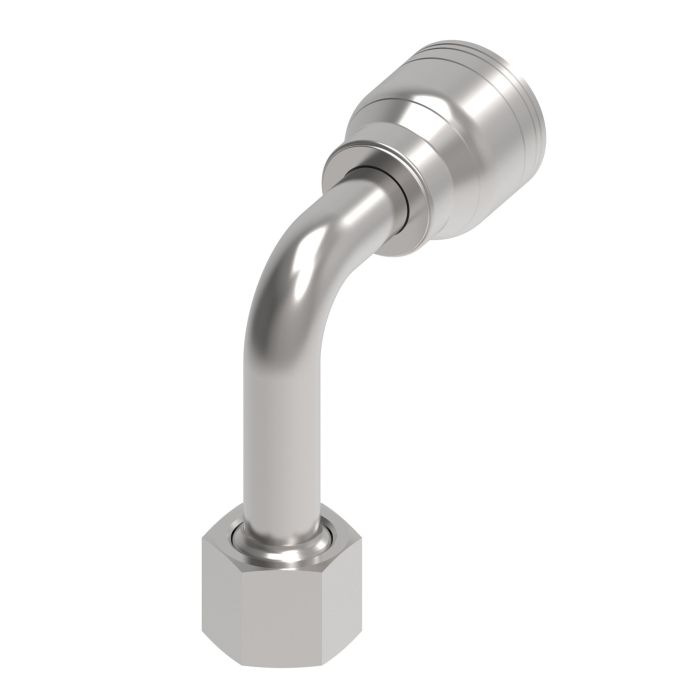

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

Danfoss Power Solutions Crimp Fitting is designed for general purpose low and medium pressure hydraulics. It features a 11/16-16 female O-ring face seal swivel and is suited for -06 hoses. The fitting comes with a long 90-degree elbow and is crafted from durable steel ensuring reliability and longevity in various industrial applications.

The Global TTC 1 & 2 wire braid steel crimp fitting is engineered to withstand shock hazards making it compatible with H277 and H435 hose types. This fitting 1AA6FRC6 integrates seamlessly into hydraulic systems requiring robust connection solutions. Its drop dimension stands at 2.1300 inches offering a reliable fit and function.

End configurations include a female ORS connection with a 0.6875 size on Thread 1 and a line/hose/tube connection with a 0.375 size. The thread sealant is not required in its application. The product's part number is 1AA6FRC6 and it is cataloged under C1AQ46 observing ECCN classification EAR99.

MPN: 1AA6FRC6

Supplier Part Number: 1AA6FRC6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.27 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.34 in
d Dimensions
1.34 in
Dimension Standards
SAE J1176
Dimensions
3.02 in L x 1.07 in W x 3.03 in H
Drop Dimensions
2.13 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
11/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
2.13 in
Hex Size
0.81 in
Hose Dash Size
06
Inside Diameter
0.24 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Long 90 deg Elbow

1AA10FRC10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

2.76 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Long 90 deg Elbow

1AA8FRC8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.7 in

2.55 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Long 90 deg Elbow

1AA12FRC12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.29 in

3.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Long 90 deg Elbow

1AA16FRC16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.86 in

4-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA4FRC4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA6FRC4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA8FRC6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.71 in

2.55 in

Product Questions & Answers (3)

Question by: Billy P on Jan 8, 2026, 7:55 AM
got a -06 hose here, will this crimp end match up with an 11/16-16 female ORFS swivel or am I barkin up the wrong tree
Answer by: Customer Support on Jan 9, 2026, 12:13 PM
It’s a -06 hose crimp fitting with an 11/16-16 female O-ring face seal swivel on the hose end. It also lists a 0.6875 size on Thread 1 for the female ORS connection, so it lines up with that 11/16-16 ORFS style connection without needing thread sealant.
Question by: Connie J on Dec 18, 2025, 7:50 PM
Will this fitting work with a standard -06 hose I picked up at the local supply store?
Answer by: Customer Support on Dec 20, 2025, 8:13 AM
It's made to fit -06 hoses, so you should be good to go with a standard size. Just double-check your measurements to be sure.
Question by: Norm H on Mar 10, 2026, 7:46 PM
fitting says it works with -06 hose, but does that cover both 1 and 2 wire braid setups or just one of em?
Answer by: Customer Support on Mar 12, 2026, 6:37 AM
Both are covered. The 1AA6FRC6 is rated for 1 and 2 wire braid hose construction in the -06 size, so you don't have to second-guess which braid type you're working with. That said, for applications where shock hazards are a concern, you'll want to pair it with H277 or H435 hose specifically.
