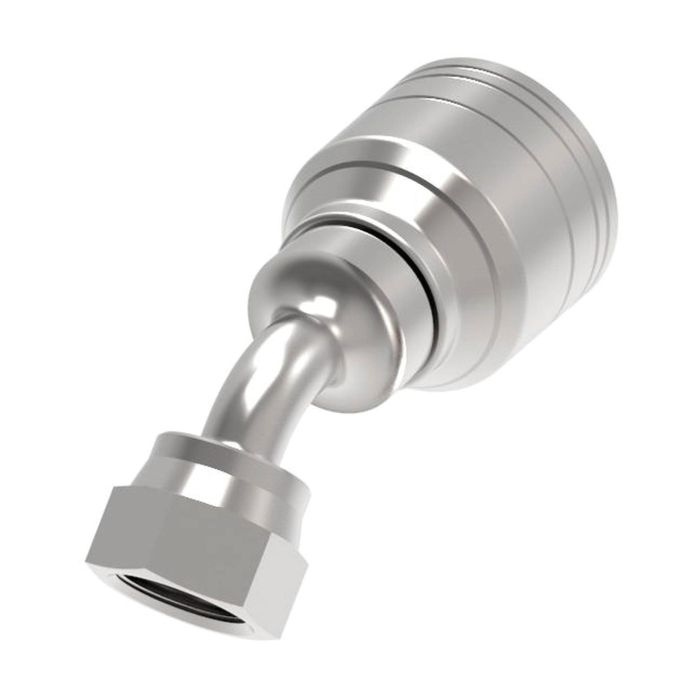

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for general-purpose low and medium-pressure hydraulics this fitting provides reliability where shock hazards exist. Featuring a 45-degree elbow it delivers precise connections with a 13/16-16 female O-ring face seal swivel ensuring optimal performance in various industrial applications.

Constructed to work seamlessly with -06 hoses it offers versatile compatibility and robust durability. The fitting measures at a drop dimension of 0.5900 and requires no mandrel or thread sealant simplifying the installation process.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this crimp fitting supports applications requiring fluid conveyance under rigorous conditions. Its design accommodates both end types: ORS and Line/Hose/Tube with end sizes of 0.8125 and 0.375 respectively.

MPN: 1AA8FRA6

Supplier Part Number: 1AA8FRA6

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
1.74
Drop Dimension
0.59
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.81
End Size 2
0.38
End Type 1
ORS
End Type 2
Line/Hose/Tube
H
0.59 in
Hose Size
-06
Mandrel Required
No
Supplier Part Number
1AA8FRA6
Thread 1
13/16-16
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AQ71, Alternate Part Number MI-00302827, Alternate Part Number MINO-00015F51683
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA4FRA4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.2

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA6FRA4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.38

0.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA6FRA6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.43

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (1)

Question by: Roger P on Apr 13, 2025, 6:01 AM
fitting's got a 45 degree elbow on it, so do I need any thread sealant to get a good seal on the o-ring face?
Answer by: Customer Support on Apr 14, 2025, 1:22 PM
No sealant needed on this one. The o-ring face seal design handles the sealing on its own, so adding thread sealant would actually be unnecessary and could cause more trouble than it's worth. No mandrel is required either, which makes the installation pretty straightforward compared to some other crimp fittings.
