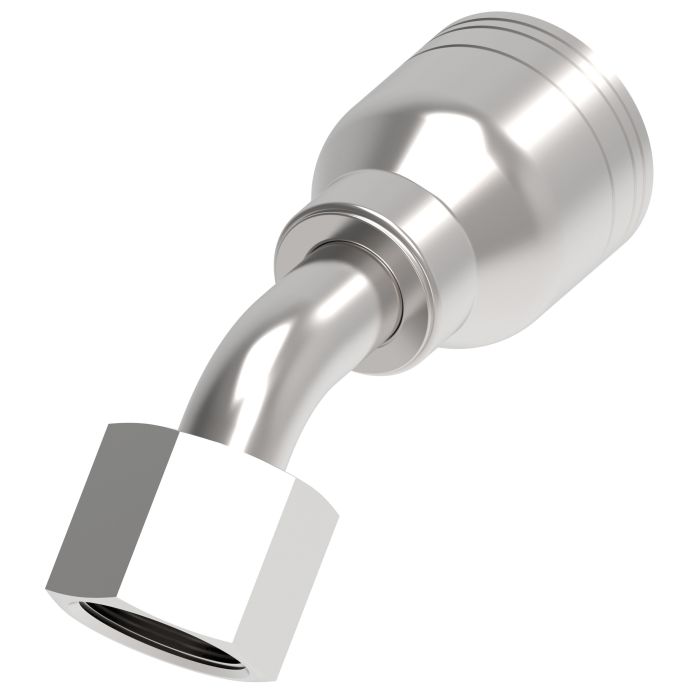

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow is engineered by Danfoss Power Solutions under the Aeroquip brand for general purpose low and medium pressure hydraulics. Suited for applications where shock hazards exist, it is designed to ensure reliable performance with H277 or H435 hoses.

This fitting features a 13/16-16 female O-ring face seal swivel and accommodates a -08 hose. The 45-degree elbow construction allows for flexibility in tight spaces.

Thread sealant is not required for this product, and it boasts a drop dimension of 0.5900 inches. The end types available include ORS and Line/Hose/Tube, ensuring versatile connectivity.

The product aligns well with the segment code seg_code_a and features an end size of 0.8125 inches on one end and 0.5 inches on the other.

MPN: EAR99

Supplier Part Number: 1AA8FRA8

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
D
1.79
Drop Dimension
0.59
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.81
End Size 2
0.50
End Type 1
ORS
End Type 2
Line/Hose/Tube
H
0.59 in
Hose Size
-08
Mandrel Required
No
Supplier Part Number
1AA8FRA8
Thread 1
13/16-16
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AQ72, Alternate Part Number MI-00302828, Alternate Part Number MINO-00015F51684
Product Weight
0.30 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA4FRA4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.2

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA6FRA4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.38

0.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA6FRA6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.43

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (3)

Question by: Stan R on Jul 19, 2025, 4:36 PM
trying to replace a fitting on my -08 hose, is this the one with the ORFS swivel and a 45 elbow?
Answer by: Customer Support on Jul 21, 2025, 11:02 AM
For a match, look for these identifiers: it is a steel crimp fitting for -08 hose with a 45 degree elbow, and the female O-ring face seal swivel end uses 13/16-16 threads.
Question by: Phil R on Sep 19, 2025, 12:53 PM
got a -08 hose and need a 45 degree turn, is this the right crimp fitting for that?
Answer by: Customer Support on Sep 21, 2025, 6:16 AM
For a -08 hose, this fitting matches that size and gives you a 45 degree elbow to help make the turn in a tighter run. It is a steel TTC crimp fitting with a 13/16-16 female O-ring face seal swivel on the connection end.
Question by: Gene D on Aug 17, 2025, 4:46 PM
So, this fitting is made for general hydraulic stuff, right? Just wanna make sure I'm understanding it right.
Answer by: Customer Support on Aug 19, 2025, 6:04 AM
Correct. It's designed for general purpose low and medium pressure hydraulic applications where you might run into some shock hazards. It's made to work with H277 or H435 hoses in those situations.
