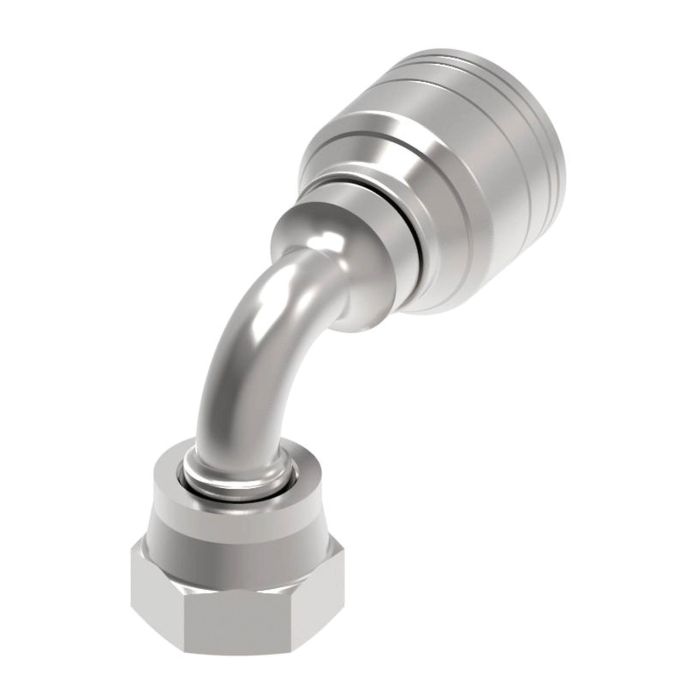

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

Ask A Question

Description & Features

Designed for low and medium pressure hydraulic applications this crimp fitting provides reliable performance in environments where shock hazards exist. Compatible with H277 or H435 hoses the fitting ensures a secure connection with its 13/16-16 female O-ring face seal swivel and -06 hose size.

MPN: C1AQ73

Supplier Part Number: 1AA8FRB6

Constructed from durable steel the fitting features a 90-degree elbow design and a drop dimension of 1.1500 inches. The female_1 end size is 0.8125 and the ORS end type ensures a robust seal. There is no need for a mandrel or thread sealant adding to its convenience in general-purpose hydraulic applications.

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.62 in
d Dimensions
1.62 in
Dimension Standards
SAE J1176
Dimensions
3.08 in L x 1.07 in W x 2.11 in H
Drop Dimensions
1.15 in
End Connection Torque
32 to 35 lb-ft
End Gender 1
Female
End Size 1
13/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
1.15 in
Hex Size
0.94 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA6FRB8 TTC Steel ORS Crimp Fitting

11/16-16

08

1.39 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA10FRB10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA12FRB12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.3 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 90 deg Elbow

1AA16FRB16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.87 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA4FRB4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

0.82 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA6FRB6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA8FRB8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.67 in

1.15 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 90 deg Elbow

1AA20FRB20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

3.57 in

2.51 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA10FRB8 TTC Steel ORS Crimp Fitting

1-14S

08

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA12FRB10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

2.29 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA16FRB12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

2.85 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA6FRB4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

0.9 in

Product Questions & Answers (1)

Question by: Hank K on Jul 12, 2025, 6:46 AM
trying to swap out a fitting on a -06 hose, is this one the female o-ring face seal swivel with 13/16-16 threads?
Answer by: Customer Support on Jul 13, 2025, 3:48 PM
It matches a -06 hose end and the female port side is a 13/16-16 female O-ring face seal (ORS) swivel, so it’s the right style when you need an ORS swivel connection on that thread size.
